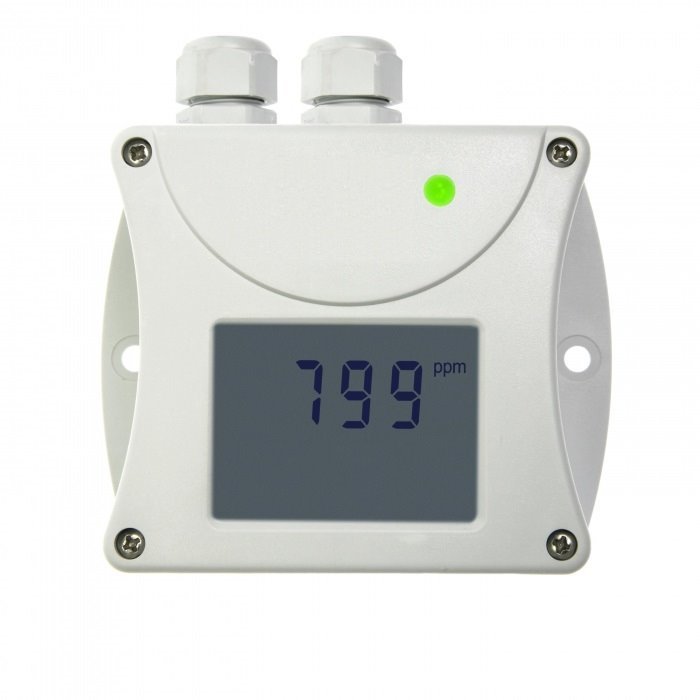

T5440 - CO2 SENSOR WITH OUTPUT RS 485 AND DISPLAY

T5440 - CO2 SENSOR WITH OUTPUT RS 485 AND DISPLAY

T5440 - CO2 SENSOR WITH OUTPUT RS 485 AND DISPLAY

CONFIGURATOR

CONFIGURE AND REQUEST

22675
__KOUPIT__
__NABIDKA__
__JINY DOTAZ__

BBB

--%>

CO2 concentration transmitter with 4-20mA output T5440 is built in a durable case. Output range is user adjustable. Large dual line LCD is an advantage. Display is possible to switch off. Computerized design ensures maximum long term stability and failure indication.

Measured CO2 concentration values are converted to RS485 serial output. Transmitter circuitry is galvanically isolated from power circuitry to prevent collision in RS485 network.

Method of CO2 sensor multipoint calibration leads to an excellent accuracy measurements of CO2 in the entire of operating temperature range. With this sensor is the device able to meet the demanding requirements for outdoor use. The measurement principle is based on the NDIR principle with dual wavelength, which automatically compensates for aging of the sensor. The sensor is resistant against the pollution and provides maintenance-free operation and excellent long-term stability.

Included in delivery:

  • T5440 sensor
  • Traceable calibration certificate
  • Quick start manual

Transmitter is also equipped with an alarm LED:

  • LED shines green - CO2 concentration 0 to 1000 ppm
  • LED shines yellow - CO2 concentration 1001 to 1200 ppm
  • LED shines red - CO2 concentration 1201 ppm and more
Accessories find here



Technické parametry

Type of sensor T5440
Output RS 485
Measured Value CO2
Lcd Display Yes
Range of CO2 concentration measurement 0 to 2000 ppm
Accuracy of CO2 concentration measurement ±(50 ppm +2 % from reading) at 25 °C and 1013 hPa
Optional range of CO2 concentration measurement 0 to 10000 ppm ±(100 ppm +5 % from reading) at 25 °C and 1013 hPa
Measuring interval of CO2 15 s
Temperature operating range -30 to 60 °C
Communication protocol ModBus RTU, ARION and Advantech ADAM compatible protocol
Communication speed 110 to 115200 Bd
Ingress protection IP 30
Power supply
9 to 30 Vdc,power consumption approximately 1W
Dimensions 88.5 x 94 x 39.5 mm (W x H x D)
Weight approximately 145 g

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

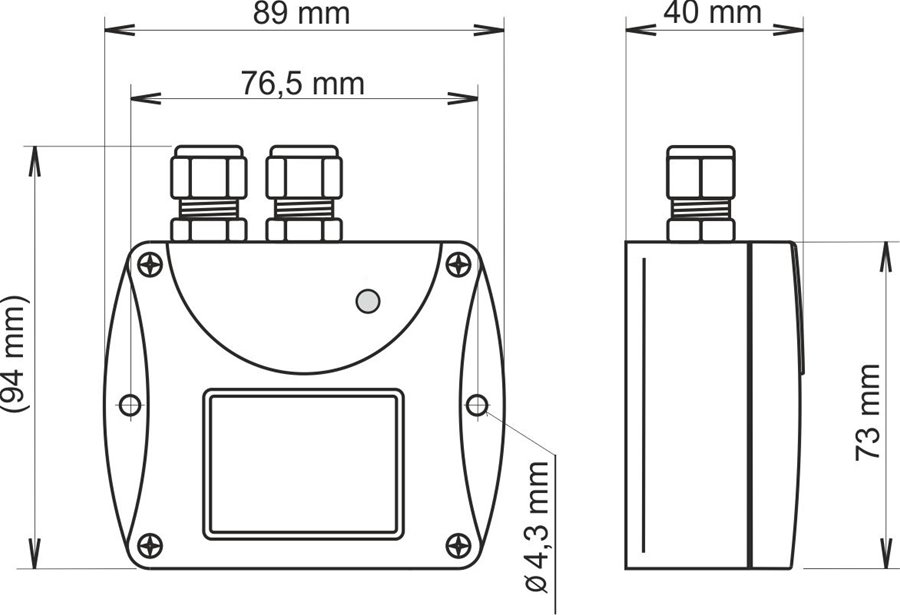

Rozměrový náčrt

Schéma zapojení

Modifikace

Soubory ke stažení
