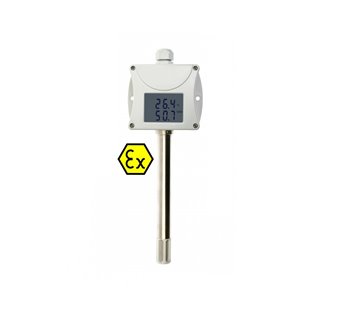

T3113Ex INTRINSICALLY SAFE HUMIDITY AND TEMPERATURE DUCT TRANSMITTER WITH 4 to 20 mA OUTPUT

T3113Ex INTRINSICALLY SAFE HUMIDITY AND TEMPERATURE DUCT TRANSMITTER WITH 4 to 20 mA OUTPUT

T3113Ex INTRINSICALLY SAFE HUMIDITY AND TEMPERATURE DUCT TRANSMITTER WITH 4 to 20 mA OUTPUT

CONFIGURATOR

CONFIGURE AND REQUEST

23081
__KOUPIT__
__NABIDKA__
__JINY DOTAZ__

BBB

--%>

ATEX certified humidity and temperature transmitter T3113Ex. Use in potentially explosive atmosphere. Duct mount.

Relative humidity, temperature sensors at 150mm stem. Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio, specific enthalpy.

ATEX certification for use in potentially explosive environments.

INCLUDED IN DELIVERY:

  • T3113Ex
  • Instruction Manual
  • Traceable Calibration Certificate
  • FREE software TSensor for Configuring of the Transmitter

Technické parametry

Sensor typeT3113Ex
Measured valueTemperature
Relative humidity
Counted values (dew point…)
TEMPERATURE SENSOR

Measuring range
-30 to +125 °C
Accuracy
±0.4 °C
Resolution
0.1 °C
HUMIDITY SENSOR
Measuring range
0 to 100 % RH
Accuracy
±2.5 % RH from 5 to 95 % at 23 °C
Resolution
0.1% RH
DEW POINT
Measuring range
-60 to +80 °C
Accuracy
±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution
0.1 °C
ATEX CERTIFICATION
Certificate
FTZÚ 13 ATEX 0189X
Marking
EX ll 3G Ex ic llC T6 Gc
MAIN TECHNICAL DATA
Operating temperature
-30 to +60 °C
Channels
internal temperature and humidity sensor
Counted values
dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
Output
4-20 mA, galvanic isolated
Range of humidity sensor temperature compensation
all temperature range
Configuration of output
user adjustable from PC; measured range + value
Power
9-30 Vdc
Protection class
IP65 electronics; IP40 sensors
Dimensions
88,5 x 250 x 39,5 mm; stem length 150 mm
Weight
approx. 150 g

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.
