T3111 - TEMPERATURE AND HUMIDITY SENSOR +Tdp cable probe, output 4-20mA

Nacházíte se:

CONFIGURATOR

CONFIGURE AND REQUEST

31122

BBB

--%>

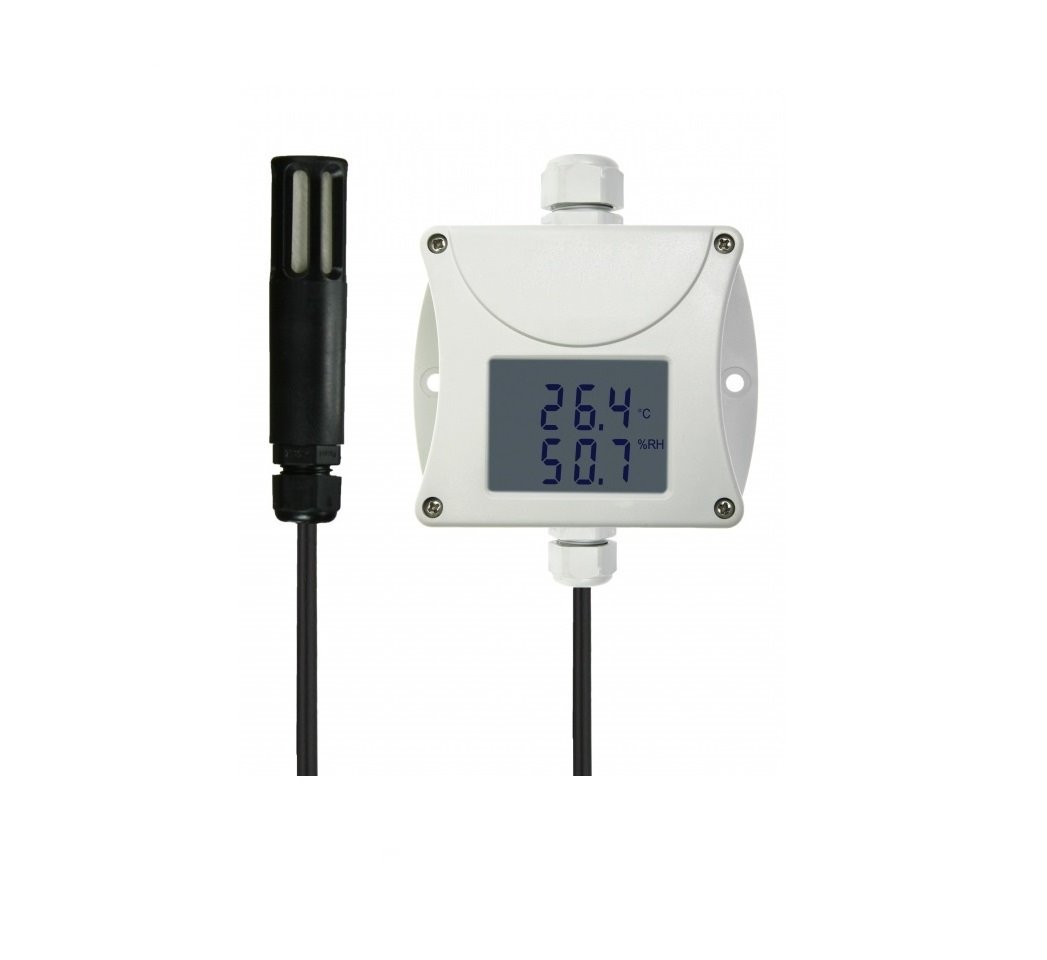

Humidity and temperature sensor T3111 for outdoor and indoor use.

Relative humidity, temperature sensors at probe on the cable. Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio, specific enthalpy.

The device is supplied with T+RH probe with 1 meter cable.

INCLUDED IN DELIVERY:

T3111
Instruction Manual
Traceable Calibration Certificate
FREE software TSensor for Configuring of the Transmitter

Technické parametry

Sensor type	T3111
Measured value	Temperature Relative humidity Counted values (dew point…)
TEMPERATURE SENSOR
Measuring range	-30 to +105 °C
Accuracy	±0.4 °C
Resolution	0.1 °C
HUMIDITY SENSOR
Measuring range	0 to 100 % RH
Accuracy	±2.5 % RH from 5 to 95 % at 23 °C
Resolution	0.1% RH
DEW POINT
Measuring range	-60 to +80 °C
Accuracy	±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution	0.1 °C
MAIN TECHNICAL DATA
Operating temperature	-30 to +80 °C
Channels	1x connectable temperature+humidity probe
Counted values	dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
Output	4-20 mA, galvanic isolated
Range of humidity sensor temperature compensation	all temperature range
Configuration of output	user adjustable from PC; measured range + value
Power	9-30 Vdc
Protection class	IP65 electronics; IP40 sensors

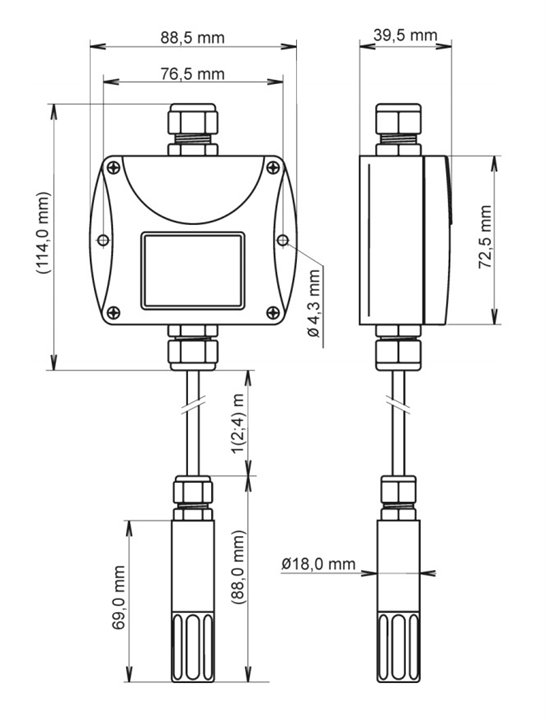

Dimensions	88,5 x 145 x 39,5 mm; length/diameter of external probe 88/18 mm
External probe cable length	1 meter
Weight	approx. 210 g

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.
