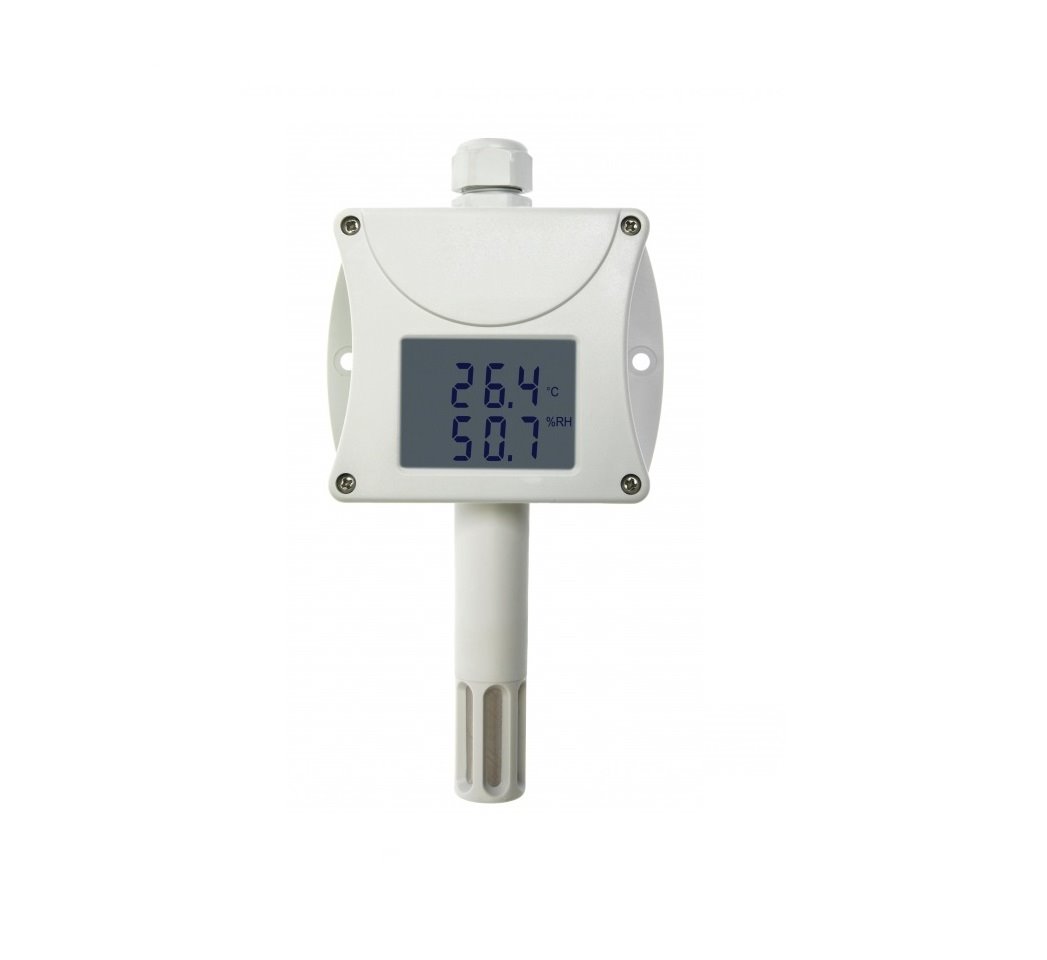

T3110 - TEMPERATURE AND HUMIDITY OUTDOOR, INDOOR PROBE WITH 4-20mA OUTPUT

Nacházíte se:

CONFIGURATOR

CONFIGURE AND REQUEST

31114

BBB

--%>

Ambient temperature and relative humidity sensor T3110. Weather sensor for environment monitoring. Outdoor, indoor use.

Built-in relative humidity, temperature sensors. Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio, specific enthalpy.

INCLUDED IN DELIVERY:

T3110
Instruction Manual
Traceable Calibration Certificate
FREE software TSensor for Configuring of the Transmitter

Technické parametry

Sensor type	T3110
measured value	Temperature Relative humidity Counted values (dew point…)
TEMPERATURE SENSOR
Measuring range	-30 to +80 °C
Accuracy	±0.4 °C
Resolution	0.1 °C
HUMIDITY SENSOR
Measuring range	0 to 100 % RH
Accuracy	±2.5 % RH from 5 to 95 % at 23 °C
Resolution	0.1% RH
DEW POINT
Measuring range	-60 to +80 °C
Accuracy	±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution	0.1 °C
MAIN TECHNICAL DATA
Operating temperature	-30 to +80 °C
Channels	internal temperature and humidity sensor
Counted values	dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
Output	4-20 mA, galvanic isolated
Range of humidity sensor temperature compensation	all temperature range
Configuration of output	user adjustable from PC; measured range + value
Power	9-30 Vdc
Protection class	IP65 electronics; IP40 sensors
Dimensions	88.5 x 170 x 39.5 mm; stem length 75 mm
Weight	approx. 150 g

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

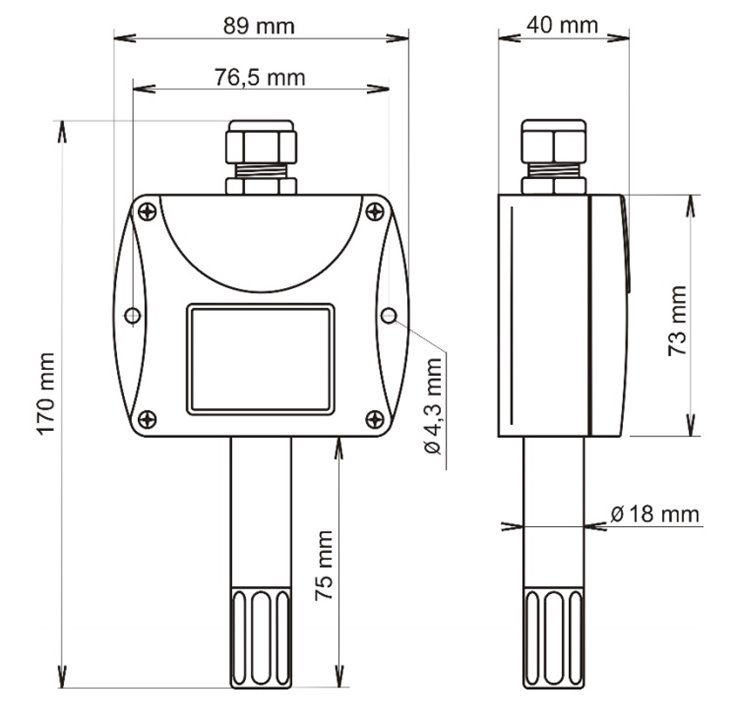

Rozměrový náčrt
