T0213 - TEMPERATURE AND HUMIDITY DUCT PROBE WITH 0-10V OUTPUT

T0213 - TEMPERATURE AND HUMIDITY DUCT PROBE WITH 0-10V OUTPUT

T0213 - TEMPERATURE AND HUMIDITY DUCT PROBE WITH 0-10V OUTPUT

CONFIGURATOR

CONFIGURE AND REQUEST

31143
__KOUPIT__
__NABIDKA__
__JINY DOTAZ__

BBB

--%>

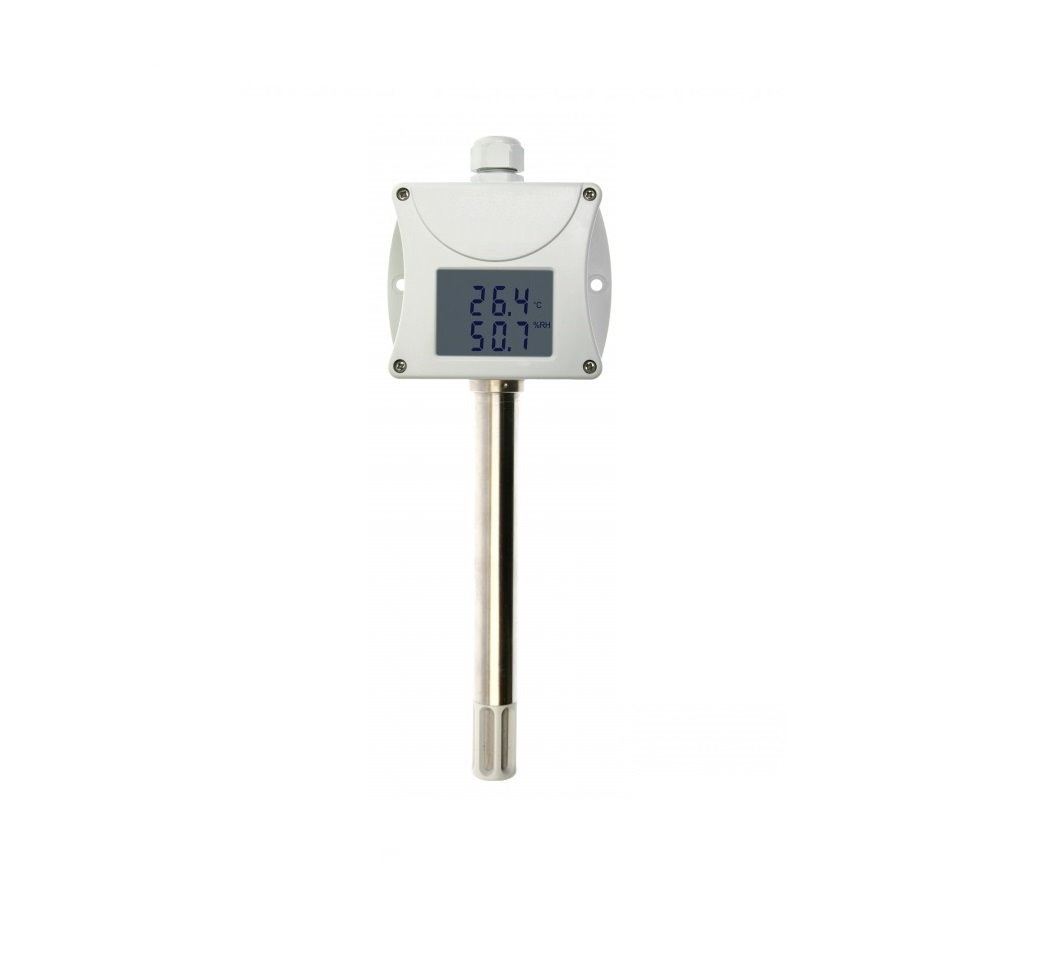

Humidity and temperature sensor T0213 for outdoor and indoor use. Duct mount.

Relative humidity, temperature sensors at 150mm stem. Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio, specific enthalpy.

INCLUDED IN DELIVERY:

  • T0213
  • Instruction Manual
  • Traceable Calibration Certificate
  • FREE software TSensor for Configuring of the Transmitter



Technické parametry

Sensor type
T0213
Measured value Temperature
Relative humidity
Counted values (dew point…)
TEMPERATURE SENSOR
Measuring range
-30 to +125 °C
Accuracy
± 0.4 °C
Resolution
0.1 °C
HUMIDITY SENSOR
Measuring range
0 to 100 % RH
Accuracy
± 2.5 % RH from 5 to 95 % at 23 °C
Resolution
0.1% RH
DEW POINT
Measuring range
-60 to +80 °C
Accuracy
± 1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution
0.1 °C
MAIN TECHNICAL DATA
Operating temperature
-30 to +80 °C
Channels
internal temperature and humidity sensor
Counted values dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
Output
0 - 10 V
Range of humidity sensor temperature compensation all temperature range
Configuration of output
user adjustable from PC; measured range + value
Power
15-30 Vdc; 24 Vac
Protection class
IP65 electronics; IP40 sensors
Dimensions
88,5 x 250 x 39,5 mm; stem length 150 mm
Weight
approx. 150 g

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer

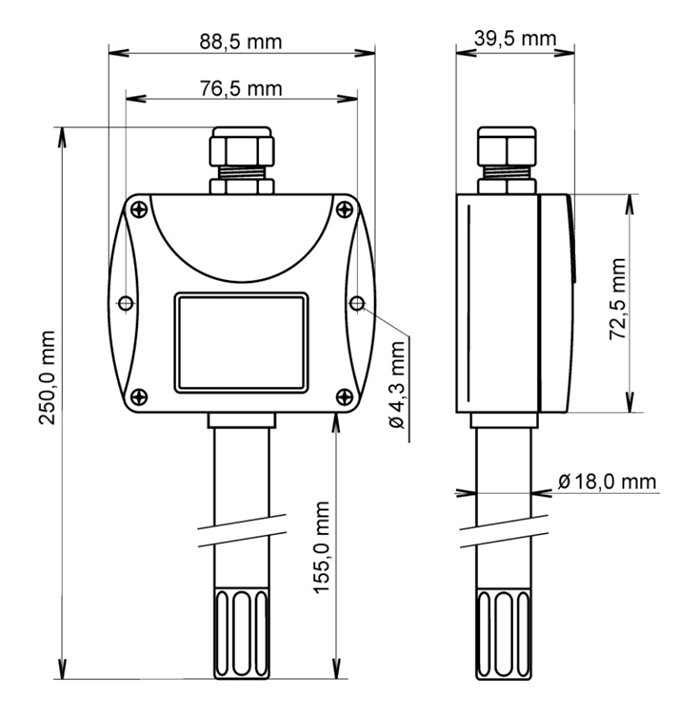

Rozměrový náčrt

Schéma zapojení

Modifikace

Soubory ke stažení
