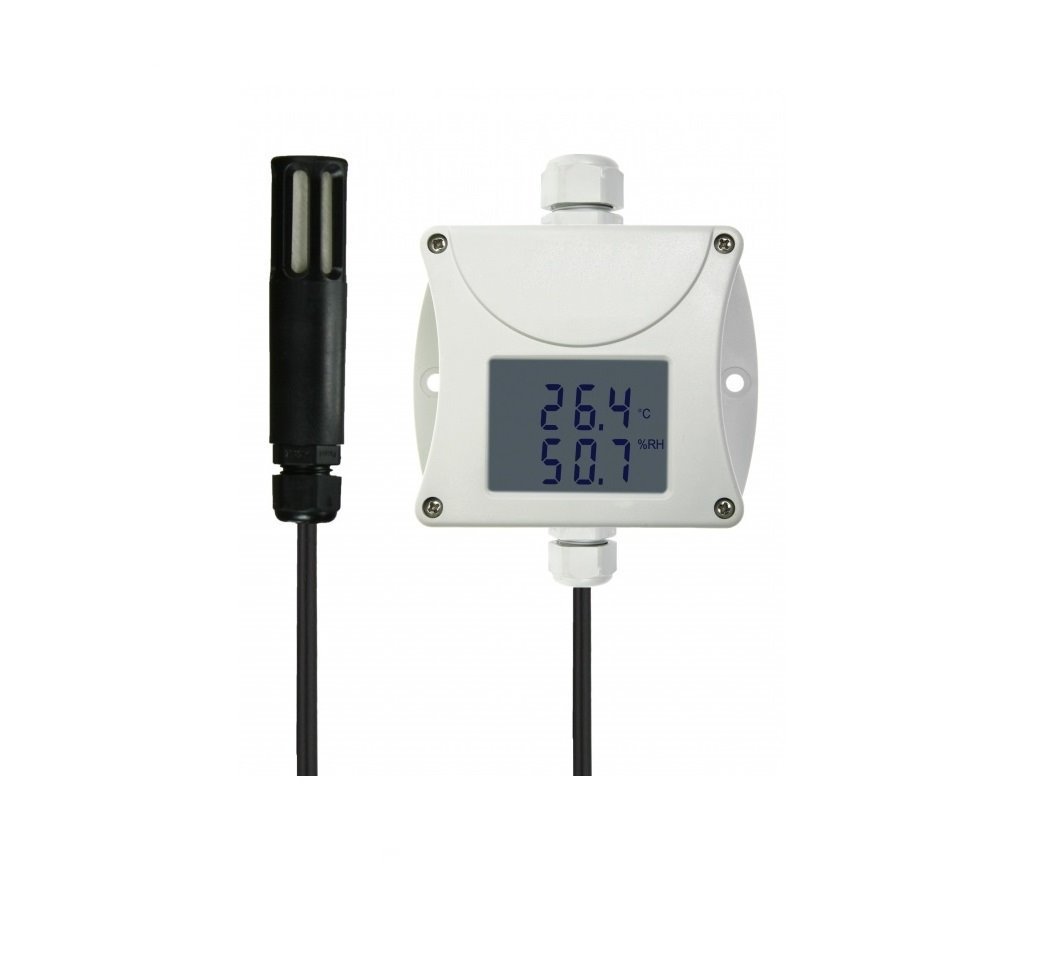

Humidity and temperature sensor T0211 for outdoor and indoor use.

Humidity, temperature probe on a cable. Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio, specific enthalpy.

The device is supplied with T+RH probe with 1 meter cable.

INCLUDED IN DELIVERY:

  • T0211
  • Instruction Manual
  • Traceable Calibration Certificate
  • FREE software TSensor for Configuring of the Transmitter


Technické parametry

Sensor typeT0211
Measured valueTemperature
Relative humidity
Counted values (dew point…)
TEMPERATURE SENSOR

Measuring range
-30 to +105 °C
Accuracy
±0.4 °C
Resolution
0.1 °C
HUMIDITY SENSOR
Measuring range
0 to 100 % RH
Accuracy
±2.5 % RH from 5 to 95 % at 23 °C
Resolution
0.1% RH
DEW POINT
Measuring range
-60 to +80 °C
Accuracy
±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution
0.1 °C
MAIN TECHNICAL DATA
Operating temperature
-30 to +80 °C
Channels
1x connectable temperature+humidity probe
Counted values
dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
Output
0 - 10 V
Range of humidity sensor temperature compensation
all temperature range
Configuration of output
user adjustable from PC; measured range + value
Power
15-30 Vdc; 24 Vac
Protection class
IP65 electronics; IP40 sensors
Dimensions
88,5 x 145 x 39,5 mm; length/diameter of external probe 88/18 mm
External probe cable length
1 meter
Weight
approx. 210 g

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

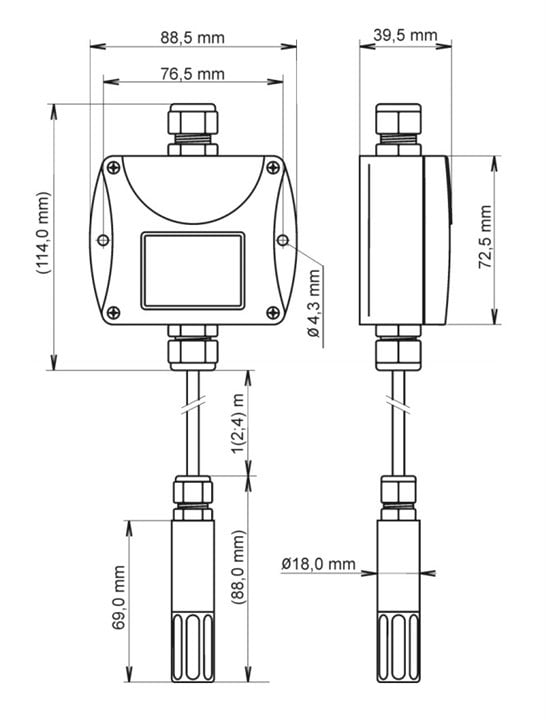

Rozměrový náčrt
