SP014 - Adapter for external supply of IoT sensor

SP014 - Adapter for external supply of IoT sensor

SP014 - Adapter for external supply of IoT sensor
On request

BBB

--%>

The SP014 adapter is designed to be used as an accessory for battery powered transducer with radio output to Sigfox net (Wx8xx series).

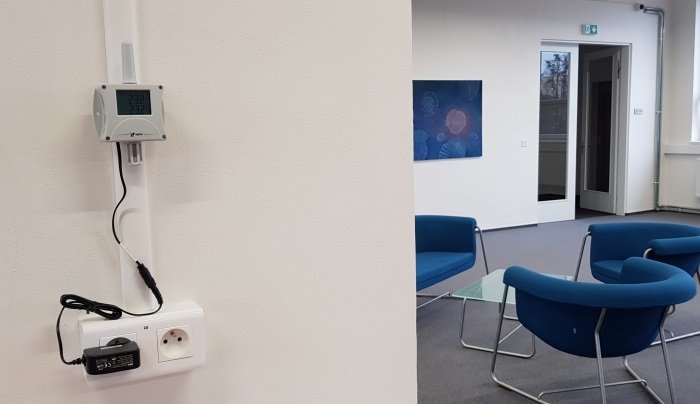

When installed in place of an existing battery, the transducer will be extended with an external power input. The transducer can then be powered from a 5V DC power adapter, an external large capacity battery, or a suitable solar battery system with a backup battery. The transducer with mounted adapter is designed for indoor or covered environment.


Technické parametry

Product typeSP014
Input voltage  3.6 V to 14.5 V DC (5 V by default)
Output voltage
3.6 V DC
Continuous output current
max. 1 mA at supply 14.5 V
max. 7 mA at supply 5 V
Peak output current
max. 150 mA
Output current limitation
cca 300 mA
Continuous power dissipation
max. 10 mW
Own consumption at 20 μA
3 μA at supply > 3.6 V
25 μA at supply < 3.6 V (eg a discharged external battery)
Wx8xx transducer start delay
max. 10 s after power supply connection
Short circuit protection of output
yes
Thermal overload protection yes
Reverse polarity protection
no
Power connector
coaxial 2.1 x 5.5 mm socket at cable approx. 20 cm long
IP protection
IP65, power connector IP20
Operating temperature
-20 to +50 °C (the supply cable must be secured against movement at an ambient temperature below 0 °C)
Maximum supply cable length
max. 10 m

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.
