Skew welded-on piece
Skew welded-on piece

CONFIGURATOR

CONFIGURE AND REQUEST

21678
__KOUPIT__
__NABIDKA__
__JINY DOTAZ__

BBB

--%>

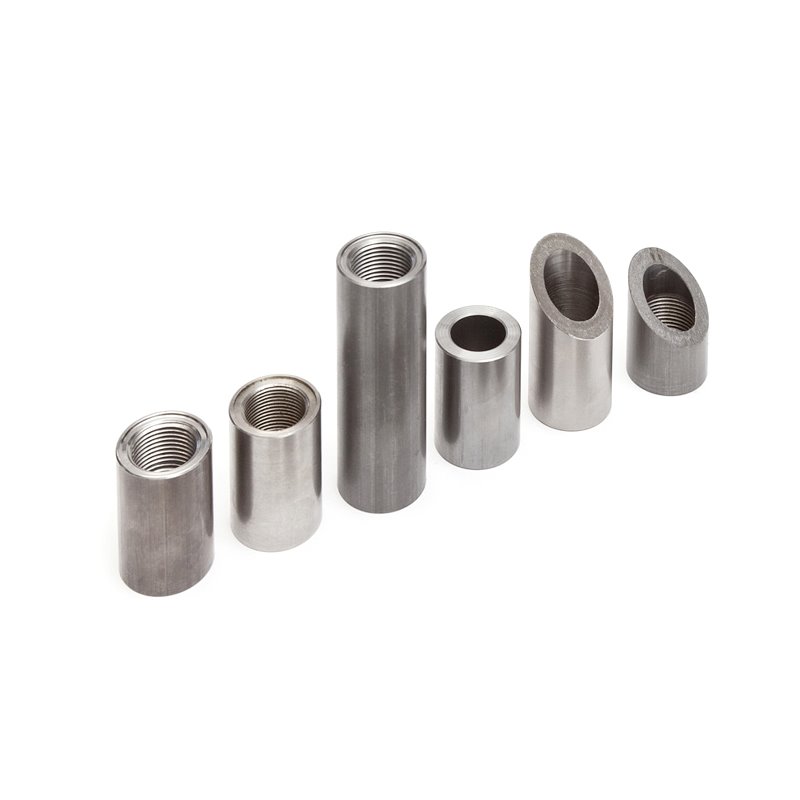

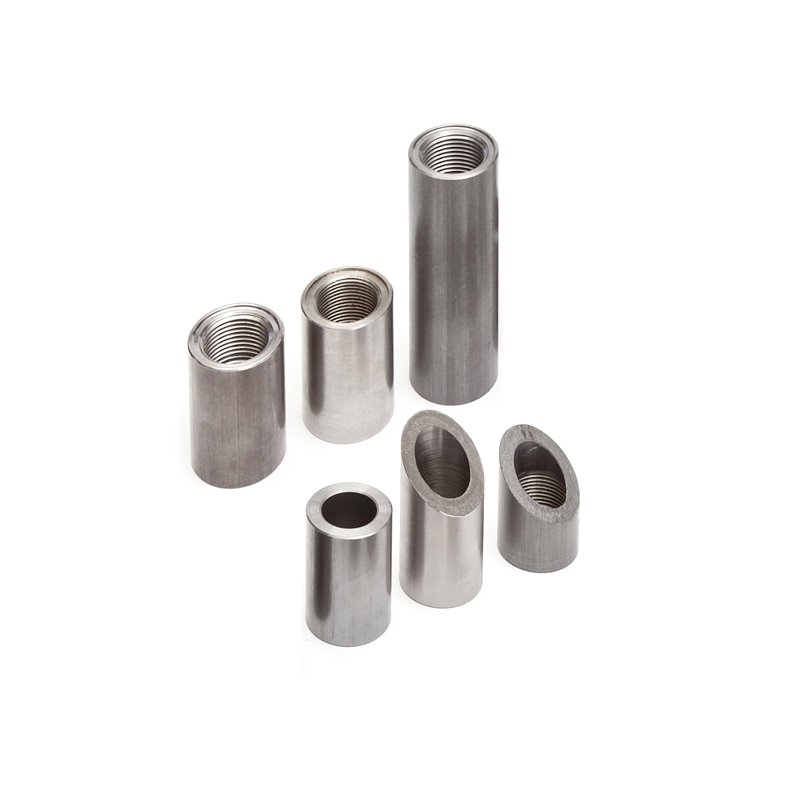

Skew welded-on piece is designed for direct mounting in pipes or for direct measuring by temperature sensor in medium.

We standardly produce the welded-on pieces of a material stainless steel DIN 1.4301 or iron DIN 1.0254.

The most commonly used threads are G 1/2 "and M 20 x 1.5.

Based on customer requirements we can change the dimensions of the welded-on pieces, the material used and threads.

Technické parametry

Type Skew welded-on piece
Standard material
stainless steel DIN 1.4301 or iron DIN 1.0254
Diameter 28 mm
Standard length L 50 a 70 mm
Standard thread
G 1/2"; M 20 x 1.5
Modification
based on customer requirements we can change the dimensions of the welded-on pieces, the material used and threads



Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

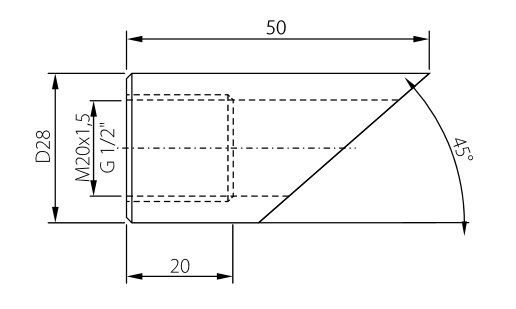

Rozměrový náčrt

Schéma zapojení

Modifikace

Soubory ke stažení

040.11en.pdf 040.11en.pdf
