SD 106 - TEMPERATURE SENSOR WITH A DIGITAL OUTPUT FOR INTERIORS

SD 106 - TEMPERATURE SENSOR WITH A DIGITAL OUTPUT FOR INTERIORS

TSic (ZAC-wire)

SD 106 - TEMPERATURE SENSOR WITH A DIGITAL OUTPUT FOR INTERIORS
On request

BBB

--%>

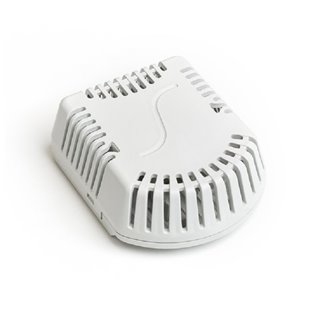

This temperature sensor with a digital output ZACwire / TSic x06 - SD 105 for interiors is designed for temperature measurement of gaseous substances in water-protected areas – e.g. for temperature measurement in rooms (schools, theatres, lecture halls, etc.), offices, interiors of residential houses or even production halls. Suitable design and high-quality material ensure that the sensor does not feel disturbing even in the interiors with high aesthetic requirements. You can choose the color of the box white or gray.

The temperature sensor with a digital output ZACwire / TSic x06 - SD 105 for interors consist of a plastic ribbing head, where a printed circuit board with the individual sensors or a converter is placed to establish a particular digital output according to the type of a sensor.

The temperature range of sensor use is defined in the table of technical parameters for the individual versions of sensors. The sensors meet the ingress protection of IP 30 according to EN 60529, as amended. Installation is recommended on an inner wall at the height of 1.5 m, in areas of movement of persons, at places not exposed to direct sunlight and not influenced by heat from walls, heating radiators or lighting.

The sensor is designed to be operated in a chemically non-aggressive environment, the use must be chosen with regard to the temperature and chemical resistance of the sensor head.

DECLARATION, CERTIFICATES, CALIBRATION

  • Manufacturer provides EU Declaration of Conformity.
  • Calibration – The entire production passes through a final metrological inspection, which is carried out by comparing with standards or working measuring instruments. Continuity of the standards and working measuring instruments is ensured within the meaning of Section 5 of Act No. 505/1990 on Metrology. The manufacturer offers to supply the sensors calibrated in the SENSIT s.r.o. laboratory (according to requirements of the EN ISO/IEC 17025 standard, as amended) or in an accredited laboratory.

Technické parametry

Sensor type SD 106
Output signal ZacWire / TSic x06
Measuring range TSic 206 and 306 -30 to 100 °C
TSic 506 and 716 -10 to 60 °C
Measurement accuracy TSic 206 ± 0.5 °C in the range of 10 to 90 °C
TSic 306 ± 0.3 °C in the range of 10 to 90 °C
TSic 506 ± 0.1 °C in the range of 5 to 45 °C
TSic 716 ± 0.07 °C in the range of 25 to 45 °C
Supply voltage (U) 3 to 5.5 V DC
Rated supply voltage (Un) 3.3 V DC
Consumption / Supply current 30 µA
Ingress protection IP 30 in accordance with EN 60529, as amended
Working conditions TSic 206 and 306 -30 to 100 °C
TSic 506 and 716 -10 to 60 °C
relative air humidity: max 85 %
atmospheric pressure: 87 to 107 kPa
Dimensions of the head 71.9 x 59 x 27 mm
Material of the head LEXAN
Recommended wire cross-section 0.35 to 1.5 mm2
Weight min. 35 g

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

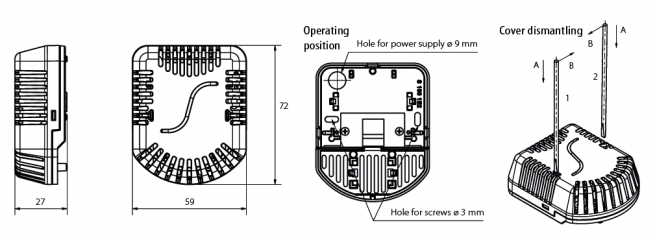

Rozměrový náčrt

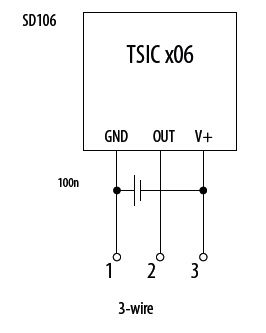

Schéma zapojení
