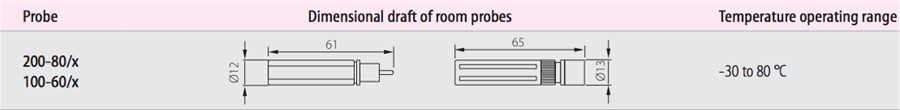

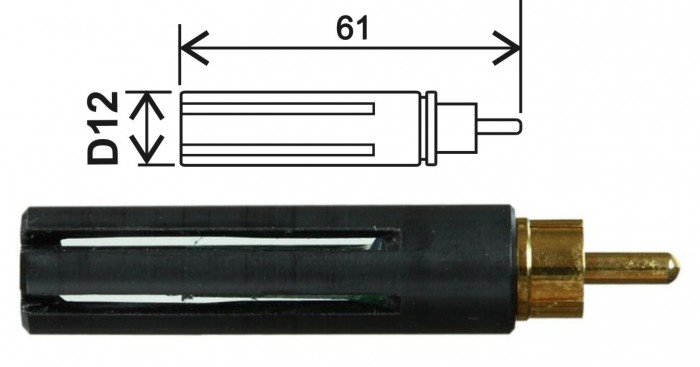

These temperature probes are intended for contact temperature measurement of gaseous substances. The s x042 probe is characterised by a metal case provided with openings, by a grip and a lead-in cable of a standard length of 1 m. Regarding to the materials used for its fabrication, the s x042 probe can be utilised to measure temperature in the food-processing industry. The resistance-type sensing element is placed in the probe portion provided with openings, whereby a direct contact to the gaseous substance to be measured, and a fast response to temperature changes are secured. The design of the individual probes is illustrated in the following drawings.
DECLARATION, CERTIFICATION, CALIBRATION
- Manufacturer provides EU Declaration of Conformity.
- Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard) or in an Accredited laboratory.
