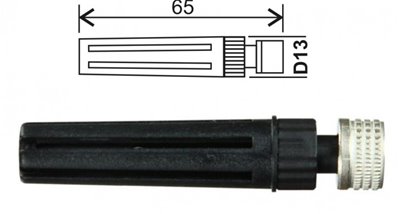

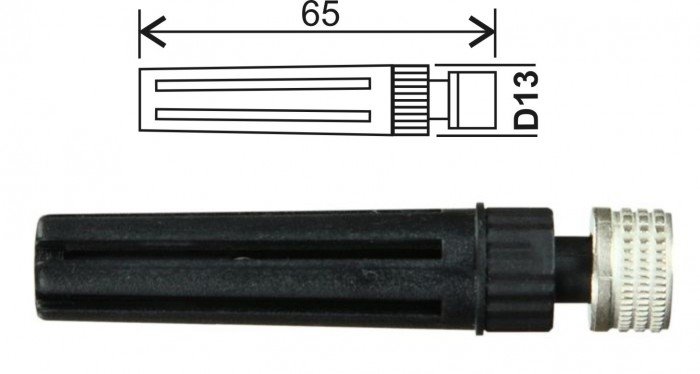

ROOM PROBES 100-60/x
ROOM PROBES 100-60/x

CONFIGURATOR

CONFIGURE AND REQUEST

21551
__KOUPIT__
__NABIDKA__
__JINY DOTAZ__

BBB

--%>

These temperature probes are intended for contact temperature measurement of gaseous substances. The s x042 probe is characterised by a metal case provided with openings, by a grip and a lead-in cable of a standard length of 1 m. Regarding to the materials used for its fabrication, the s x042 probe can be utilised to measure temperature in the food- processing industry. The resistance-type sensing element is placed in the probe portion provided with openings, whereby a direct contact to the gaseous substance to be measured, and a fast response to temperature changes are secured. The design of the individual probes is illustrated in the following drawings.

DECLARATION, CERTIFICATION, CALIBRATION

  • Manufacturer provides EU Declaration of Conformity.
  • Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard) or in an Accredited laboratory.



Technické parametry

Accuracy class Ni sensor: tř. B,Δt = ± (0.4 + 0.007t), for t≥ 0; Δt = ± (0.4 + 0.028|t|), for Pt sensor: tř. B according to EN 60751, Δt = ± (0.3 + 0.005|t|) in °C
NTC 20kΩ: ± 1 °C for range 0 to 70 °C
Max DC measuring current  Pt 100 - 3 mA; Pt 500 - 1.5 mA; Pt 1000, Ni 1000, Ni 891 - 1 mA;
NTC 20kΩ - max. input 1 mW
Probe connection  2-wire
Standard length of the cable 1, 2, 5, 10 m


Type of connector Ni 1000/5000, Ni 1000/6180, Pt 100, Pt 1000
Material of the cavity Nickel plated copper
Material of the metal case S x042 stainless steel1.4301
Material of the grip S x042 teflon
Type of connector 200-80/E ElKA K1321
200-80/C CINCH
Lead-in cable shielded silicone 2 x 0.22 mm2

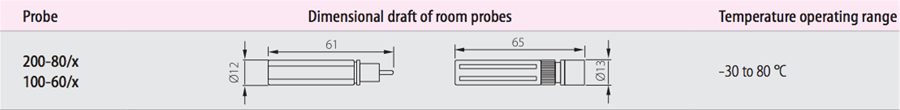

Rozměrový náčrt

Schéma zapojení

Modifikace

Soubory ke stažení

EN:ROOM PROBES 100-60/x EN:ROOM PROBES 100-60/x
