PROGRAMMABLE CONVERTERS FOR CABLES

PROGRAMMABLE CONVERTERS FOR CABLES

PROGRAMMABLE CONVERTERS FOR CABLES
On request

BBB

--%>

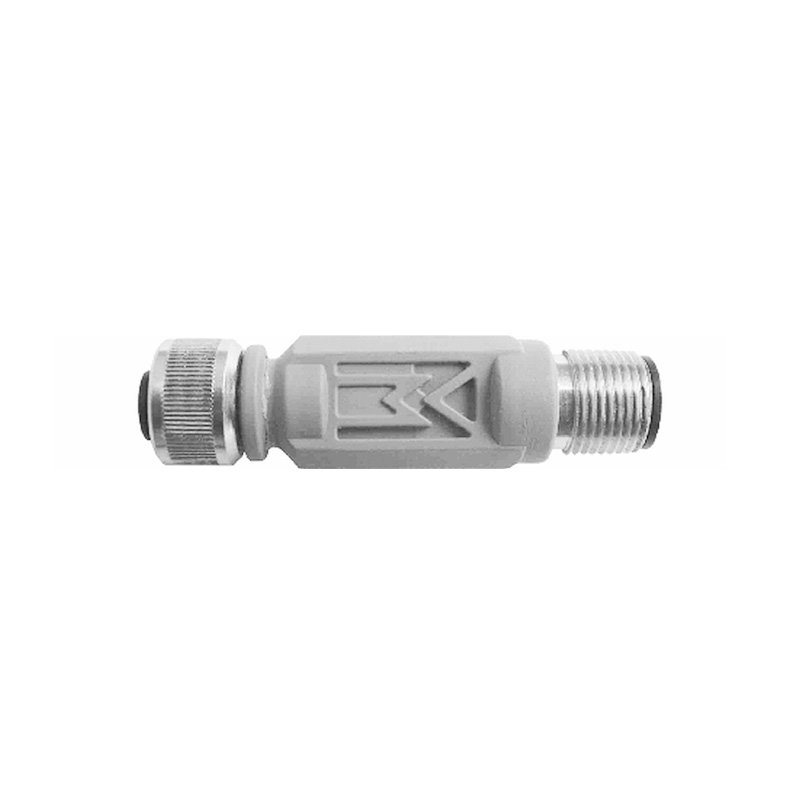

The programmable converter is designed for converting industrial signals from resistance temperature sensors PT 100/3850 into the unified signal of 4–20 mA. Its structure makes it suitable for connecting to cable sensors.

Technické parametry

Input Pt 100/3850
Input connection4wire
Connector M12 4-pin
Output 4 to 20 mA
Measuring range programmable, max. -50 °C to 800 °C, min.50 °C margin, manufacturer's basic setting 0 -150°C
Power supply 8.5 to 32 V
Accuracy 0.2 %
Size Diameter 14 mm, length 55 mm
Maximum operating temperature range -40 °C to 80 °C (for plastic body)



Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

Rozměrový náčrt

Schéma zapojení

Modifikace

Soubory ke stažení

201.04en.pdf 201.04en.pdf
