Technické parametry

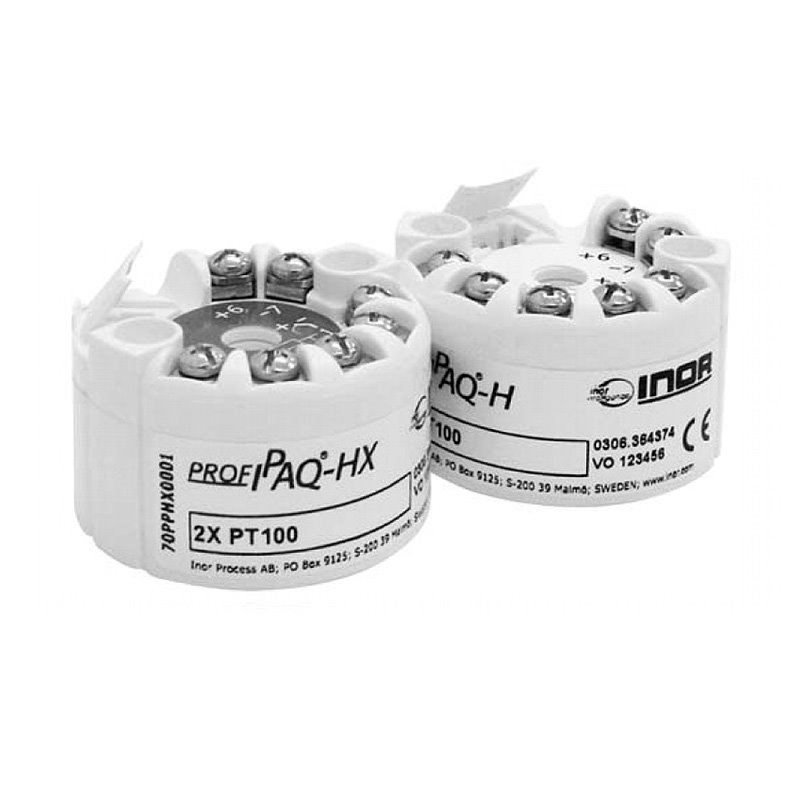

| Corverter type | PROFIPAQ-H/-HX |
| Use | PROFIPAQ-H/-HX are highly efficient and very resistant converters for thermometer heads |
| Input | Pt100, Pt1000, Ni100, Ni1000, potentiometer,
thermocouple B, E, J, L, T, K, N, R, S, U, |
| Output | Digital Profibus - up to 125 converters in one network |
| Measuring range | Programmable |
|
Accuracy | Pt100: ± 0.1 °C
|
|
|
| Maximum operating temperature range | -40 to 85 °C |
| Power supply | PROFIPAQ-H: 9 to 32 VDC, PROFIPAQ-HX: 9 to 17.5 VDC |
PROFIPAQ-HX: designed for explosive environments
Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.
Rozměrový náčrt
Schéma zapojení
