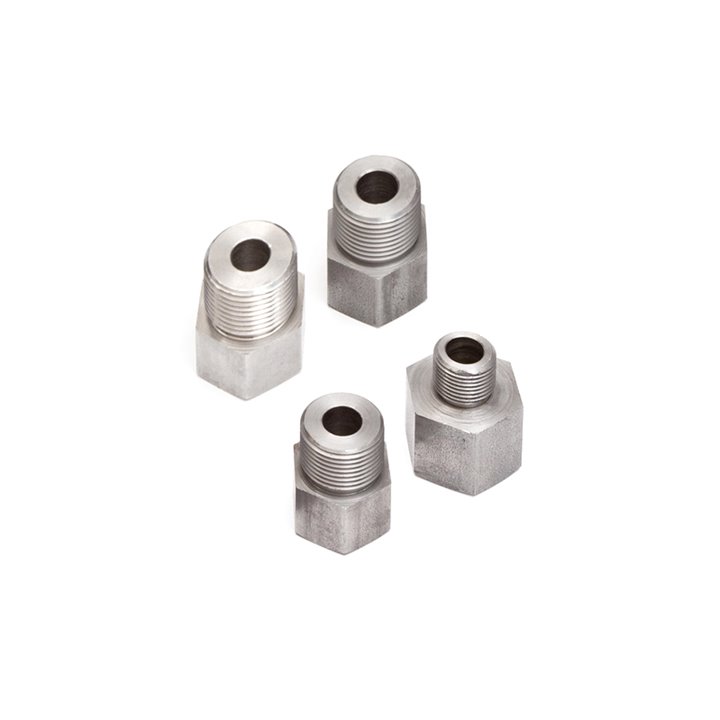

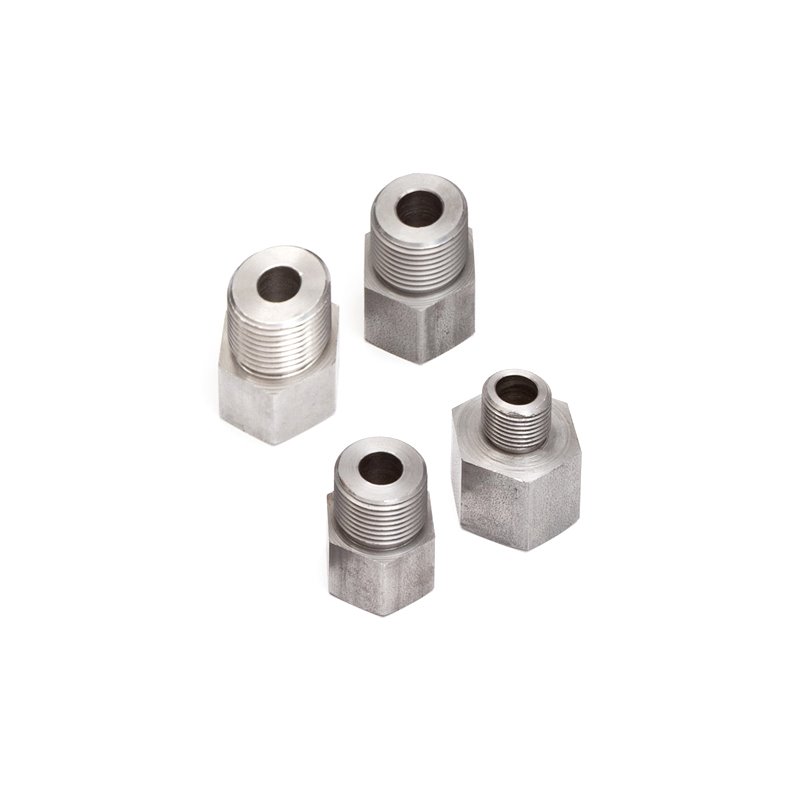

Pipe reducer
Pipe reducer

CONFIGURATOR

CONFIGURE AND REQUEST

21685
__KOUPIT__
__NABIDKA__
__JINY DOTAZ__

BBB

--%>

Pipe reducer is used for mounting the thermowell or temperature sensors for measurement directly in the medium. Due to the pipe reducer you can be  modify the threads in the application of the required thread.

Standard material is iron 11120.

The most commonly used inside threads are G 1/2 "and M 20 x 1.5 and outside thred  M 27 x 2.

Technické parametry

Type Reduction
Standard material iron 11120
Standard inside thread / OK G 1/2"; M 20 x 1.5 / OK 30
Length of inside thread 16 mm
Standard outside thread M 27 x 2
Length of outside thread 20 mm
Inside diameter D 11 mm
Modification based on customer requirements we can change the dimensions of the welded-on pieces, the material used and threads

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

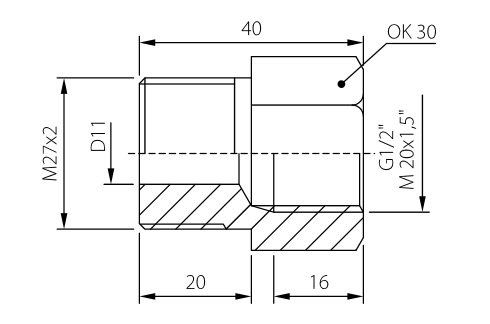

Rozměrový náčrt

Schéma zapojení

Modifikace

Soubory ke stažení

040.11en.pdf 040.11en.pdf
