OPTICAL LIQUID LEVEL SENSORS TO 100°C

OPTICAL LIQUID LEVEL SENSORS TO 100°C

OPTICAL LIQUID LEVEL SENSORS TO 100°C
On request

BBB

--%>

DESCRIPTION AND APPLICATION

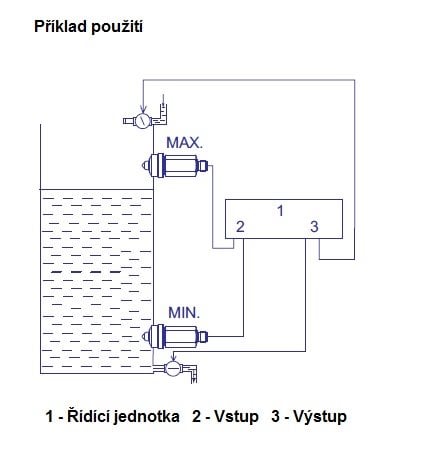

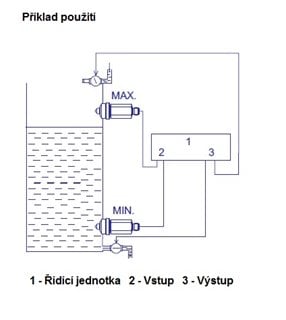

Optical liquid level sensors are intended for measurement, regulation and control of production in foodstuff (e.g. beverages production) or pharmaceutical industry. They are used also in applications of sensing of a tank filling or emptying, min. and max. liquid level detection, a pump dry run protection etc.

Accessories

Variants of optical liquid level sensors:

  • Type ,,A" - suitable for oil liquids (e.g. cooling emulsions, milk, etc.)
  • Type ,,B" - suitable for liquids with foam (e.g. beer, ,,cola" type drinks) and other neutral liquids (e.g. water, oil, crude, hydraulic oil).
  • Type "-" (without letter) - suitable for neutral liquids (e.g. water, oil, crude, hydraulic oil).

Technické parametry

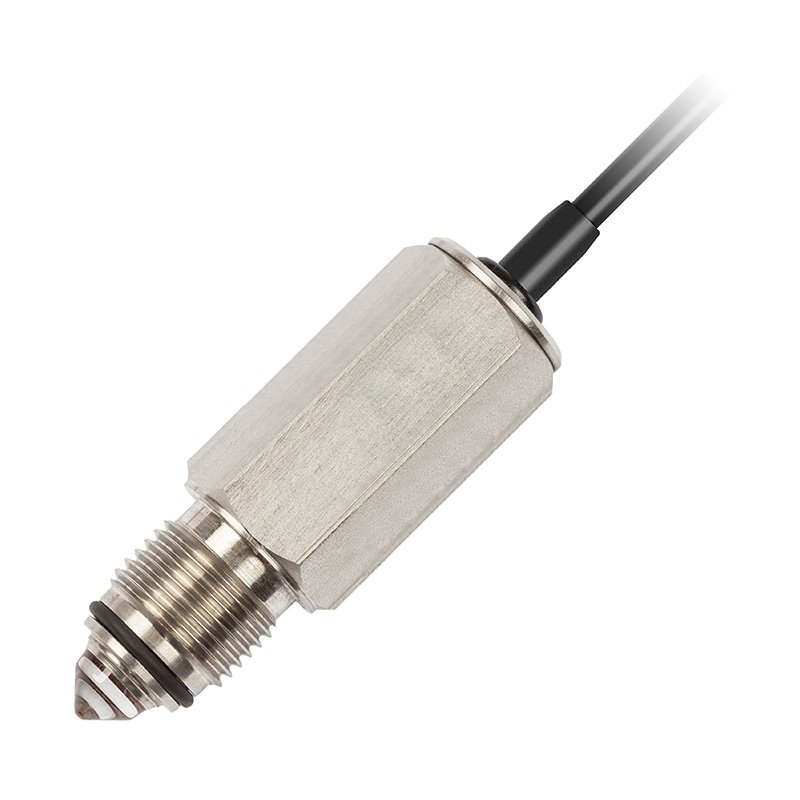

Sensor with cable

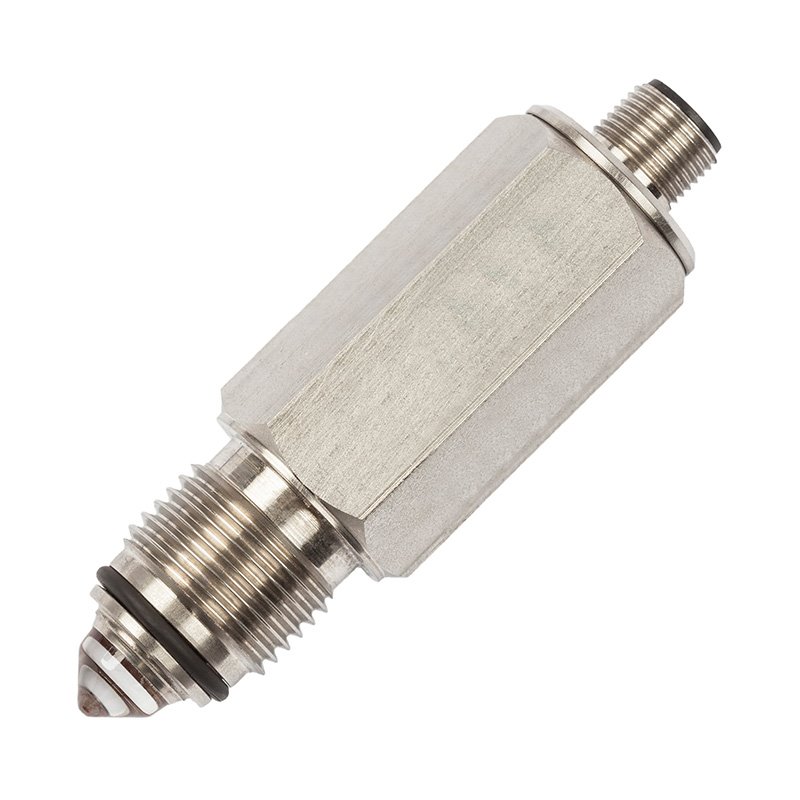

with connector
Nominal voltage Un
24 V DC
Power supply U
12 - 30 V DC
Supply current Ic
< 25 mA
Output current Iz
≤ 200 mA
Output indicator
LED
Reversed polarity protection
YES
Switching distance (% of a dipped setting tip)
<approximately 50 %
Switching frequency
35 Hz
Measuring range
-25 °C to 100 °C - temperature in a process
-25 °C to 80 °C - ambient temperature

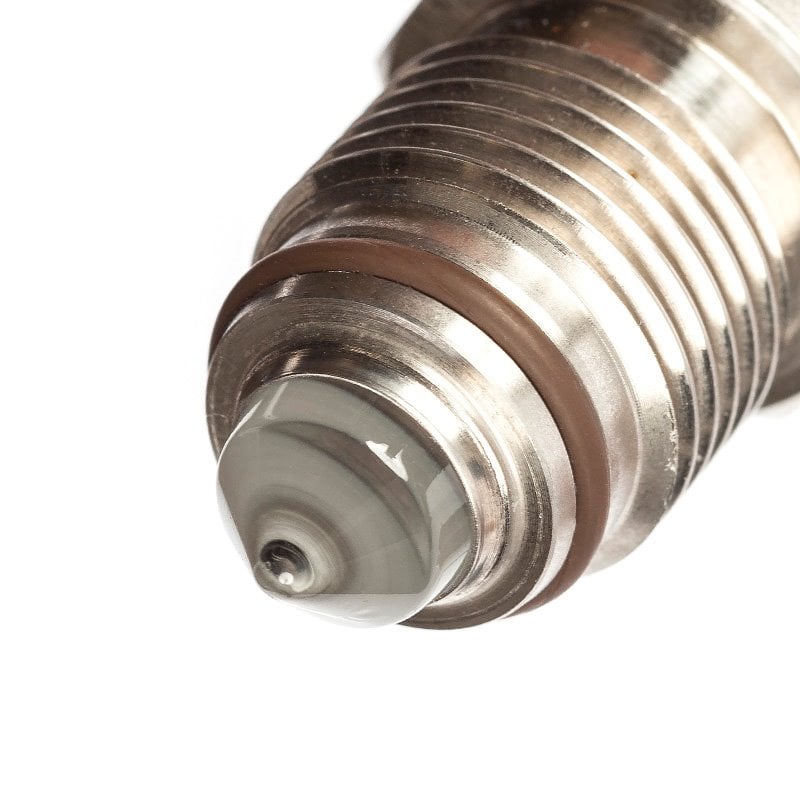

Case material /sensing tip
stainless steel / borosilicate glass
Maximum operating pressure
2 MPa
Ingress protection
IP 68 IP 67
Connection type
cable PVC 3 x 0.25 mm2; 2 m connector M12

Variants of optical liquid level sensors:

Type ,,A" - suitable for oil liquids (e.g. cooling emulsions, milk, etc.)
Type ,,B" - suitable for liquids with foam (e.g. beer, ,,cola" type drinks) and other neutral liquids (e.g. water, oil, crude, hydraulic oil).

Type "-" (without letter) - suitable for neutral liquids (e.g. water, oil, crude, hydraulic oil).

Order reference number
Output With cable With connector
TYPE "A" TYPE "B" TYPE "A" TYPE "B"
NPN n.o.
POS 187 3/6 311 A POS 187 3/6 311 B POS 187 3/6 411 A POS 187 3/6 411 B
n.c. POS 187 3/6 312 A POS 187 3/6 312 B POS 187 3/6 412 A POS 187 3/6 412 B
PNP n.o. POS 187 3/6 313 A POS 187 3/6 313 B POS 187 3/6 413 A POS 187 3/6 413 B
n.c. POS 187 3/6 314 A POS 187 3/6 314 B POS 187 3/6 414 A POS 187 3/6 414 B

Note: The material of the housing is indicated in the name by the letter 3 (SS303 steel version) or 6 (SS316L steel version).

Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

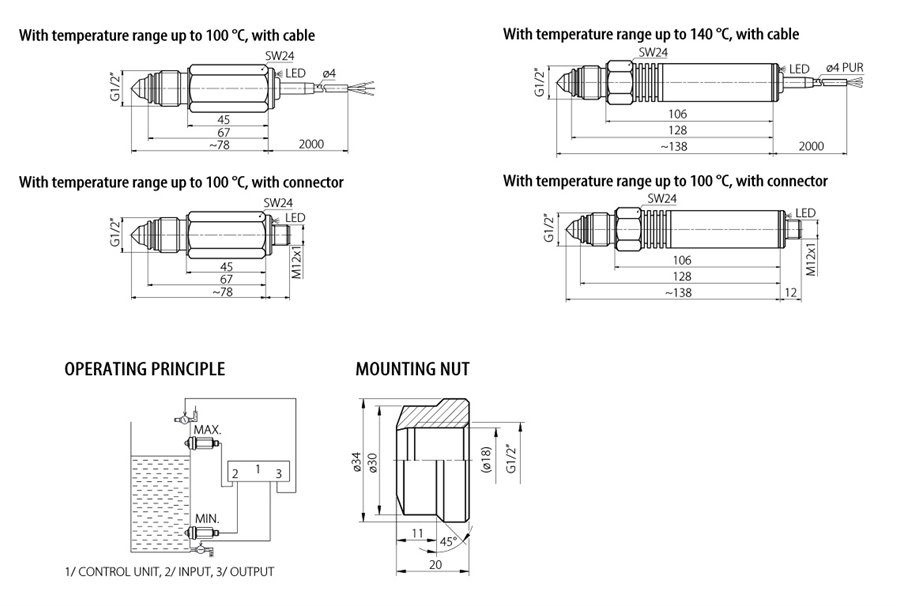

Rozměrový náčrt

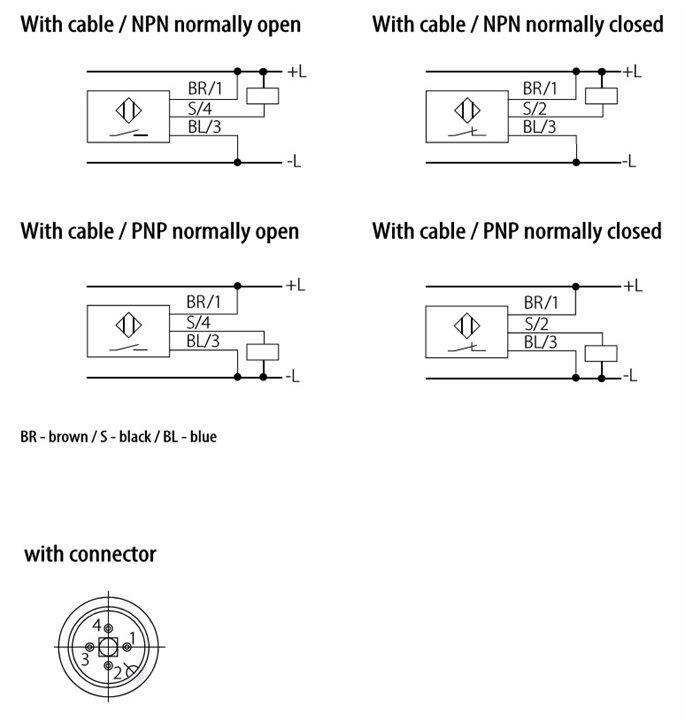

Schéma zapojení

Modifikace

Soubory ke stažení

210.02en.pdf 210.02en.pdf
