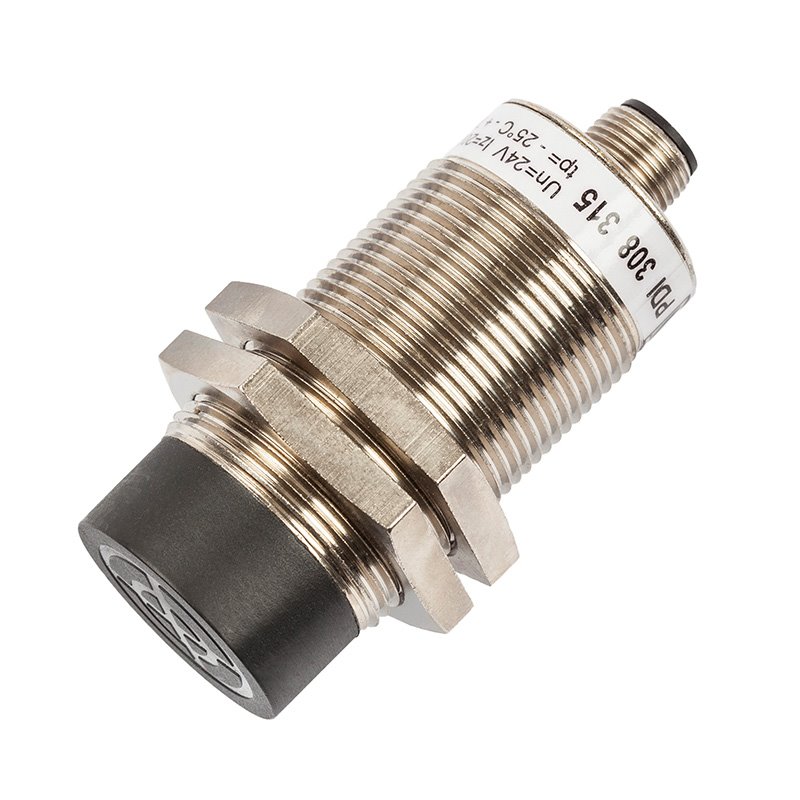

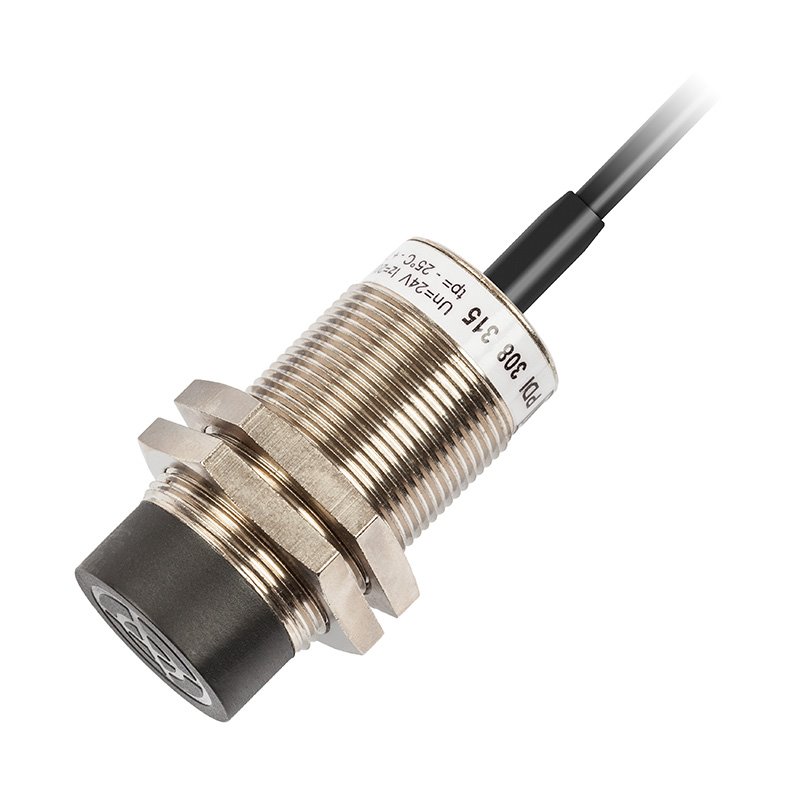

Non-flush inductive proximity switches
PDI M30 3wire

Non-flush inductive proximity switches
PDI M30 3wire

Non-flush inductive proximity switches
PDI M30 3wire

CONFIGURATOR

CONFIGURE AND REQUEST

21933
__KOUPIT__
__NABIDKA__
__JINY DOTAZ__

BBB

--%>

Inductive proximity switches are used for the monitoring of the presence or metal objects. Depending on the switch mode (normylly open/normally closed), the output closes or opens, when the conductive object approaching the active switching zone.

Operation - is maintenance-free. For a fault free operation it is however necessary to keep the following principles: Surfaces of the active switching zone have to be kept free, clean. It is necessary to prevent sediments and other foreign particles from touching and setting up the active surface of the sensor, especially when mounted in upright position (active surface upwards). High electromagnetic field intensity devices (e.g. radiophone) must not be used in the immediate vicinity of the sensors.

Connection of a switch to an electric circuit - Switch connectionmust meet the high protection standard required and resist the high operation temperatures. The proximity switches specified in this catalogue are delivered with 2 x 0.25 mm2, 3 x 0.25 mm2 or 4 x 0.25 mm2 PVC cable in length of 2 m. This type meets the IP 68 enclosure class. The quick-disconnect version is provided with the connector type complying with the IP 67 enclosure class.

Technické parametry

Technical parameters
Design
With cable With connector
Nominal sensing distance Sn 30 mm
Effective sensing distance Sr 24 - 36 mm
Case M30
Case material nickel plated brass
Mounting non-flush
Hysteresis Sa (0.01 - 0.15) x Sn
Nominal voltage Un 24 V DC
Supply voltage Uc 10 - 30 V DC
Supply current Ic < 10 mA
Output current Iz < 200 mA
Ambient temperature range T -25 °C to 70°C
Ingress protection
IP 68 IP 67
Connection type cable PVC 3 x 0.25 mm2 connector M12


Switching Frequency
Design With cable With connector
Normal 50 Hz
Slow 20 Hz


Order reference number
OUTPUT Spínací frekvence With cable With connector
NPN n.o. Normal PDI 308 311 PDI 308 411
Slow PDI 308 311 S PDI 308 411 S
NPN n.c.
Normal PDI 308 312 PDI 308 412
Slow PDI 308 312 S PDI 308 412 S
PNP n.o. Normal PDI 308 313 PDI 308 413
Slow PDI 308 313 S PDI 308 413 S
PNP n.c. Normal PDI 308 314 PDI 308 414
Slow PDI 308 314 S PDI 308 414 S

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

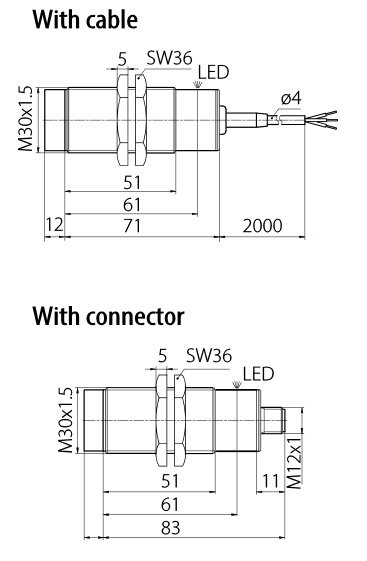

Rozměrový náčrt

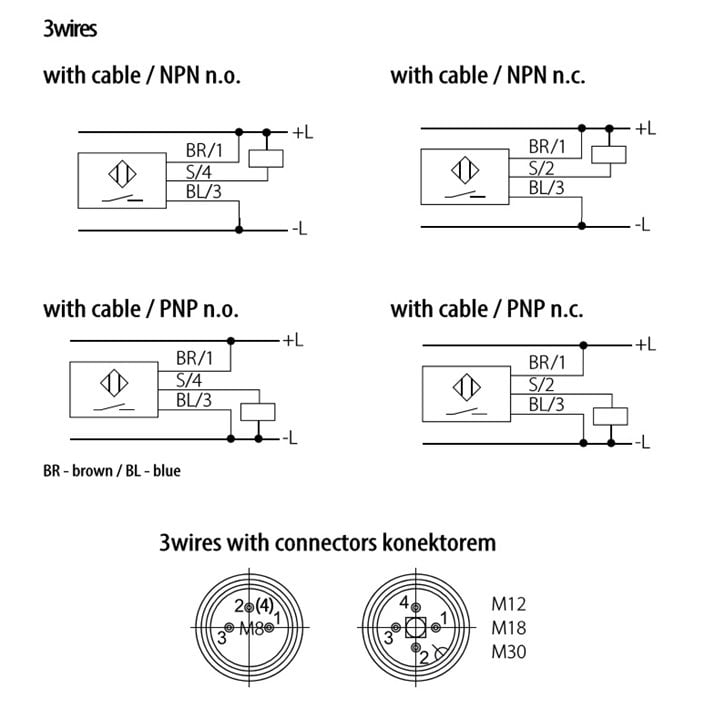

Schéma zapojení

Modifikace

Soubory ke stažení

209.02en.pdf 209.02en.pdf
