MULTILOGGER M1200E - Low Cost Thermometer with 4 Thermocouple Inputs

MULTILOGGER M1200E - Low Cost Thermometer with 4 Thermocouple Inputs

MULTILOGGER M1200E - Low Cost Thermometer with 4 Thermocouple Inputs

CONFIGURATOR

CONFIGURE AND REQUEST

30811
__KOUPIT__
__NABIDKA__
__JINY DOTAZ__

BBB

--%>

M1200E is a battery operated datalogger that allows to monitor the actual measured values on the device display or to work with historical data in Comet Vision, where you can create table charts, PDF export, MS EXCEL.
The device is designed for measuring and recording with 4 inputs for thermocouples K, J, S, B, T, N.
Included is traceable calibration certificate in accordance with EN ISO/IEC17025.

Included in delivery:

  • M1200E
  • Instruction Manual
  • Traceable Calibration Certificate
  • 3x Alcalic Battery AA
  • USB Cable
  • Wall Holder
  • FREE Analytical Software COMET Vision

Accessories


Technické parametry


Temperature sensorThermocouple K, N
Measuring range
-200 to +1300 °C
Accuracy ± 0.3 % from the measured value + 1.5 °C
Resolution
0.1 °C


Temperature sensorThermocouple J
Measuring range
-200 to +750 °C
Accuracy ± 0.3 % from the measured value + 1.5 °C
Resolution
0.1 °C


Temperature sensorThermocouple S
Measuring range
0 to +1700 °C
Accuracy  ± 0.3 % from the measured value + 1.5 °C
Resolution
0.1 °C


Temperature sensorThermocouple B
Measuring range
100 to +1800 °C
Accuracy   ± 0.3 % from the measured value + 1 °C
in the range +300 to +1800 °C
Resolution
0.1 °C


Temperature sensor Thermocouple T
Measuring range
-200 to +400 °C
Accuracy  ± 0.3 % from the measured value + 1.5 °C
Resolution
0.1 °C


DC Voltage
Measuring range
-60 to +140 mV; -18 to +18 mV
Accuracy ±100 µV; ±20 µV
Resolution0.1 µV


Datalogger typeM1200E
Operating temperature
-10 to +60 °C
Channels
4x external temperature probe
Memory 1 000 000 values (noncyclic record),
600 000 values (cyclic record)
Recording interval 1s to 24 hours
Display and alarm refresh
each 10 s
Recording mode  noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
Available temperature units
degrees Celsius, degrees Fahrenheit
Communication interface
USB
Power
3x AA alkaline battery 1.5 V
Battery life
3 - 4 weeks
Protection class
IP20
Dimensions without connectors
178 x 95 x 37mm, without attached cables
Weight including batteries
approx. 380 g
Warranty
3 years

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer

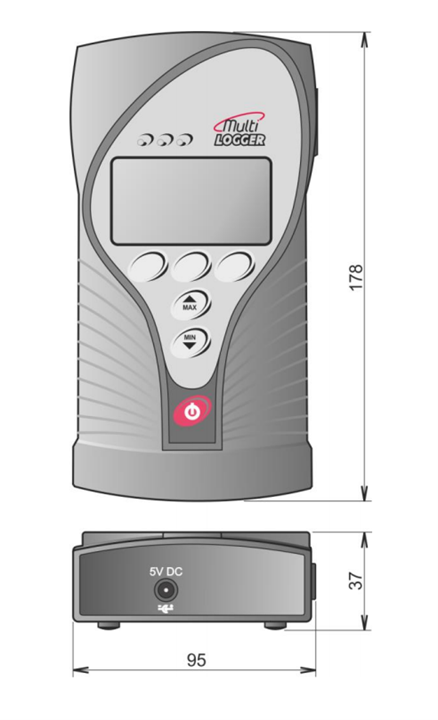

Rozměrový náčrt

Schéma zapojení
