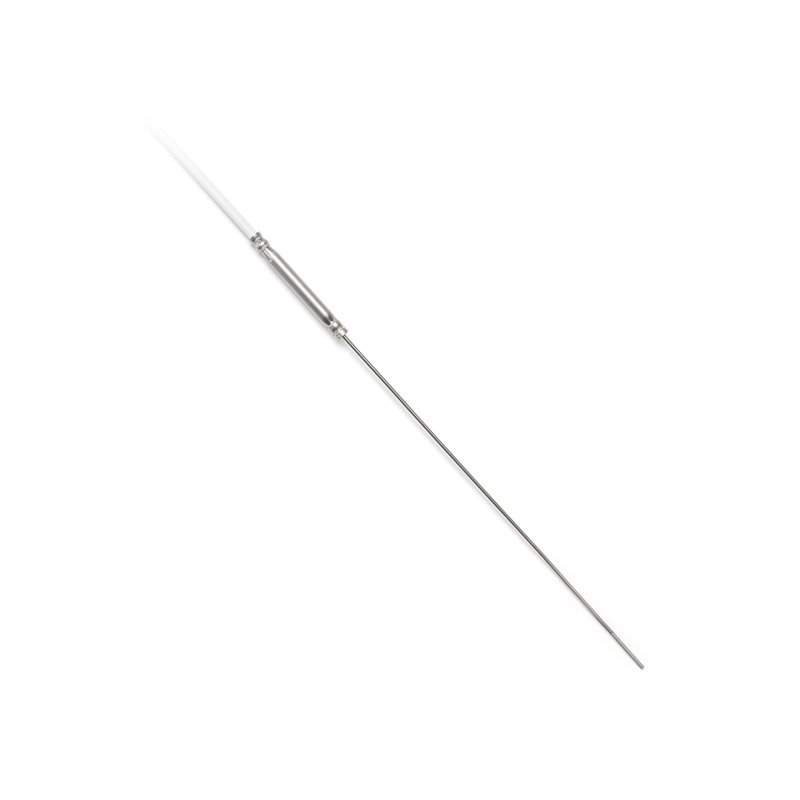

Mineral Insulated Resistance Temperature Sensors
(MGO) diameter 1.5 mm

Mineral Insulated Resistance Temperature Sensors
(MGO) diameter 1.5 mm

Mineral Insulated Resistance Temperature Sensors
(MGO) diameter 1.5 mm
On request

BBB

--%>

Mineral insulated (MGO) resistance temperature sensors are designed for measuring the temperature of gaseous, liquid or solid substances. Their main advantage compared to the standard design of resistance temperature sensors is the possibility to form the shape of the sensor body. The temperature range of the measuring end of the sensor is up to 600 °C, according to the temperature sensor design. These mineral insulated (MGO) resistance temperature sensors can be used for all control systems compatible with the type of sensing element stated in the table of technical parameters. Mineral insulated (MGO) resistance temperature sensors meet the degree of protection of up to IP 67 according to EN 60529, as amended, depending on the type of thermoelement and production technology used. The diameter of the cladding of 1.5 mm ensures very quick time response of the sensor to temperature changes. Mineral insulated (MGO) resistance temperature sensors are designed for operation in chemically non-aggressive environments, the using must be chosen with regard to temperature and chemical resistant housing and a cable.

ACCESSORIES

DECLARATION, CERTIFICATION, CALIBRATION

  • Manufacturer provides EU Declaratin of Conformity.
  • Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard, as amended) or in an Accredited laboratory.

Technické parametry

Sensor type TR 091.5P
Sensing element Pt 100, Pt 500, Pt 1000
Ingress protection Up to IP 67 in accordance with EN 60529, as amended - acc. to type of the cable
Design Jacket resistance sensor
Diameter of measuring part 1.5 mm
Length of the measuring part from 50 to 300 mm as standard, others as requested
Maximal temperature range (on measuring tip) -50 to 500 °C (could be limited by length of the measuring tip or variant of lead-in cable)
Accuracy class class B standard (class A on request)
Jacket material stainless steel DIN1.4571
Body of sensor flexible, shapeable
Minimum bend radius 10time of diameter
Lead-in cable variations/
Temperature range
of the cable
PVC shielded -30 to 80 °C
PVC unshielded -40 to 105 °C
silicone shielded -50 to 200 °C
teflon shielded -50 to 250 °C
with fibreglass 0 to 400 °C (with metal braiding)

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

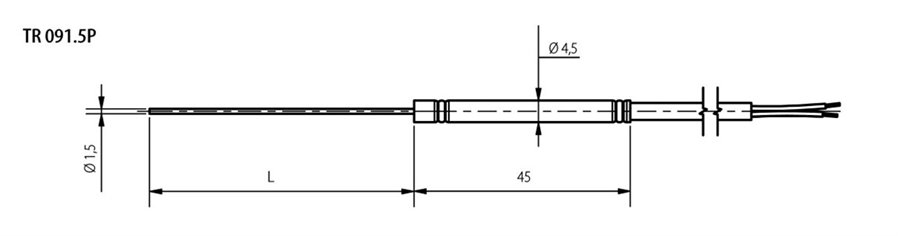

Rozměrový náčrt

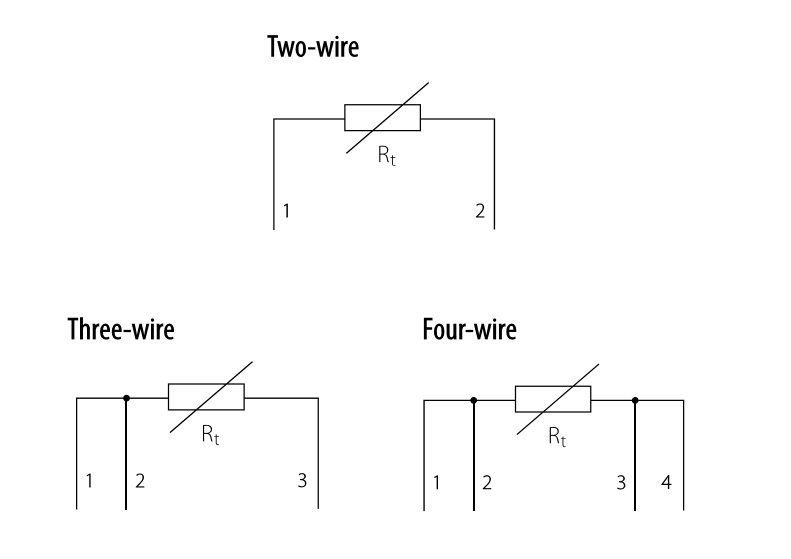

Schéma zapojení

Modifikace

  • variable stem design in the area - L length
  • possibility to ancase two sensing elements
  • accuracy class A (with the exception of sensors Ni 10000/5000, Ni 10000/6180, T1 = Ni 226, termistor NTC 20 kΩ)

Soubory ke stažení

T04.02en.pdf T04.02en.pdf
