Metal holder K 110
Metal holder K 110

CONFIGURATOR

CONFIGURE AND REQUEST

21704
__KOUPIT__
__NABIDKA__
__JINY DOTAZ__

BBB

--%>

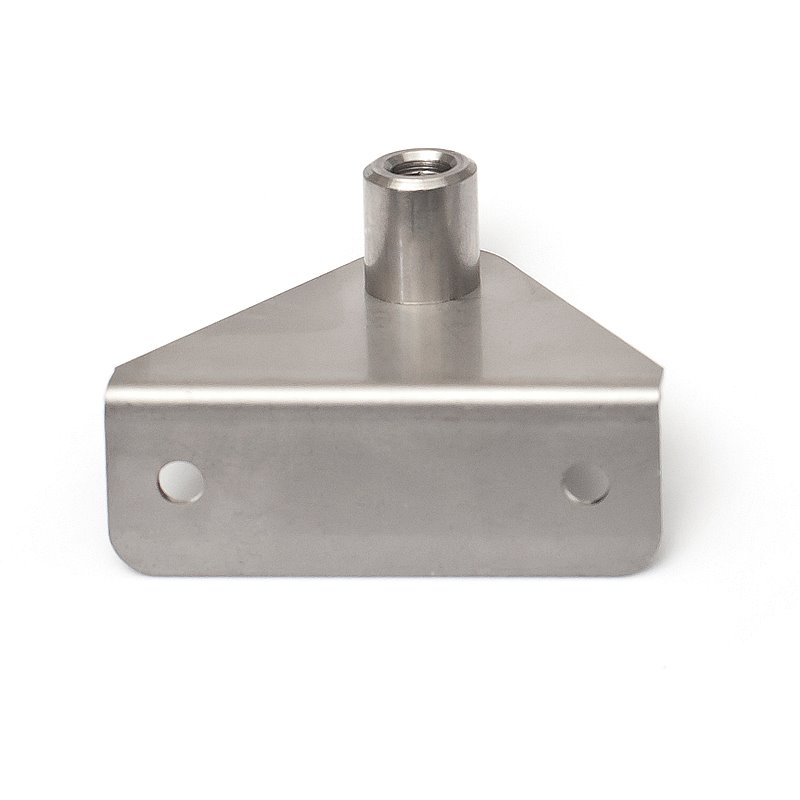

Metal holder is used to mounting temperature sensors for example on a wall.

Metal holder is designed to temperature sensors for outdoor use with a metal connection head K 110 line (NK 110, NK 111 ..., PTK 110, PTK 210 ...)1.

Holder is designed for diameter 6 mm of the temperature sensors.

Temperature sensors are locked in the metal holder K 120 with a M4 x 10 screw.



Technické parametry

Type K 110

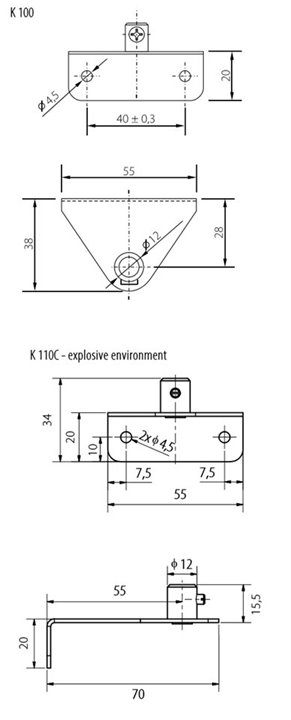

Dimensions according dimensional draft
Material stainless steel DIN 1.4301



Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

Rozměrový náčrt

Schéma zapojení

Modifikace

Soubory ke stažení

040.11en.pdf 040.11en.pdf
