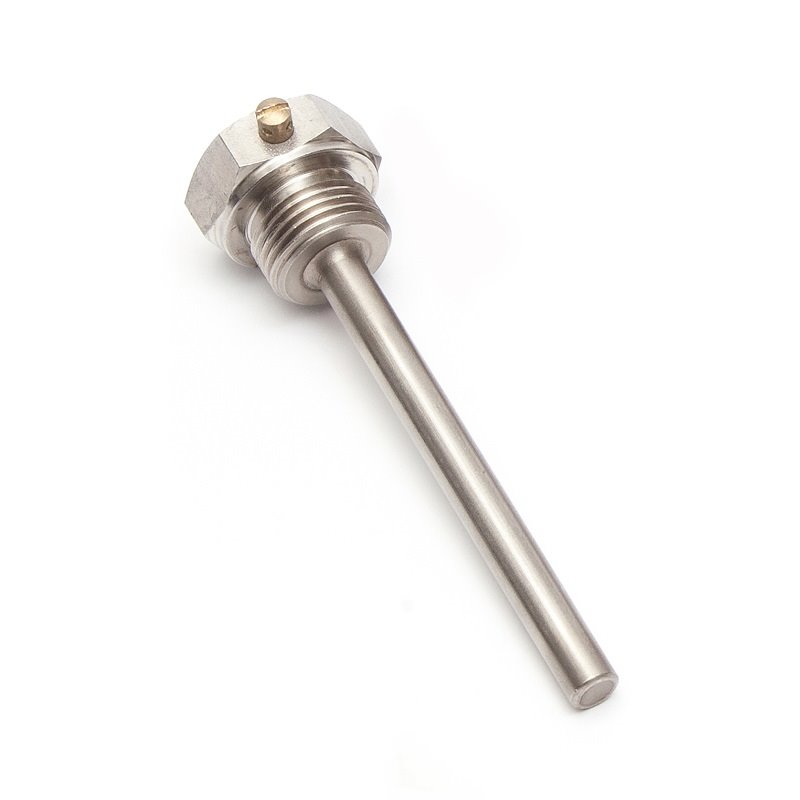

JTP 16 thermowell
inside diameter 6.0 mm

JTP 16 thermowell
inside diameter 6.0 mm

JTP 16 thermowell
inside diameter 6.0 mm

CONFIGURATOR

CONFIGURE AND REQUEST

21635
__KOUPIT__
__NABIDKA__
__JINY DOTAZ__

BBB

--%>

Thermowells are component parts that are usually screwed in or welded in a pipe line. They protect the measuring part of the sensors against the influence of the liquid being measured. Thermowells enable the replacement of the temperature sensors while the technological equipment is in operation.

All of the thermowell types manufactured by SENSIT s.r.o. are made of high-quality stainless steel DIN 1.4301. They are standardly provided with G1/2" thread, but is also possible to deliver them with the G 3/8", M 20 x 1.5, M 27 x 2 threads or even others if necessary.

JTP 16 thermowell are designed for TP 16 paired temperature sensors.

In addition to the standard lenghts listed in catalogues, thermowhells can also be manufactured in non-standard lenghts.

Temperature sensors are locked in the thermowhell with a M4 x 10 screw.

Thermowhells are manufactured for the nominal pressure PN 63.

Technické parametry

MAXIMUM STREAM VELOCITY OF THE MEASURED MEDIUM - AIR AND WATER VAPOUR / WATER [m.s-1]

Thermowell diameter (mm) /
Thermowell length (mm)

up to 60 > 60 to 100 > 100 to 160 > 160 to 220 > 220 to 400
∅6 and ∅ 8 20 / 2.0 15 / 1.5 8.0 / 1.0 2.5 / 0.6 0.6 / 0.3
∅ 10 and ∅ 12 35 / 3.5 30 / 3.0 15 / 2.0 5.0 / 1.2 1.6 / 0.8


Thermowell typeJTP 16
Temperature range-100 to 450 °C
Thermowell material
stainless steel DIN 1.4301
Maximum diameter of the temperature stem
has to be amaller than 6 mm (tolerance according ti standard EN 1434, as amended)
Outer diameter of thermowell
8 mm
Standard length L2
105, 140 and 230 mm
Standard thread
G 1/2"/OK24; M 20 x 1.5/OK24
Designed for sensorpaired temperature sensors TP 16

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

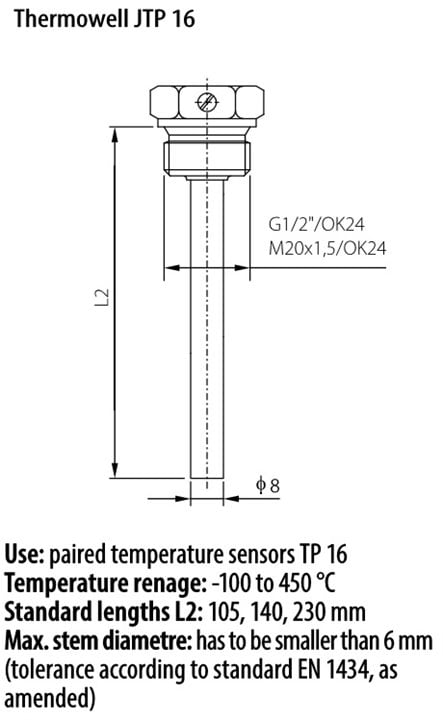

Rozměrový náčrt

Schéma zapojení

Modifikace

Soubory ke stažení

040.11en.pdf 040.11en.pdf
