JPTS 641 thermowell
inside diameter 6.9 mm
up to 600 °C

JPTS 641 thermowell
inside diameter 6.9 mm
up to 600 °C

JPTS 641 thermowell
inside diameter 6.9 mm
up to 600 °C

CONFIGURATOR

CONFIGURE AND REQUEST

21665
__KOUPIT__
__NABIDKA__
__JINY DOTAZ__

BBB

--%>

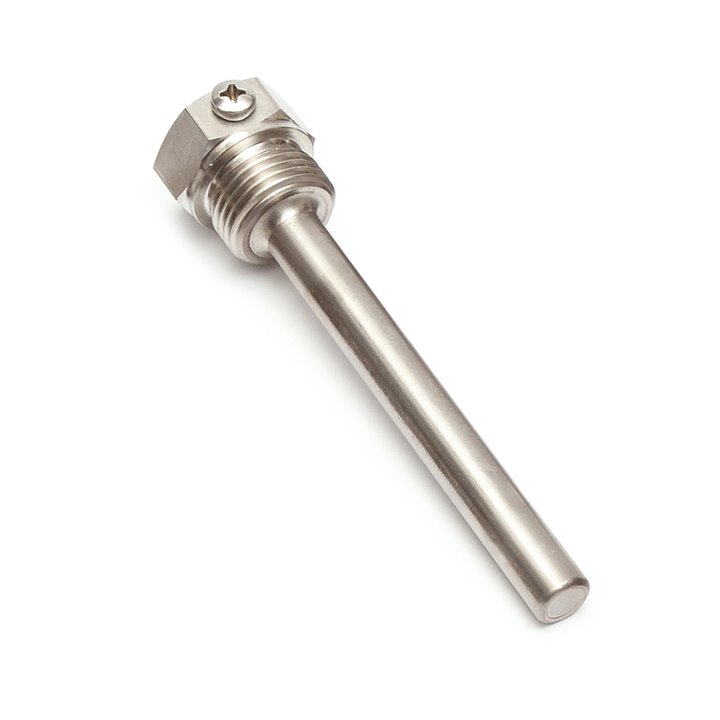

JPTS 641 thermowells are component parts that are usually screwed in or welded in a pipe line. They protect the measuring part of the sensors against the influence of the liquid being measured. Thermowells enable the replacement of the temperature sensors while the technological equipment is in operation.

All of the thermowell types manufactured by SENSIT s.r.o. are made of high-quality stainless steel DIN 1.4571. They are standardly provided with G1/2" thread, but is also possible to deliver them with the G 3/8", M 20 x 1.5, M 27 x 2 threads or even others if necessary.

JPTS 641 thermowell are designed for platinum temperature sensors up to 600 °C with protection IP 68 PTS 641, PTS 645, PTS 651 and for temperature sensors up to 600 °C and programmable convertor with IP 68 PTS 681.

In addition to the standard lenghts listed in catalogues, thermowhells can also be manufactured in non-standard lenghts.

Temperature sensors are locked in the thermowhell with a M4 x 10 screw.

Thermowhells are manufactured for the nominal pressure PN 63.

Technické parametry

MAXIMUM STREAM VELOCITY OF THE MEASURED MEDIUM - AIR AND WATER VAPOUR / WATER [m.s-1]

Thermowell diameter (mm) /
Thermowell length (mm)

up to 60 > 60 to 100 > 100 to 160 > 160 to 220 > 220 to 400
∅6 and ∅ 8 20 / 2.0 15 / 1.5 8.0 / 1.0 2.5 / 0.6 0.6 / 0.3
∅ 10 and ∅ 12 35 / 3.5 30 / 3.0 15 / 2.0 5.0 / 1.2 1.6 / 0.8


Thermowell typeJPTS 641
Temperature range-100 to 650 °C
Thermowell material
stainless steel DIN 1.4541
Maximum diameter of the temperature stem
6.9 mm
Outer diameter of thermowell
10 mm
Standard length L2
50, 100, 160, 220, 280 and 400 mm
Standard thread
G 1/2"/OK24; M20 x 1.5/OK24; M27 x 2/OK30
Temperature range of useup to 600 °C
Designed for sensorfor platinum temperature sensors up to 600 °C with protection IP 68 PTS 641, PTS 645 and PTS 651

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

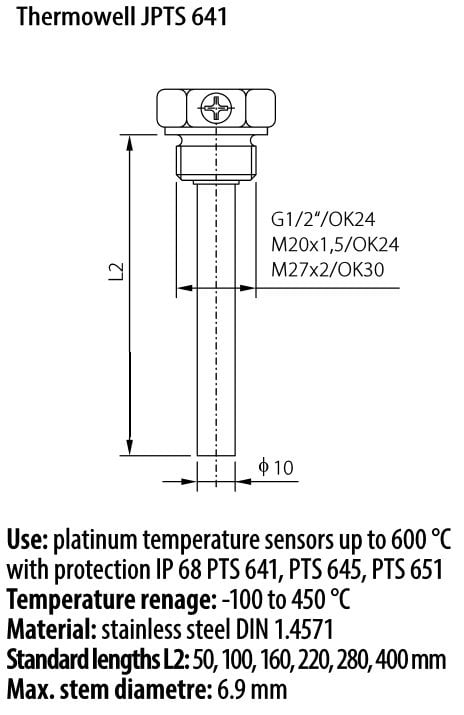

Rozměrový náčrt
