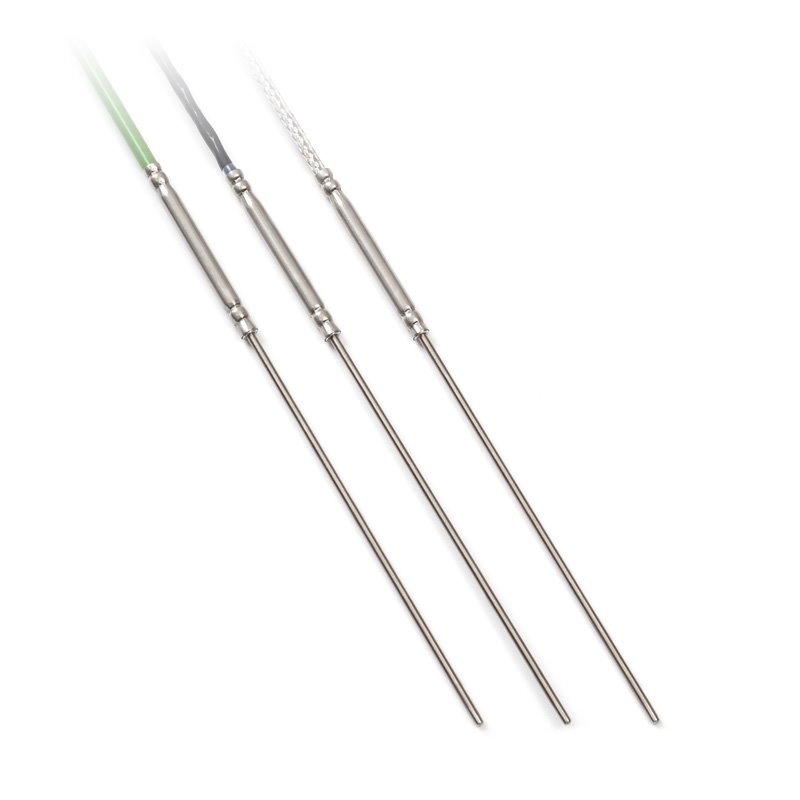

Jacketed thermocouple
diameter 2 mm

Jacketed thermocouple
diameter 2 mm

Jacketed thermocouple
diameter 2 mm
On request

BBB

--%>

Thermocouple temperature sensors with attached guidance are designed for measuring temperature of gaseous, liquid or solid substances. Temperature range is up to 1 100 °C depending to the thermocouple type and to the production technology used. The thermocouple temperature sensors are possible to be used for any control systems compatible with selected thermocouple type. The thermocouple temperature sensors meet ingress protection IP 65 according to the EN 60529, as amended; the case diameter of 2 mm ensures a very fast sensor response to temperature changes.

The thermocouple temperature sensors are intended for operation in chemically non-aggressive environment.

ACCESSORIES

  • connectors
  • screw with collet or cutting rings – if different lengths of stem immersion of the temperature sensor are set

DECLARATION, CERTIFICATION, CALIBRATION

  • Manufacturer provides EU Declaration of Conformity.
  • Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard, as amended) or in an Accredited laboratory.

Technické parametry

Sensor typeTC 092.0P
Thermocouple type"J" and "K" (other on request), single and double
Ingress protectionIP 55, 54 a 50 in accordance with EN 60529, as amended
Designjacketed thermocouple with insulated measuring point
Diameter of the jacket / diameter of the case2 mm
Length of the measuring part L
from 20 to 300 mm as standard, others as requested
Measuring range - on measuring point"K" type up to 1 100 °C "J" type up to 700 °C other depending on the type
Accuracy classstandardly 2 in accordance with EN 60584 and DIN 43 710, further 1
Jacket material / case material
Inconel 2.4816 for TC "K", stainless steel DIN 1.4541 for TC "J"
Sensor bodyflexible, shapeable
Compensated linessilicone unshielded 2 × 0.22 mm2 up to 200 °C IP 55 / IP 67, as amended
PTFE shielded 2 × 0.22 mm2 up to 260 °C (short time 300 °C) IP 54 / IP 64, as amended
glass + metal braiding 2 × 0.22 mm2 up to 400 °C or 600 °C IP 50, as amended
PVC unshielded 2 x 2.22 mm2 up to 105 °C , IP 55 / IP 67, as amended

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

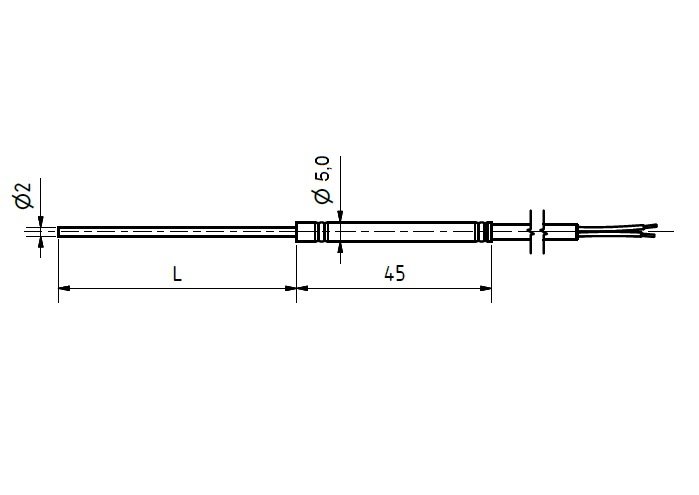

Rozměrový náčrt

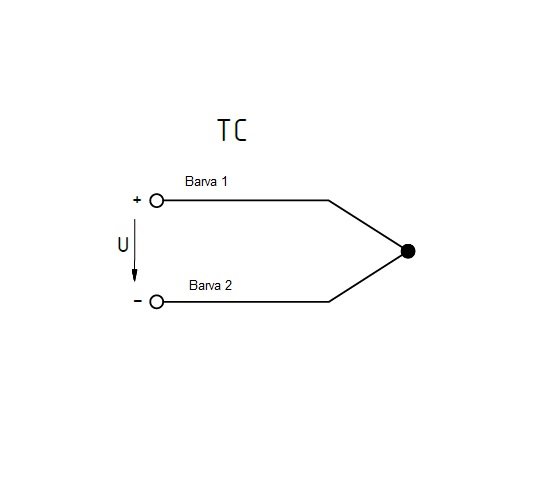

Schéma zapojení

Modifikace

  • variable stem design - length L1, diameter, case material

Soubory ke stažení

T02.03en.pdf T02.03en.pdf
