Technické parametry

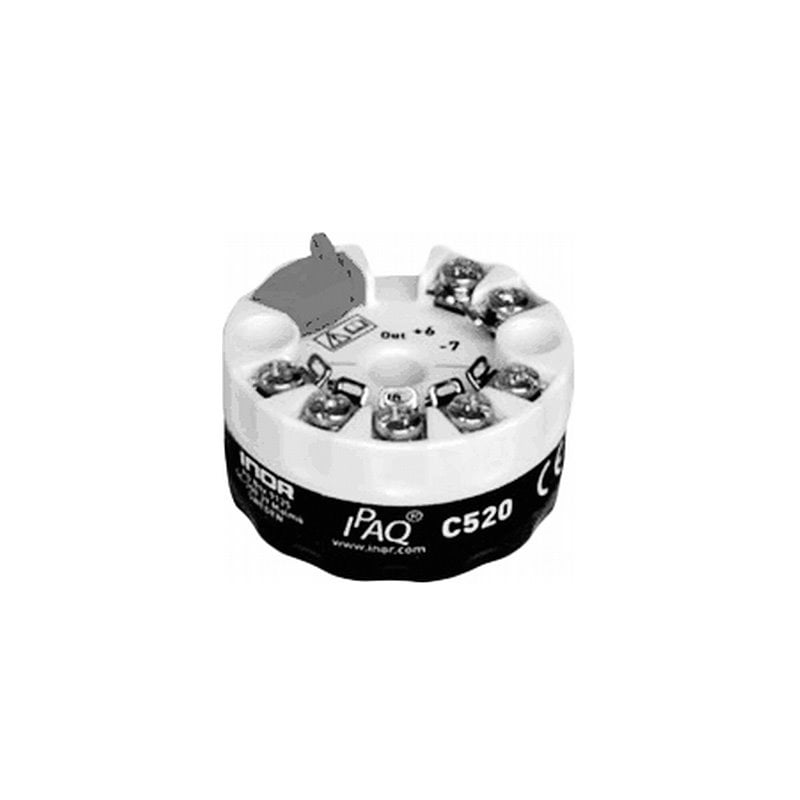

| Corverter type | IPAQ-C520/-C520X |
| Use | IPAQ-C520/-C520X are insulated programmable converters for heads with HART 6 protocol and double input |
| Input | Pt100, Pt1000, potentiometer,
thermocouple B, E, J, L, T, K, N, R, S, U, |
| Output HART | Measuring range programble |
|
Accuracy | ± 0.05 % of the temperature range, max. ±0.1 °C
|
|
|
| Maximum operating temperature range | -40 to 85 °C |
| Power supply | 10 to 36 V |
-C520X: designed for explosive environments
Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.
Rozměrový náčrt
Schéma zapojení
Soubory ke stažení
201.04en.pdf
