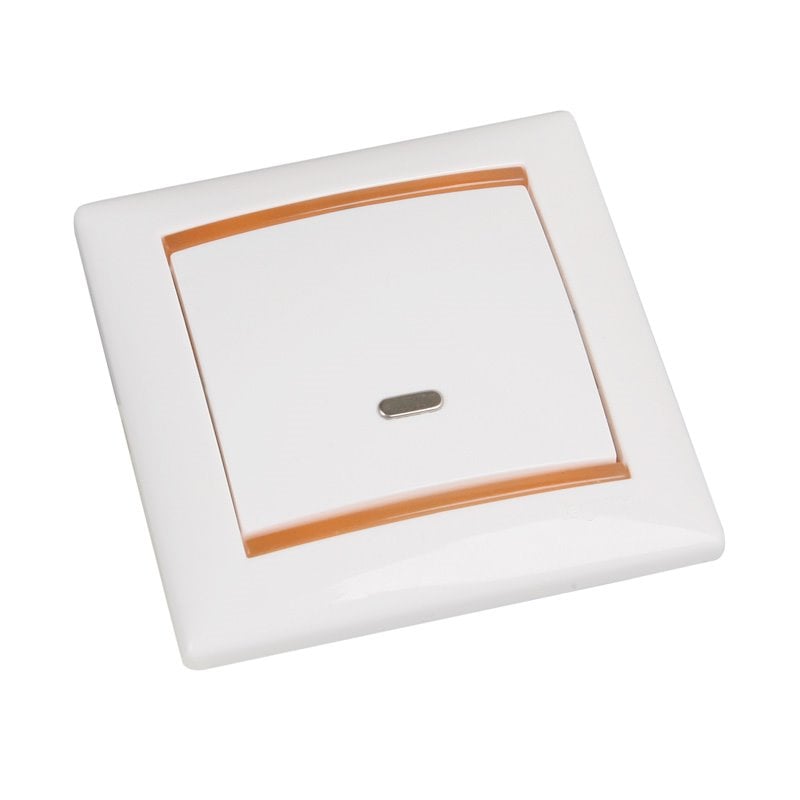

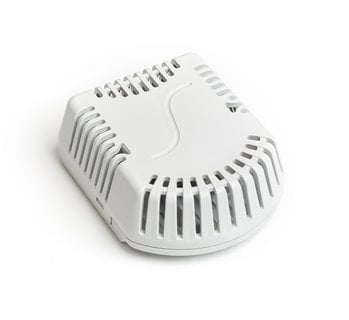

These resistance-type sensors are intended for temperature measurements in interiors and that is why they meet high aesthetic demands. Standard temperature operating range is between 5 and 55 °C (-20 to 75 °C for a short time).

The temperature sensor design is based on the standard design of household wiring material of ABB - ALPHA EXCLUSIVE, IMPULS, SOLO, TANGO, TIME and ELEMENT. The standard colour for the ALPHA EXCLUSIVE line is alabaster. For SOLO, TANGO, ELEMENT and TIME – white, and alpine white for the IMPULS line.

The temperature sensors can be utilised for any control systems that are compatible with sensing element output signals or output signals quoted in the table of sensing element types.

The temperature sensors are designed to be operated in a chemically non-aggressive environment.

DECLARATION, CERTIFICATION, CALIBRATION

  • Manufacturer provides EU Declaration of Conformity.
  • Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard) or in an Accredited laboratory.

According to customer´s requirements, sensors can be supplied in the designs of the following companies: SCHNEIDER, LEGRAND, UNICA.

Technické parametry

Sensor type NS 100 xxxx NS 101 xxxx NS 102 xxxx Ns 300 xxxx NS 301 xxxx
Type of sensing element
Ni 1000/5000 Ni 1000/6180 Ni 891 Ni 10000/5000 Ni 10000/6180
Measuring range
5 to 55 °C (for short period -20 to 75 °C)
Maximum measuring DC current
1 mA 1 mA 1 mA 0.3 mA 0.3 mA


Sensor type NS 103 xxxx PTS 100 xxxx PTS 200 xxxx PTS 300 xxxx HS 100 xxxx
Type of sensing element
T1 = Ni 2226 Pt 100/3850 Pt 500/3850 Pt 1000/3850 thermistor NTC 20 kΩ
Measuring range
5 to 55 °C (for short period -20 to 70 °C)
Maximum measuring DC current
0.7 mA 3 mA 1.5 mA 1 mA 1 mW *)

*) maximum power consumption

OTHER PARAMETERS
Accuracy class
Ni sensing elements: B class, Δt = ± (0.4 + 0.007t), for Δt ≥ 0; t = ± (0.4 + 0.028|t|), for t ≤ 0 in °C;
Pt sensing elements: B class according to EN 60751, Δt = ± (0.3 + 0.005|t|) in °C
NTC 20 kΩ: ± 1 °C for the range 0 to 70 °C
Sensor connection
according to the wiring diagram
Recommended wire cross section
0.35 to 1.5 mm2
Ingress protection
IMPULS – IP 20; ALPHA EXCLUSIVE, SOLO, ELEMENT, TIME – IP 30; TANGO – IP50 in accordance with EN 60529, as amended
Material of the connection head
ABS
Operating conditions
ambient temperature: 5 to 55 °C (for a short period -20 to 70 °C)
relative humidity: max 85 % (at the ambient temperature 25 °C)
atmospheric pressure: 87 to 107 kPa
Weight approximately 0.1 kg


Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

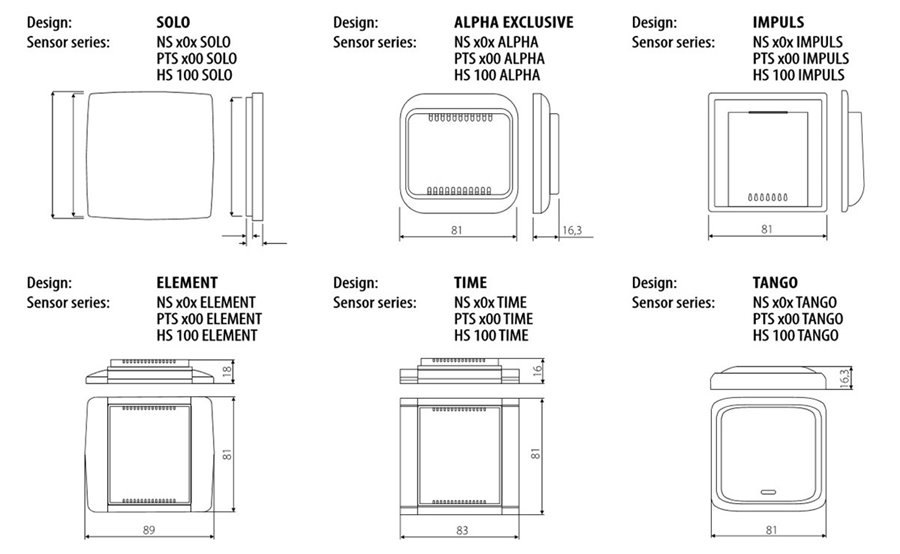

Rozměrový náčrt

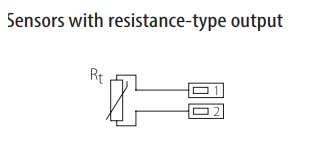

Schéma zapojení

Modifikace

  • option of encasing two sensing elements
  • option of encasing non-standard tempeature sensors (DALLAS, TSic, KTY, SMT, etc.)
  • accuracy class A (with the exception of sensors Ni 10000/5000, Ni 10000/6180, T1 = Ni 2226, termistor NTC 20 kΩ)
  • option of three- or four- wire connection
  • the colour of plastic sensor parts - according to the manufacturer's sampler
