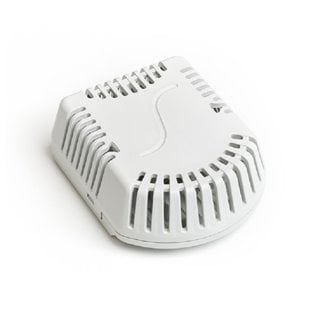

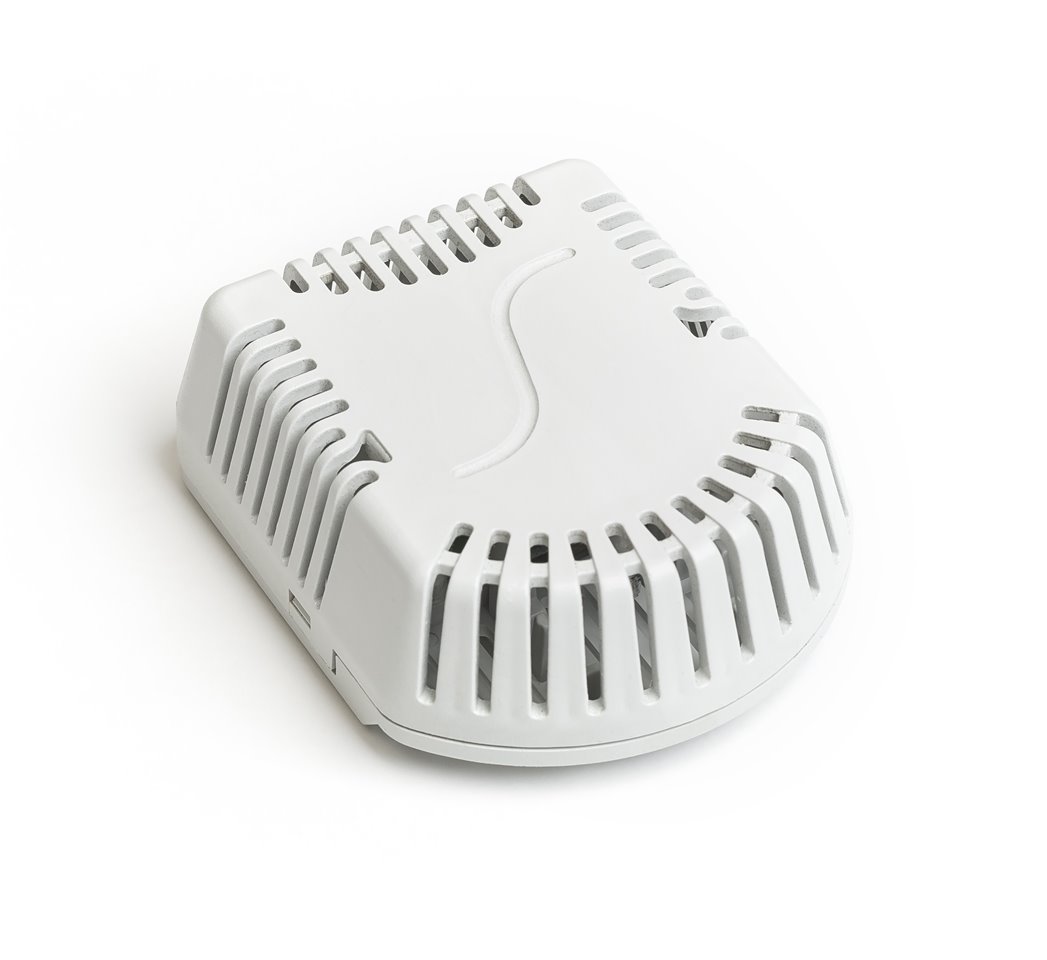

These resistance sensors are designed for temperature measurement of gaseous substances in water-protected areas – e.g. for temperature measurement in rooms (schools, theatres, lecture halls, etc.), offices, interiors of residential houses or even production floors. Suitable design and high-quality material ensure that the sensors do not feel disturbing even in the interiors with high aesthetic requirements. You can choose the color of the box white or gray.

The temperature range of the sensors is -30 to 100 °C. The sensors meet ingress protection IP 30 according to EN 60529, as amended. Installation is recommended on an inner wall at the height of 1.5 m, in areas of movement of persons, at places not exposed to direct sunlight and not influenced by heat from walls, heating radiators or lighting.

The sensors are designed to be operated in a chemically non-aggressive environment, the use must be chosen with regard to the temperature and chemical resistance of the sensor head.



DECLARATION, CERTIFICATION, CALIBRATION

  • Manufacturer provides EU Declaration of Conformity.
  • Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard, as amended) or in an Accredited laboratory.

Technické parametry

Sensor type NS 100 NS 101 NS 102 NS 300 NS 301
Type of sensing element Ni 1000/5000 Ni 1000/6180 Ni 891 Ni 10000/5000 Ni 10000/6180
Measuring range -30 to 100 °C LEXAN
Maximum measuring DC current 1 mA 1mA 1mA 0.3 mA 0.3 mA


Sensor type NS 103 PTS 100 PTS 200 PTS 300 HS 100
Type of sensing element T1 = Ni 2226 Pt 100/3850 Pt 500/3850 Pt 1000/3850 thermistor NTC 20 kΩ
Measuring range -30 to 100 °C LEXAN
Maximum measuring DC current 0.7 mA 2 mA 1.2 mA 0.8 mA 1 mW *)

*) maximum power consumption

Sensor typeNS 500NS 700Note
Type of sensing elementPt 1000/3850Pt 1000/3850
Output signal
4 to 20 mA0 to 10 V
Measuring ranges-30 to 60 °C
0 to 35 °C
0 to 100 °C
0 to 150 °C
-30 to 60 °C
0 to 35 °C
0 to 100 °C
0 to 150 °C
Ambient temperature around the connection head:
-30 to 70 °C
Power supply (Ucc)
12 to 30 VDC15 to 30 VDCRecommended value:
NS 500: 12 V DC
NS 700: 15 V DC
Max. load resistance Rs
150 Ω for power supply 12 VDC
700 Ω for power supply 24 VDC
> 10 kΩ

Sensing element break> 24 mA> 10.5 V
Sensing element short< 3.5 mA~ 0 V

**)According to the customer‘s requirement, it is possible to provide a customized measuring range from -40 to 150 °C; the minimum span of the range must be 35 °C (e.g. -20 to 15 °C; -30 to 80 °C)

OTHERS PARAMETRS
Accuracy class Ni sensing elements: B class, Δt = ± (0.4 + 0.007t), for t ≥ 0; Δt = ± (0.4 + 0.028|t|), for t ≤ 0 in °C;
Pt sensing elements: B class according EN 60751, Δt = ± (0.3 + 0.005|t|) in °C
NTC 20 °C kΩ: ± 1 °C for the range 0 °C to 70 °C
Measuring error for NS 500 (range -30 °C to 70 °C)
power supply = 12 V: ±(0.5 °C + 0.2 % from range)
power supply = 24 V: (-0.2 to 0.80 °C) ± 0.2 % from range
Measuring error for NS 700 (range -30°C to 70°C)
power supply = 15 V: ±(0.5 °C + 0.2 % from range)
power supply = 24 V: (-0.2 to 0.80 °C) ± 0.2 % from range
Sensor connection according to the wiring diagram
Time response τ0.5 < 8 s (in air flow 0.4 m.s-1)
Recommended wire cross section 0.35 to 1.5 mm2
Ingress protection IP 30 in accordance with EN 60529
Material of the connection head LEXAN
Dimensions of connection head
71.9 x 59 x 27 mm
Operating conditions ambient temperature:
-30 to 100 °C without converter
-30 to 70 °C with a converter
relative humidity: max 85 % (at the ambient temperature 25 °C)
atmospheric pressure: 87 to 107 kPa
Weight 0.05 kg

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

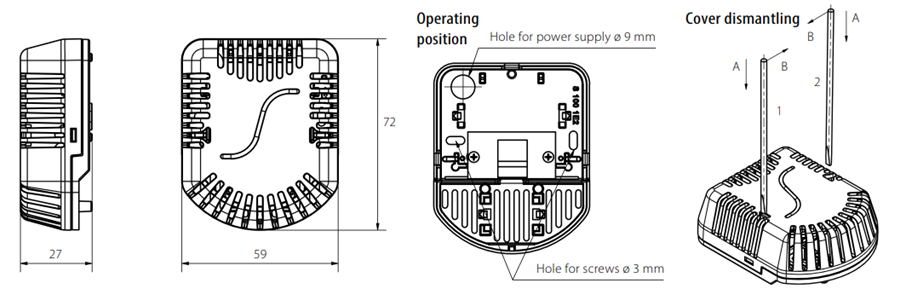

Rozměrový náčrt

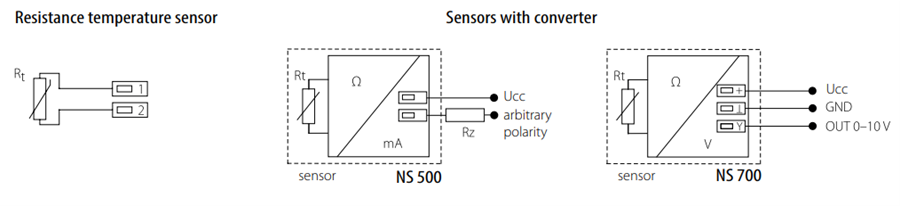

Schéma zapojení
