INTELLIGENT PROGRAMMABLE CONVERTERS FOR HEADS

INTELLIGENT PROGRAMMABLE CONVERTERS FOR HEADS

INTELLIGENT PROGRAMMABLE CONVERTERS FOR HEADS
On request

BBB

--%>

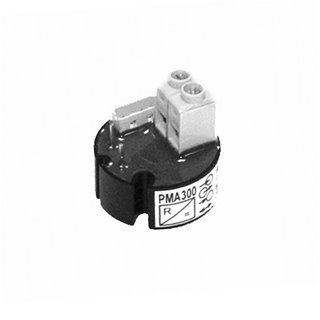

desCription PP heads are programmable converters for heads and they are designed for converting industrial signals from resistant temperature sensors (SLM) or thermocouples into a unified industrial signal of 4 to 20 mA.



Technické parametry

Converter typePP 200PMA 300PP 300
InputPt 100/3850
Pt 1000/3850
Ni 100/5000 and 6180
Ni 1000/5000 and 6180
Pt 100/3850
Pt 1000/3850
Ni 100/5000 and 6180
Ni 1000/5000 and 6180
Pt 100/3850
Pt 1000/3850
Ni 100/5000 and 6180
Ni 1000/5000 and 6180
thermocouple J, L, K, T, S, B, E...
Input connection2 or 3wire2wire
Output4 to 20 mA, programmable range
Measuring rangerandom, min. 10 °C marginrandom, min. 10 °C marginaccording to the thermocouple type
Linearizationyesyesyes
Power supply (U)
8 to 28 V on output loop8 to 28 V on output loop8 to 30 V on output loop
Accuracy0.15 %0.15 %0.15 %
Maximum operating temperature range
-25 to 80 °C-25 to 80 °C-25 to 80 °C

*) Errors in percentage are related to the range

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.
