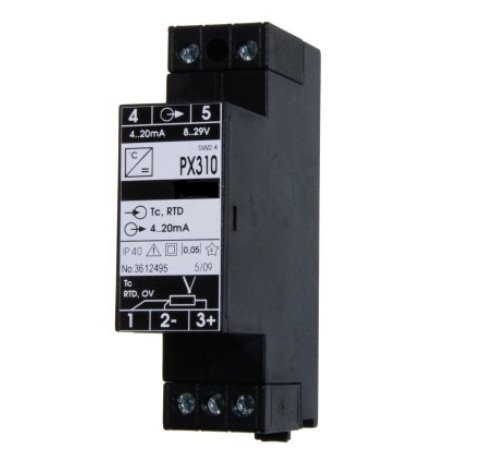

INSULATED PROGRAMMABLE CONVERTER OF DC SIGNALS (with 4 to 20 mA output) PX310

INSULATED PROGRAMMABLE CONVERTER OF DC SIGNALS (with 4 to 20 mA output) PX310

INSULATED PROGRAMMABLE CONVERTER OF DC SIGNALS (with 4 to 20 mA output) PX310
On request

BBB

--%>

Converter PX310 with galvanic separation 4 kVef converts signal from any thermocouple with linearisation and internal cold end compensation; from RTD, resistance transmitter or potentiometer; or from voltage 0 to 1 V DC.

Design for installation in a switchboard on a DIN 35 rail.

OUTPUT SIGNAL VARIANTS

User adjustable inputs: (The actual input and scope of measurement can be set within the limits of the stated maximum range)

Other input designs: (necessary modification of the basic design)

  • Thermocouple temperature meter with an option of external cold end compensation by the Pt 100 sensor
  • Resistance temperature meter with four-wire (4w) connection
  • Resistance transmitter or potentiometer 3kΩ to 10 kΩ
  • Thermistors NTC 10k, 15k, 20k, 25k…
  • KTY linear temperature sensors, thermistors, etc., as agreed
  • Possibility of input adjustment to customer’s requirements

Technické parametry

Input
Range (linearization table)Error







Thermocouples
(TC), internal compensation
Fe-CuNi J-210 to 1 200 °C0.3 °C from -60 °C
-210 to 1 050 °C0.3 °C from -100 °C
-210 to 300 °C0.3 °C from -160 °C
Fe-Ko L0 to 899 °C0.05 %
NiCr-NiAI K-210 to 400 °C0.3 °C from -150 °C
-270 to 1 372 °C0.1 % from -99 °C
-60 to 1 372 °C0.3 °C from -20 °C
Pt10Rh-Pt S-50 to 1 768 °C0.1 % from 40 °C
Pt30Rh-Pt6Rh B0 to 1 820 °C0.1 % from 386 °C

NiCr-CuNi

E-270 to 1 000 °C0.1 % from -153 °C
NiCrSi-NiSi N-270 to 1 300 °C0.1 % from -122 °C
Pt13Rh-Pt R-50 to 1 768 °C0.1% from 54 °C
Cu-CuNi T-270 to 400 °C0.1% from -163 °C
Ni-Ni18Mo M-50 to 1 410 °C0.10 %
W5Re-W26Re C0 to 2 301 °C0.05 %
W3Re-W25Re D0 to 2 301 °C0.1 % from 49 °C
W-W26Re G0 to 2 301 °C0.1 % from 286 °C

F-30 to 1 400 °C0.05 %

U-200 to 400 °C0.10 %


Odporový teploměr
(RTD) 2w nebo 3w
Pt 100-200 to 400 °C0.18 °C
Pt 100-30 to 600 °C0.18 °C
Pt 1000-200 to 400 °C0.18 °C
Pt 1000-100 to 500 °C0.18 °C
Ni 100, Ni 1000 TKR6180 (5000)-60 to 180 °C0.18 °C
Lineární teplotní čidlo (KTY) KTY81 to KTY85-55 to 150 °C0.25 °C
Odporový vysílač (OV) 0 to 320 Ω, 0 to 2.5 kΩ0.03 Ω; 0,1 Ω
Potenciometr 0 to 320 Ω, 0 to 2.5 kΩ0.03 Ω; 0,1 Ω
Potenciometr 10 kΩ 0 to 150 Ω, 0 až 1 300 Ω, 0 to 10 kΩ0.03 Ω; 0,1 Ω; 1 Ω
DC napětí (U) -0.5 V to 1 V-70 mV to 140 mV; 0 to 1 V0.01 %


Electrical specification
Supply voltage8 to 30 V DC
User linearisationchart (32 sections
Sampling
16 / 20 ms for RTD and resistors, 52 /80 ms for TC, U, I
Digital filter (damping)
programmable 0 to 30 s
Max. resistance of sensor input
< 10 Ω / 1 wire
Current through sensor
< 0.5mA
Compensation of cold end temperature for
thermocouples
-25 to 70 °C, accuracy ± 1 °C
Output signal4 to 20 mA, line power supply
Current output resolution
0.033 %
Output current limitationmin. 3 mA, max. 21 mA
Accuracy
measurement error: 0.1% + error, refer to the table
temperature error: max. 0.05 % / 10 K
chyba EMC < 0.4 %
Working temperature range
-25 to 70 °C
Ingress protection housing/terminal block
IP 40 / IP 20 according to ČSN EN 60529
Wiringconductor 0.5 to 2.5 mm2
Optional accessoriesProgrammable adapter AY-USB

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

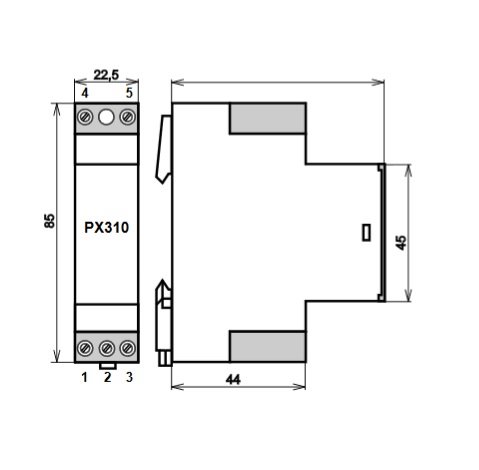

Rozměrový náčrt

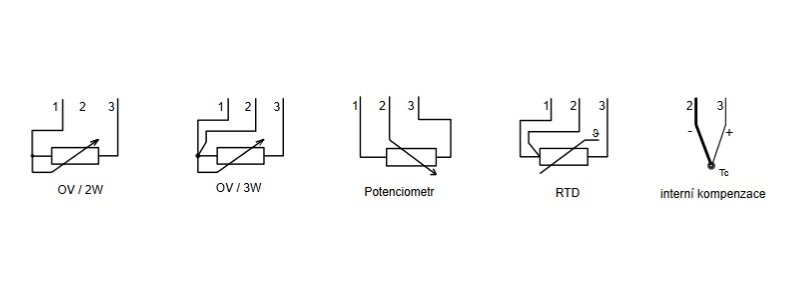

Schéma zapojení
