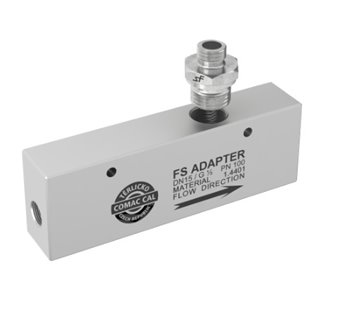

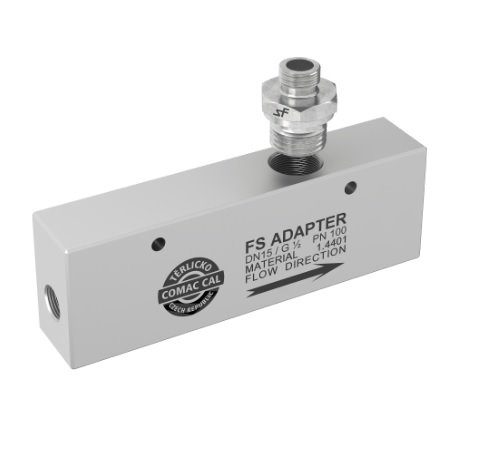

FS ADAPTER BLOCK FOR FLOW SENSORS

FS ADAPTER BLOCK FOR FLOW SENSORS

FS ADAPTER BLOCK FOR FLOW SENSORS
On request

BBB

--%>

FS ADAPTER BLOCK is use in case when it is necessary to monitor the media flow in the pipe with a smaller DN than DN 25 (or the flow velocity is below the sensor range at the pipe diameter given), it is possible to use an adapter block with a corresponding flow velocity and ensure correct operation and keep the installation conditions in this way. The adapters are designed for a short version of the 65 mm sensor by using a direct neck with G1/2” pipe thread.

Technické parametry

Individual designs:

FS adapter block DN20/G3/4” for 1÷10 l/min. (size 150×50×40 mm)
FS adapter block DN15/G1/2” for 0,5÷5 l/min. (size 150×50×30 mm)
FS adapter block DN10/G1/4” for 0,2÷2 l/min. (size 150×50×30 mm)
FS adapter block DN4.7/G1/4” for 50÷500 ml/min. (size 70×50×30 mm)
FS adapter block DN2.7/G1/4” for 2÷100 ml/min. (size 70×50×30 mm)


Rozměrový náčrt

Schéma zapojení

Modifikace

Soubory ke stažení
