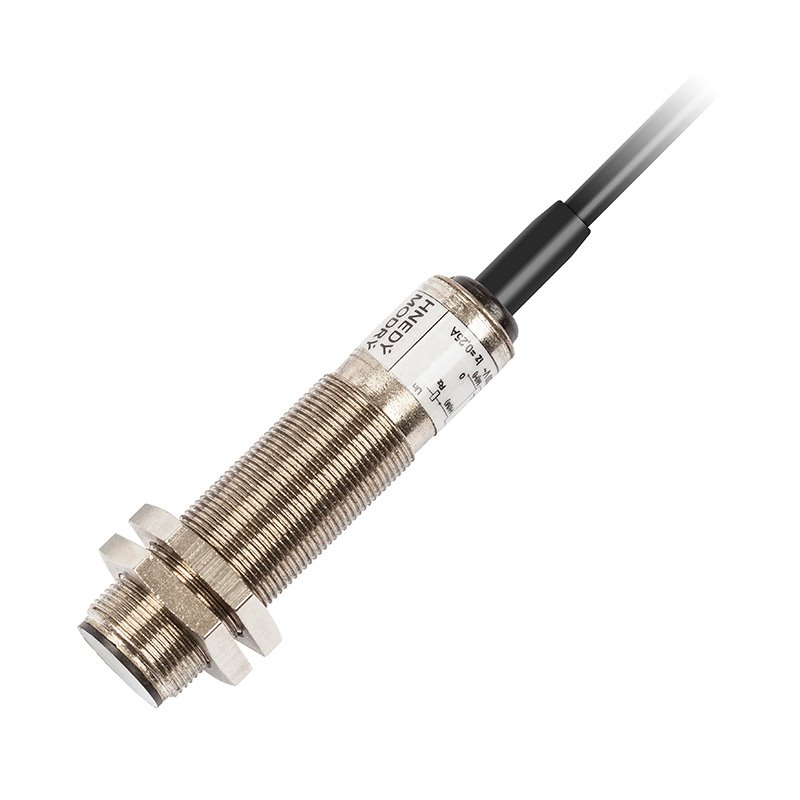

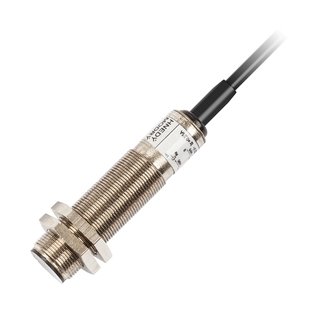

Flush inductive proximity switches
PSI M18 3wire

Flush inductive proximity switches
PSI M18 3wire

Flush inductive proximity switches
PSI M18 3wire
On request

BBB

--%>

Inductive proximity switches are used for the monitoring of the presence or metal objects. Depending on the switch mode (normylly open/normally closed), the output closes or opens, when the conductive object approaching the active switching zone.

Operation - is maintenance-free. For a fault free operation it is however necessary to keep the following principles: Surfaces of the active switching zone have to be kept free, clean. It is necessary to prevent sediments and other foreign particles from touching and setting up the active surface of the sensor, especially when mounted in upright position (active surface upwards). High electromagnetic field intensity devices (e.g. radiophone) must not be used in the immediate vicinity of the sensors.

Connection of a switch to an electric circuit - Switch connectionmust meet the high protection standard required and resist the high operation temperatures. The proximity switches specified in this catalogue are delivered with 2 x 0.25 mm2, 3 x 0.25 mm2 or 4 x 0.25 mm2 PVC cable in length of 2 m. This type meets the IP 68 enclosure class. The quick-disconnect version is provided with the connector type complying with the IP 67 enclosure class.

Technické parametry

Technical parameters
Design
With cable With connector
Nominal sensing distance Sn 5 mm
Effective sensing distance Sr 4 - 6 mm
Case M18
Case material nickel plated brass
Mounting flush
Hysteresis Sa (0.01 - 0.15) x Sn
Nominal voltage Un 24 V DC
Supply voltage Uc 10 - 30 V DC
Supply current Ic < 10 mA
Output current Iz < 200 mA
Ambient temperature range T -25 °C to 70°C
Ingress protection
IP 68 IP 67
Connection type cable PVC 3 x 0,25 mm2 connector M12


Switching frequency
Design With cable With connector
Normal 200 Hz
Slow 50 Hz
Fast 1 kHz


Order reference number
OUTPUTSwitching frequencyWith cableWith connector
NPN n.o.normalPSI 186 311PSI 186 411
slowPSI 186 311 SPSI 186 411 S
fastPSI 186 311 FPSI 186 411 F
NPN n.c.normal PSI 186 312PSI 186 412
slowPSI 186 312 SPSI 186 412 S
fastPSI 186 312 FPSI 186 412 F
PNP n.o.normalPSI 186 313PSI 186 413
slowPSI 186 313 SPSI 186 413 S
fastPSI 186 313 FPSI 186 413 F
PNP n.c.normalPSI 186 314PSI 186 414
slowPSI 186 314 SPSI 186 414 S
fastPSI 186 314 FPSI 186 414 F

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

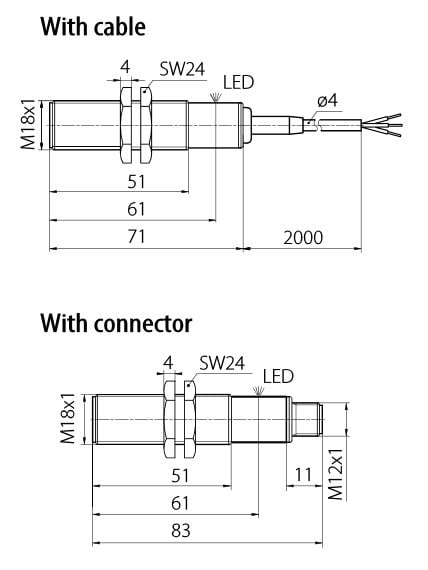

Rozměrový náčrt

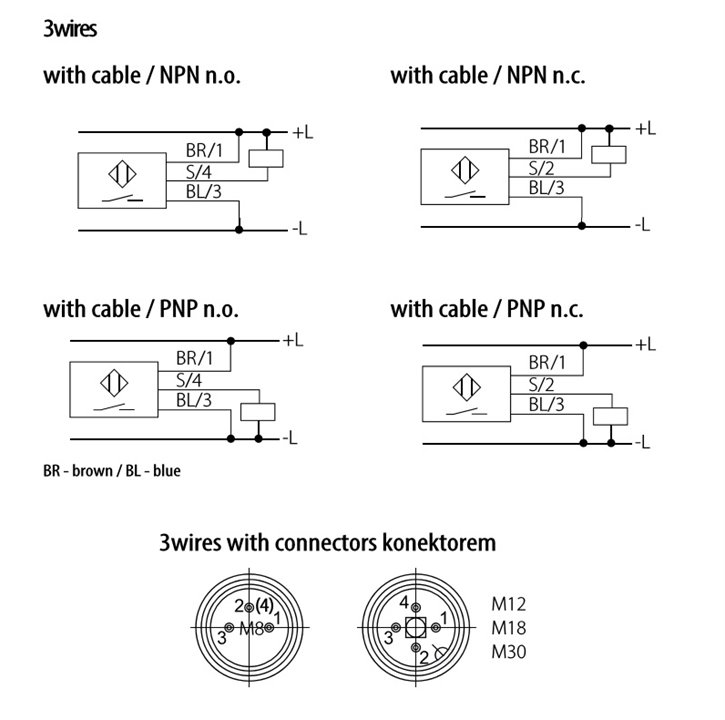

Schéma zapojení
