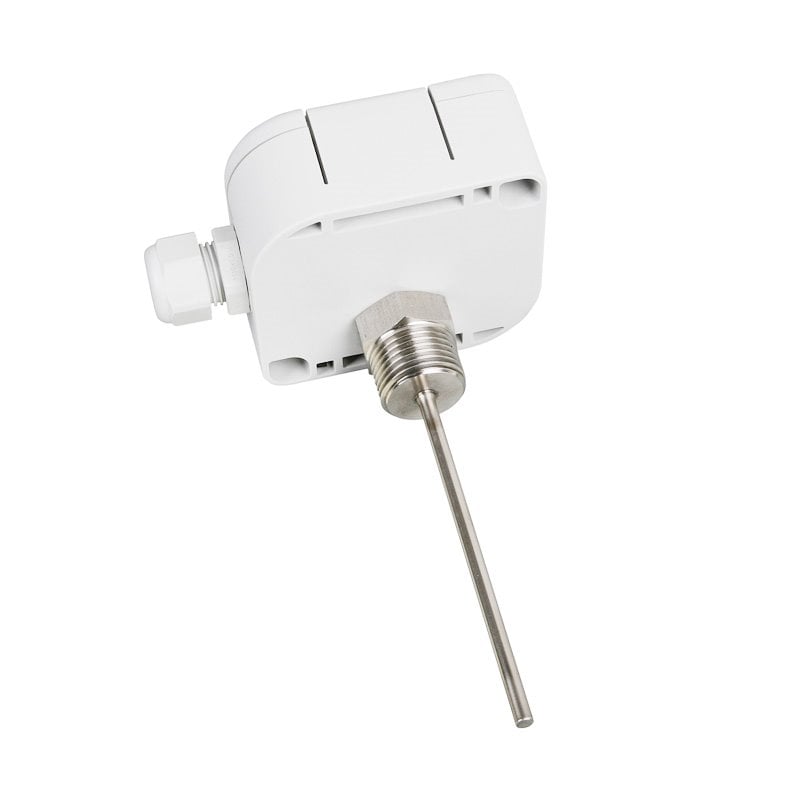

FAST RESPONSE TEMPERATURE SENSORS WITH A PLASTIC CONNECTION HEAD

FAST RESPONSE TEMPERATURE SENSORS WITH A PLASTIC CONNECTION HEAD

S 160 series

FAST RESPONSE TEMPERATURE SENSORS WITH A PLASTIC CONNECTION HEAD

BBB

--%>

These resistance-type sensors are intended for contact temperature measurements of liquid or gaseous substances. The plastic connection head is provided with a cable outlet ending (the terminal board is placed in the connection head) or a connector. The structure of the sensor’s stem enables the sensor to be used for direct measuring of the temperature in ducts and also ensures quick response of the sensor to changes in temperature. The standard operating temperature range is -30 to 130 °C. The sensors can be utilised for any control systems that are compatible with sensing element output signals or output signals quoted in the table of sensing element types. Easy mounting of the temperature sensor is ensured by the unique “S head” design invented by SENSIT s.r.o.

The sensors are designed to be operated in a chemically non-aggressive environment.

ACCESSORIES

DECLARATION, CERTIFICATION, CALIBRATION

  • Manufacturer provides EU Declaration of Conformity.
  • Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard) or in an Accredited laboratory.



Technické parametry


Sensor type
(K - with connector)
NS 160
Ns 160K
NS 161
NS 161K
NS 162
NS 162K
Type of sensing element Ni 1000/5000 Ni 1000/6180 Ni 891
Measuring range -30 to 130 °C (connection head ambient temperature -30 to 100 °C)
Maximum measuring DC current 1 mA 1 mA 1 mA


Sensor type
(K - with connector)
PTS 160
PTS 160K
PTS 260
PTS 260K
PTS 360
PTS 360K
HS 120
HS 120K
Type of sensing element Pt 100/3850 Pt 500/3850 Pt 1000/3850 thermistor NTC 20 kΩ
Measuring range -50 to 130 °C (connection head ambient temperature -30 to 100 °C) -30 to 130 °C
Maximum measuring DC current 3 mA 1,5 mA 1 mA 10 mW *)

*) maximum power consumption

Sensor type
(K - with connector)
NS 560
NS 560K
NS 760
NS 760K
Note
Type of sensing element Pt 1000/3850 Pt 1000/3850
Output signal 4 to 20 mA 0 to 10 V
Measuring ranges -50 to 50 °C
-30 to 60 °C
0 to 35 °C
0 to 100 °C
0 to 150 °C

-30 to 60 °C
0 to 35 °C
0 to 100 °C 0 to 150 °C
ambient temperature around the connection head -30 to70 °C
Power supply (U) 11 to 30 V DC 15 to 30 V DC recommended value 24 V DC
Load resistance 150 Ω for power supply 12 VDC
700 Ω for power supply 24 VDC
> 10 kΩ
Output signal
-sensing element break
> 24 mA > 10.5 V
Output signal
- sensing element short
< 3.5 mA ~ 0 V

**)According to the customer‘s requirement, it is possible to provide a customized measuring range from -40 to 150 °C; the minimum span of the range must be 35 °C (e.g. -20 to 15 °C; -30 to 80 °C)

OTHER PARAMETERS
Accuracy class Ni sensing elements: B class, Δt = ± (0.4 + 0.007t), for t ≥ 0; Δt = ± (0.4 + 0.028|t|), for t ≤ 0 in °C;
Pt sensing elements: B class according EN 60751, Δt = ± (0.3 + 0.005|t|) in °C
NTC 20 kΩ: ± 1 °C for the range 0 °C to 70 °C
Measuring error
for NS 560, NS 760
NS 560, NS 760 < 0.6 % of the measuring range, minimum 0.5 °C
Sensor connection according to the wiring diagram
Standard lenght of stem L1 50, 100, 160, 220 mm
Diameter of the stem 4 ± 0.1 mm
Standard thread G 1/2"
Nominal pressure of the stem PN 25
Time response τ0,5 < 9 s (in flowing water at 0.4 m.s-1)
Recommended wire cross section
-sensors with the grommet
0.35 to 1.5 mm2
Type of connector in the head
-sensors with connector
RSFM4 - Lumberg
Insulation resistance > 200 MΩ at 500 V DC, 25° ± 3 °C; humidity < 85 %
Ingress protection IP 65 in accordance with EN 60529
Material of the sensor stem stainless steel DIN 1.4301
Material of connection head POLYAMIDE
Operating conditions ambient temperature:-30 °C to 100 °C; -30 °C to 70 °C with a converter
relative humidity: max. 100 % (at the ambient temperature 25 °C)
atmospheric pressure: 70 to 107 kPa
Weight approximately 0.15 kg


MAXIMUM FLOW VELOCITY OF THE MEASURED MEDIUM - AIR AND WATER VAPOUR / WATER [m.s-1]
Length of the stem up to 60 mm > 60 to 100 mm >100 to 160 mm > 160 to 220 mm
Values for diameter of the stem 4 mm 8 / 0.8 6 / 0.6 3.2 / 0.4 1.0 / 0.25

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

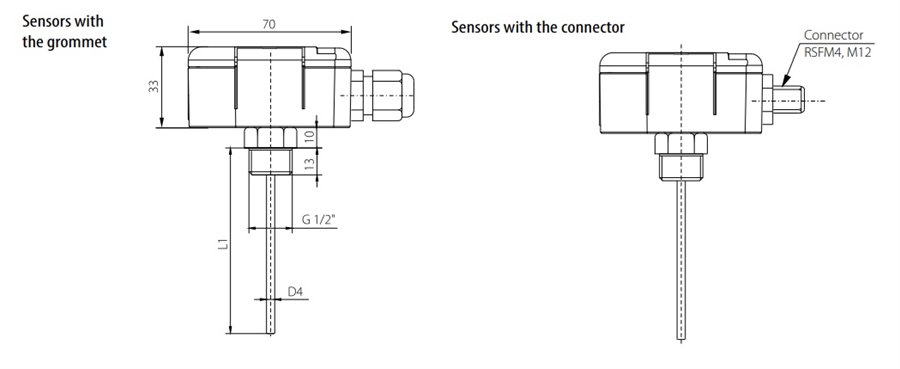

Rozměrový náčrt

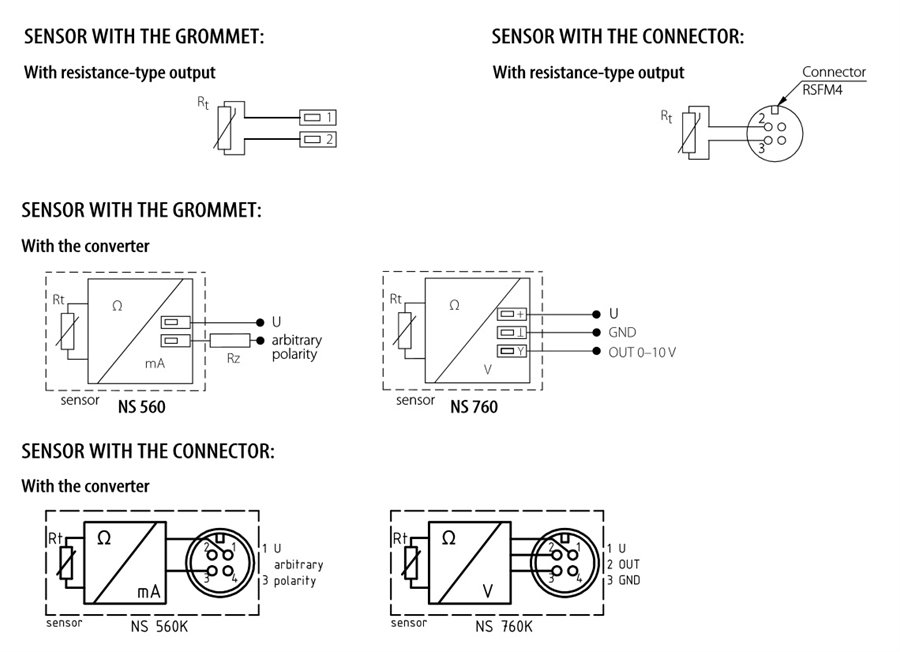

Schéma zapojení

Modifikace

  • accuracy class A (with the exception of sensors Ni 10000/5000, Ni 10000/6180, T1 = Ni 2226, thermistor NTC 20 kΩ)
  • option of three- or four- wire connection
  • variable stem design - L1 length, materials, diameters, option of thread design
  • possibility to provide custom temperature ranges for temperature sensors with converter
