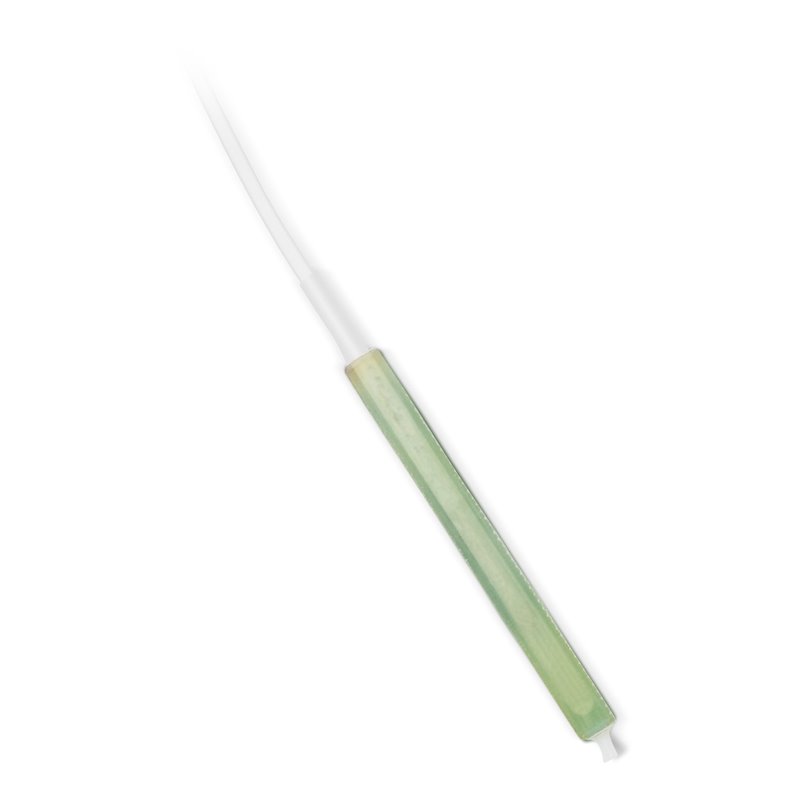

Electromotor stator slot
temperature sensor TR 097VA

Electromotor stator slot
temperature sensor TR 097VA

-40 to 180 °C

Electromotor stator slot
temperature sensor TR 097VA
On request



These resistance temperature sensors and thermocouple temperature sensors are designed to measure the temperature of gaseous or solid substances. The temperature range in working mode is -40 to 180 °C - temperature class H. The sensors can be used for any control systems compatible with the types of sensing elements or output signals listed in the table of technical parameters. The sensors meet the ingress protection of IP 65 according to EN 60 529, as amended. The temperature sensor is placed in a special plastic case from SCID - sklotextit material ensuring high electric strength – the sensors meet the requirements on electric strength of 5.0 kV DC and can therefore be used also for measuring the temperature of electric motor windings, etc.

The sensors are designed to be operated in a chemically non-aggressive environment. The use must be chosen with regard to the temperature, chemical and mechanical resistance of the temperature sensor.



  • Manufacturer provides EU Declaratin of Conformity.
  • Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard, as amended) or in an Accredited laboratory.

Technické parametry

Sensor type TR 097VA
Temperature range -40 to 180 °C temperature class H
Type of sensing element* all types
(Pt 100, Pt 1000, Ni 1000, Ni 10000,Ni 2226=T1, NTC, PTC, KTY, TSiC, DALLAS, TC K, TC J, TC T and so on)
Ingress protection IP 65 in accordance with EN 60 529, as amended
Electric strenght 5 kV (higher acc. to requirement)
Case dimension 63 x 6 x 30 mm (other acc. to requirements)
Case material SCID - sklotextit
Lead in cable PTFE shielded 4xAWG30

*) Certain technical specifications of thermocouple sensors (lead wires, IP rating, etc.) may differ with different types.
Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

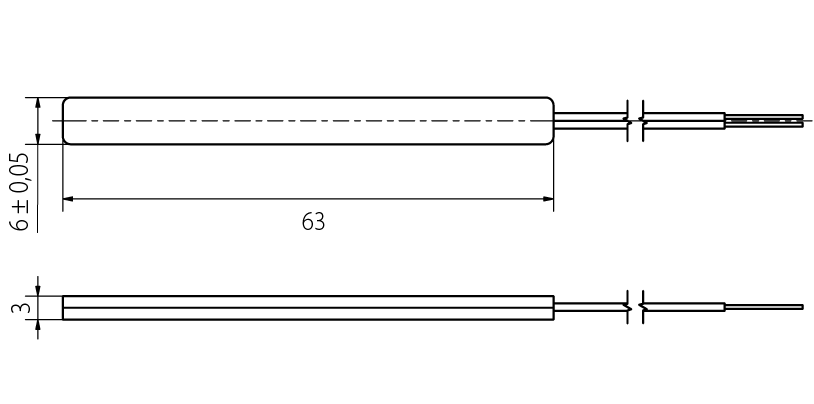

Rozměrový náčrt

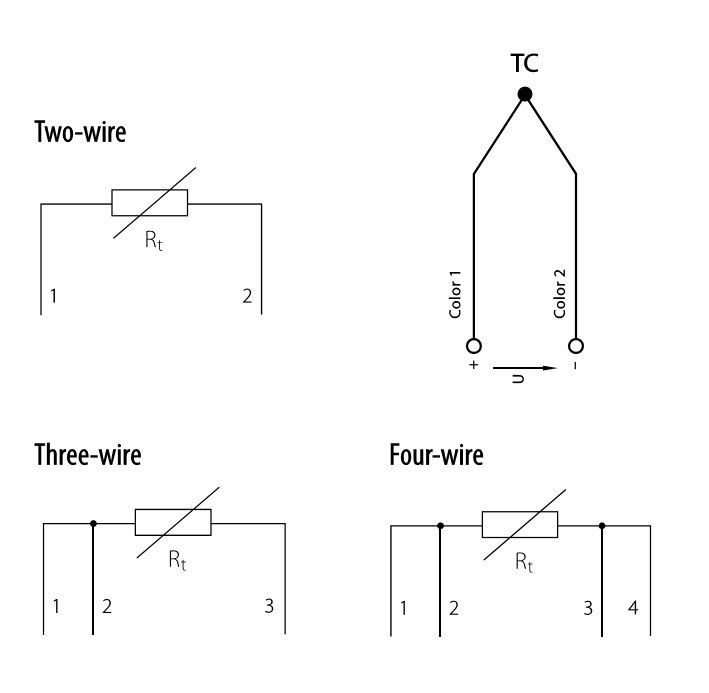

Schéma zapojení
