Direct connector RKT
with cable 5 m FEMALE

Documentation (PDF) Ask Question
Nacházíte se:
Direct connector RKT
with cable 5 m FEMALE
On request

BBB

--%>

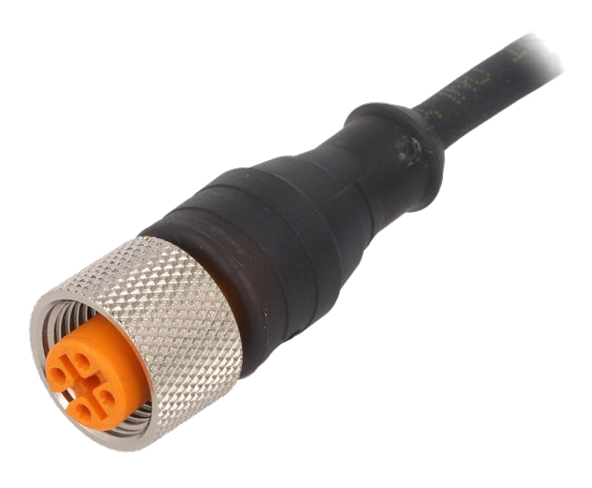

Rectangular conector RKT with cable 5 m. It is accessories to temperature sensors with connection head and connector series:

  • S 110 series - temperature sensor for out door use
  • S 120 series - temperature sensors with stem and plastic connection head (immersion temperature sensors)
  • S 140 series - contact temperature sensors with plastic connection head
  • S 160 series - temperature sensors with plastic connection head and fast response
  • S 180 series - temperature sensors with stem and stainless steel connection head
  • S MINI series - temperature sensorts MINI series
  • and cable temperature sensors with connector ELST 4012 type





Technické parametry

Type RKT
Temperature range -25 °C to 80 °C
Materials of Housing / Molded body TPU
Insert TPU
Contact CuSn (12 poles: CuZn),
pre-nickeled and 0.3 microns gold-plated
Protection IP 67 - Only in locked position with its proper counterparts.
Contact resistance ≤ 5 mΩ
Nominal current at 40°C 3–5 poles 4 A, 6–12 poles 2 A
Insulation resistance > 109 Ω

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

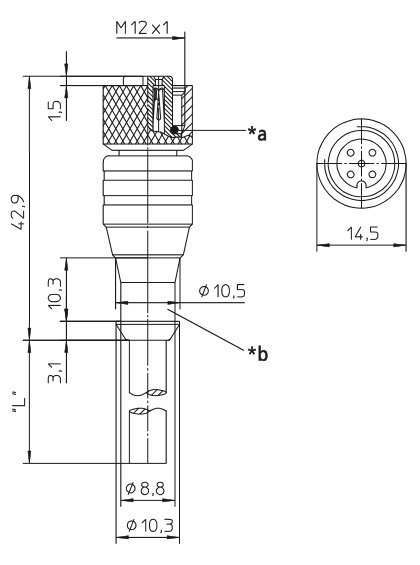

Rozměrový náčrt

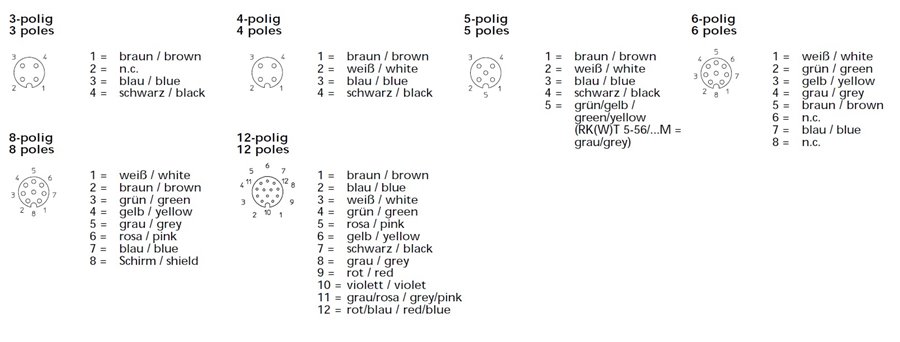

Schéma zapojení

Modifikace

Soubory ke stažení

040.11en.pdf 040.11en.pdf
Otevřít   Stáhnout
