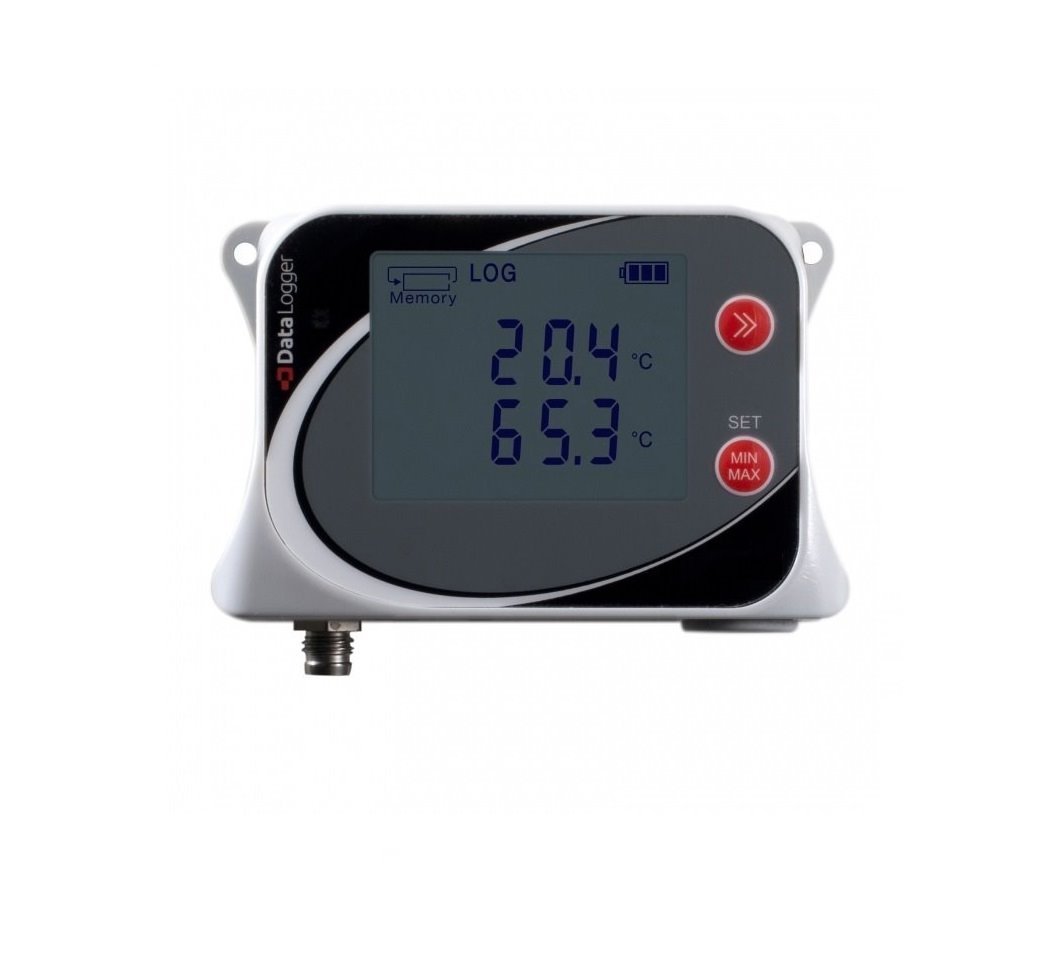

DATALOGGER U3631 - Temperature and humidity data logger with connector for another temperature probe

Nacházíte se:

CONFIGURATOR

CONFIGURE AND REQUEST

22795

BBB

--%>

Data logger U3631 is designed to record temperature and humidity from built-in sensors and from one external temperature probe Pt1000.

The recording is performed in a non-volatile electronic memory. The data can be transferred to a PC via USB-C.

In case of exceeded set limits alarms are indicated by LED, LCD and acoustically by built-in beeper.

Recorder includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.

Included in delivery:

U3631
Manual
Traceable calibration certificate
Technical support at discussion forum
FREE analytical software COMET Vision

ACCESSORIES

you can find here

Main applications of data logger:

Food and beverage industry (HACCP)
Pharmaceutical industry
Horticulture and cultivation of plants
HVAC (heating, ventilation, air conditioning, cooling)
Building and energy management
Research and development
Laboratories (GLP)
Warehouses
Technological processes
Museums, archives, galleries

Technické parametry

Type of datalogg	U3121
Measured Value	Temperature Relative humidity Counted values (dew point…)
TEMPERATURE SENSOR
Measuring range	-30 to +70 °C
Accuracy	± 0.4 °C
Resolution	0.1 °C
TEMPERATURE SENSOR - external probe Pt1000
Measuring range	-90 to +260 °C
Accuracy	± 0.2 °C (-50 to +100 °C); ± 0.2 % from reading from +100 to +260 °C ± 0.4 % from reading from -90 to -50 °C
Resolution	0.1 °C
HUMIDITY SENSOR
Measuring range	0 to 100 % RH
Accuracy	± 1.8 % RH
Resolution	0.1% RH
DEW POINT
Measuring range	-90 to +70 °C
Accuracy	± 1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution	0.1 °C
GENERAL TECHNICAL DATA
Operating temperature	-30 to +70 °C
Channels	internal temperature and humidity sensor, 1x external temperature probe
Memory	500,000 values in noncyclic logging mode 350,000 values in cyclic record mode
Recording interval	adjustable from 1 s to 24 h
Display and alarm refresh	adjustable 1 s, 10 s, 1 min
Recording mode	noncyclic - data logging stops after filling the memory cyclic - after filling memory oldest data is overwritten by new
Real time clock	year, leap year, month, day, hour, minute, second
Power	Lithium battery 3.6V, size AA
Protection class	IP 67 in accordance with EN 60529
Dimensions	61 x 93 x 32 mm
Weight (including batteries)	approx. 120 g
Warranty	3 years

● accurate measurement of temperature, humidity, dew point, events,
● nonvolatile memory for 500 000 records
● acoustic and 3-colours LEDs alarm
● easy to use software for data analysis on PC
● communication interfaces - USB-C
● rugged design
● long battery life up to 6 years

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

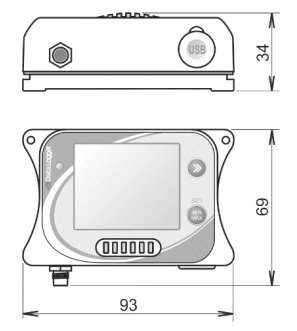

Rozměrový náčrt
