DATALOGGER U3121 - Temperature and humidity data logger for external probe

DATALOGGER U3121 - Temperature and humidity data logger for external probe

DATALOGGER U3121 - Temperature and humidity data logger for external probe

CONFIGURATOR

CONFIGURE AND REQUEST

22790
__KOUPIT__
__NABIDKA__
__JINY DOTAZ__

BBB

--%>

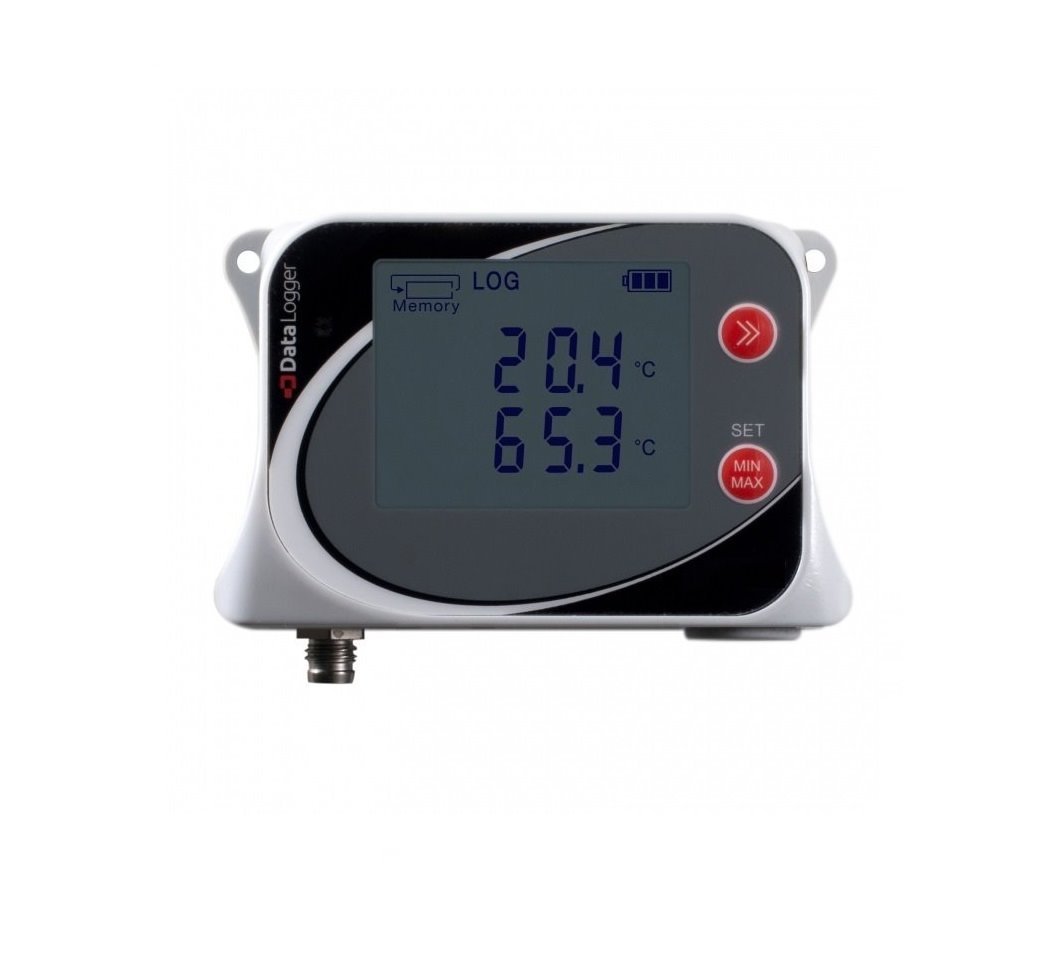

Data logger U3121 is designed to record temperature and humidity from external probe.

The recording is performed in a non-volatile electronic memory. The data can be transferred to a PC via USB-C.



In case of exceeded set limits alarms are indicated by LED, LCD and acoustically by built-in beeper.

The temperature and humidity probe is not included in delivery, probe of the appropriate length and design you can choose in optional accessories.

The device includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.

Included in delivery:

  • U3121
  • Manual
  • Traceable calibration certificate
  • Technical support at discussion forum
  • FREE analytical software COMET Vision



ACCESSORIES

  • you can find here

Main applications of data logger:

  • Food and beverage industry (HACCP)
  • Pharmaceutical industry
  • Horticulture and cultivation of plants
  • HVAC (heating, ventilation, air conditioning, cooling)
  • Building and energy management
  • Research and development
  • Laboratories (GLP)
  • Warehouses
  • Technological processes
  • Museums, archives, galleries



Technické parametry

Type of datalogg U3121
Measured Value Temperature
Relative humidity
Counted values (dew point…)
TEMPERATURE SENSOR
Measuring range according to the connected probe Digi/E
Accuracy according to the connected probe Digi/E
Resolution 0.1 °C
Response time t90 of temperature measurement (temperature step 20 °C, air flow approximately 1m/s) 8 min
HUMIDITY SENSOR
Measuring range according to the connected probe Digi/E
Accuracy according to the connected probe Digi/E
Resolution 0.1% RH
DEW POINT
Measuring range according to the connected probe Digi/E
Accuracy according to the connected probe Digi/E
Resolution 0.1 °C
GENERAL TECHNICAL DATA
Operating temperature -20 to +60 °C
Channels 1x connectable temperature+humidity probe
Memory 500,000 values in noncyclic logging mode
350,000 values in cyclic record mode
Recording interval adjustable from 1 s to 24 h
Display and alarm refresh adjustable 1 s, 10 s, 1 min
Recording mode noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
Real time clock year, leap year, month, day, hour, minute, second
Power Lithium battery 3.6 V, size AA
Protection class IP 67 in accordance with EN 60529
Dimensions 61 x 93 x 32 mm
Weight (including batteries) approx. 120 g
Warranty 3 years

● accurate measurement of temperature, humidity, dew point, events,
● nonvolatile memory for 500 000 records
● acoustic and 3-colours LEDs alarm
● easy to use software for data analysis on PC
● communication interfaces - USB-C
● rugged design
● long battery life up to 6 years

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

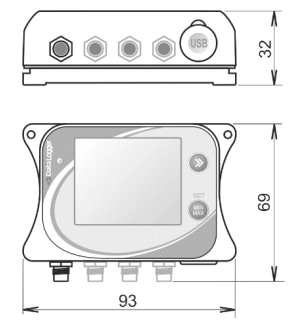

Rozměrový náčrt
