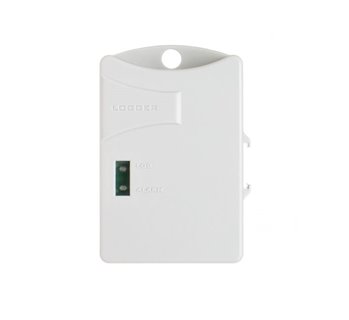

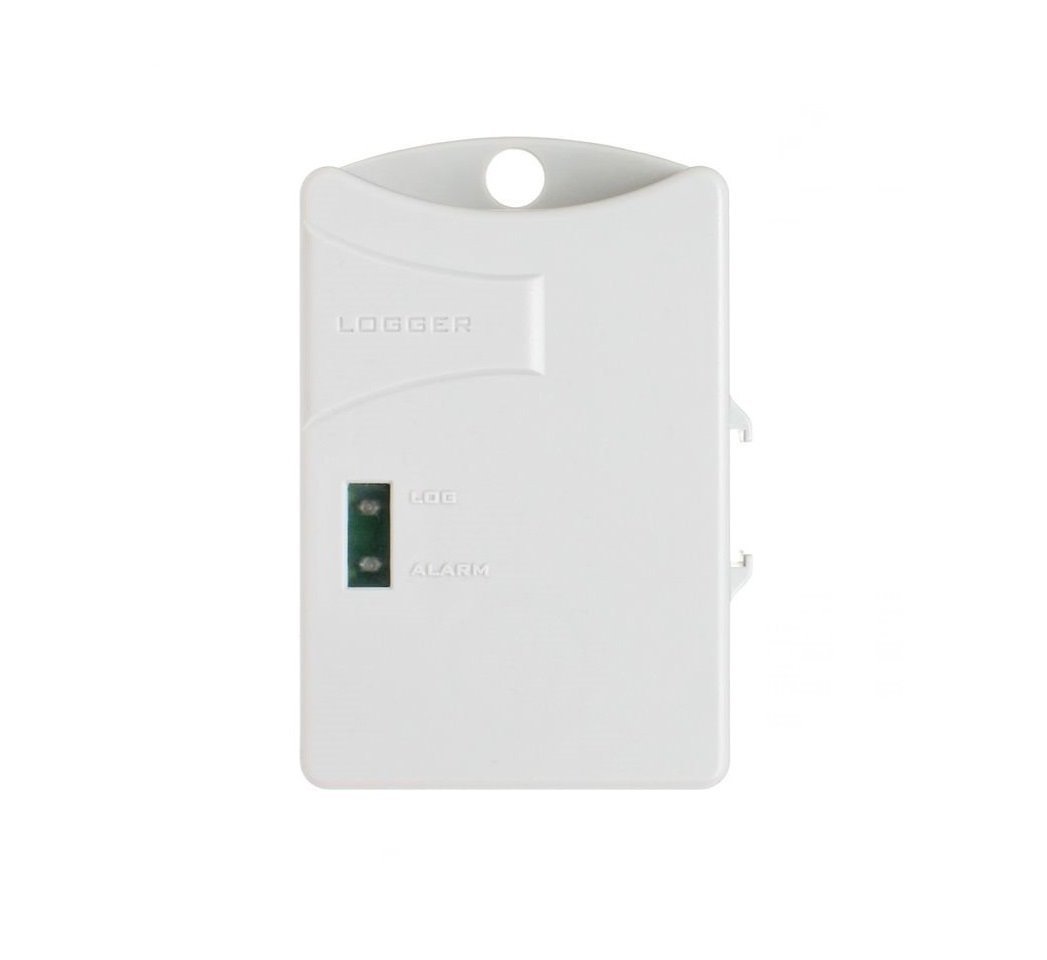

DATALOGGER R0110E - WITH INNER SENSOR

DATALOGGER R0110E - WITH INNER SENSOR

DATALOGGER R0110E - WITH INNER SENSOR

CONFIGURATOR

CONFIGURE AND REQUEST

22733
__KOUPIT__
__NABIDKA__
__JINY DOTAZ__

BBB

--%>

Temperature dataloggers R0110E is designed for record of temperature. Values are stored to a non volatile electronic memory. Data transfer to the personal computer for further analysis is performed via USB, RS232, GSM.

The device includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.

For communication with the PC must be from Optional accessories ordered USB adapter or COM adapter or start/stop magnet if is needed to control logging the other way than directly from computer.

Included in delivery

  • R0110E
  • Lithium battery 3,6V
  • Manual
  • Traceable calibration certificate
  • Technical support at discussion forum
  • FREE analytical software COMET Vision

ACCESSORIES

  • you can find here

Main thermometer applications:

  • Transport of food or pharmaceuticals
  • Food and beverage industry (HACCP)
  • Pharmaceutical industry
  • Blood stations, pharmacies
  • Horticulture and cultivation of plants
  • HVAC (heating, ventilation, air conditioning, cooling)
  • Building and energy management
  • Research and development
  • Laboratories (GLP)
  • Warehouses
  • Technological processes
  • Museums, archives, galleries
  • TÜV SÜD certified to conform to EN 12830,
  • Class 1 and EN 13486, Class 1 for the transport of food



Technické parametry

Type of datalogger R0110E
Measured Value Temperature
TEMPERATURE SENSOR
Temperature Measuring Range -40 to 80 °C
Accuracy of temperature measurement ± 0.6 °C (-30 to +30 °C)
± 0.8 °C (+30 to +70 °C)
Resolution 0.1 °C
GENERAL TECHNICAL DATA
Operating temperature -40 to +80 °C
Channels internal temperature sensor
Memory 32,000 values (non-cyclic record)
Recording interval adjustable from 10 s to 24 h
Display and alarm refresh each 10 s
Recording mode noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
Real time clock year, leap year, month, day, hour, minute, second
Power lithium battery 3.6 V; size AA
Protection class IP 67 in accordance with EN 60529
Dimensions 93 x 64 x 27 mm
Weight (including batteries) approx. 100 g
Warranty 3 years

● accurate measurement of Temperature, Humidity, Dew point, Current (4 – 20 mA), Voltage (0 – 5 V, 0 – 10 V), Pulses, Events
● nonvolatile memory for 32 000 values
● indication of alarm conditions via email, SMS or visually
● software for data analysis on PC
● communication interfaces - USB, RS232, GSM modem, Ethernet
● rugged design with protection up to IP67
● battery life up to 7 years

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

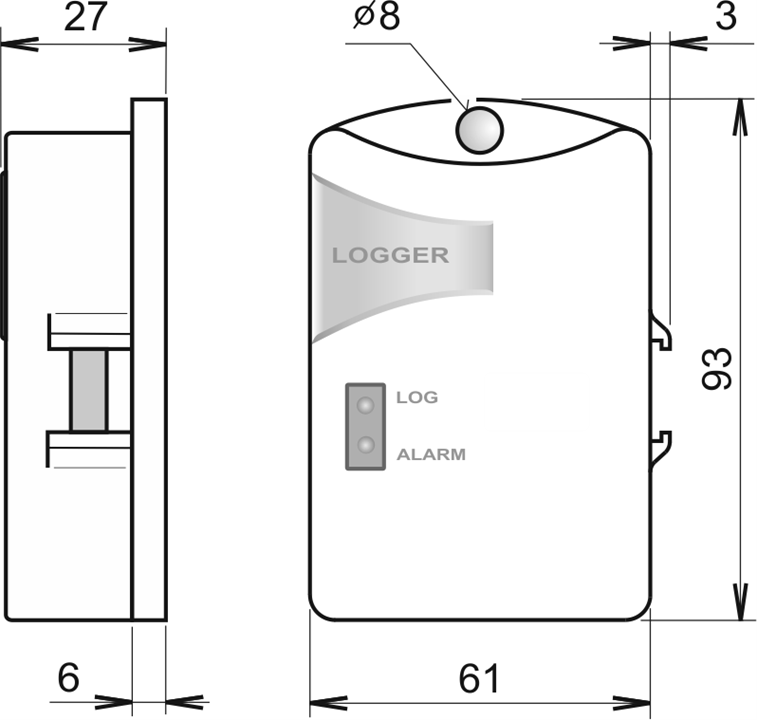

Rozměrový náčrt
