D0211 SINGLE CHANNEL THERMOMETER Ni1000/Pt1000

D0211 SINGLE CHANNEL THERMOMETER Ni1000/Pt1000

D0211 SINGLE CHANNEL THERMOMETER Ni1000/Pt1000

CONFIGURATOR

CONFIGURE AND REQUEST

22926
__KOUPIT__
__NABIDKA__
__JINY DOTAZ__

BBB

--%>

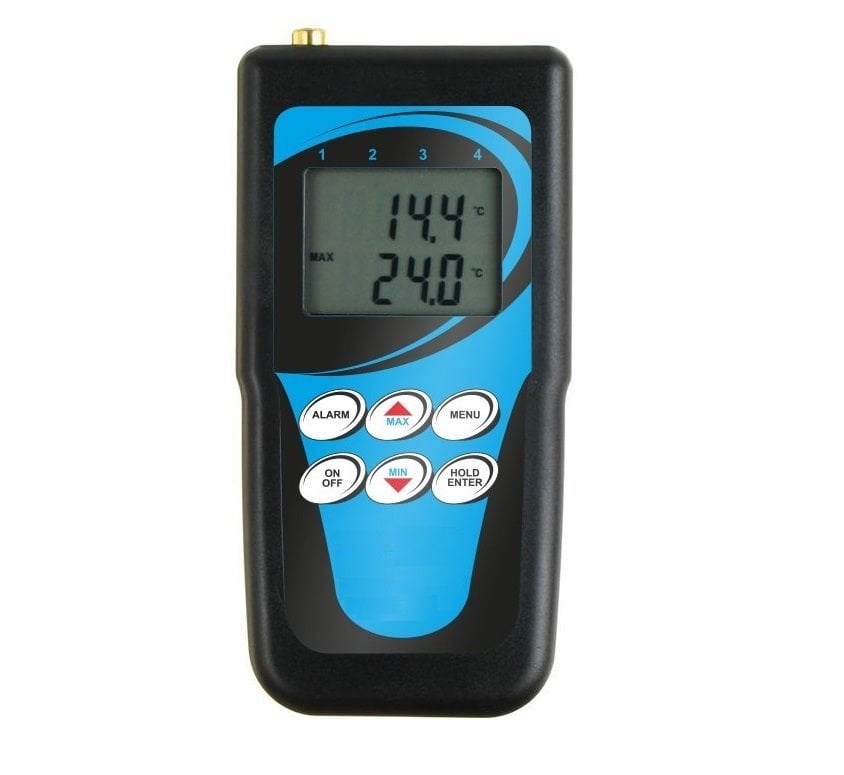

Thermometer D0211 is designed for direct measurement and datalogging of temperature into the internal non-volatile memory.

Free PC program enables to transfer recorded data to the personal computer for consequent evaluation. LCD backlight.

Instrument is connected to the PC through included USB cable only for data trasfer from the memory. During connection with the PC no measurement and record is enabled.

Included in delivery:

  • Traceable calibration certificate
  • 9V battery
  • Instruction manual
  • Plastic transport case
  • Connector for external ac/dc adapter
  • mini USB cable
  • Self adhesive Dual Lock for easy installation
  • Free basic Windows software is ready to download at folder Download



Technické parametry

Type of thermometer D0211
Measured Value Temperature
Construction Type For External Temperature Probes
Temperature Measuring Range -200 to 500 °C
Data Logging Function Yes
Operating temperature range -30 to 65 °C
Temperature input RTD Pt1000-3850ppm; -200 to 500 °C
RTD Ni1000/6180ppm; -50 to 250 °C
Accuracy of Pt1000 input without external probe ± 0.3 °C from -50 to 100 °C
± 0.3 % from reading from +100 to 500 °C
± 0.6 % from reading from -200 to -50 °C
Accuracy of Ni1000 input without external probe ± 0.2 °C from -50 to 100 °C
± 0.2 % from reading from +100 to 250 °C
Power battery 9 V
Battery life 6 months typically
Real time clock year, leap year, month, day, hour, minute, second
PC interface USB
Sampling interval in data logging mode 10 s to 24 hours (18 adjustable intervals)
Total memory capacity up to 16000 recorded values
Data logging modes noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
Dimensions 141 x 71 x 27 mm
IP protection IP20
Weight including battery approximately 150 g
Warranty 3 years

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.
