CONTACT PROBES S 34/150
-30 °C to 150 °C

CONTACT PROBES S 34/150
-30 °C to 150 °C

CONTACT PROBES S 34/150
-30 °C to 150 °C

CONFIGURATOR

CONFIGURE AND REQUEST

21215
__KOUPIT__
__NABIDKA__
__JINY DOTAZ__

BBB

--%>

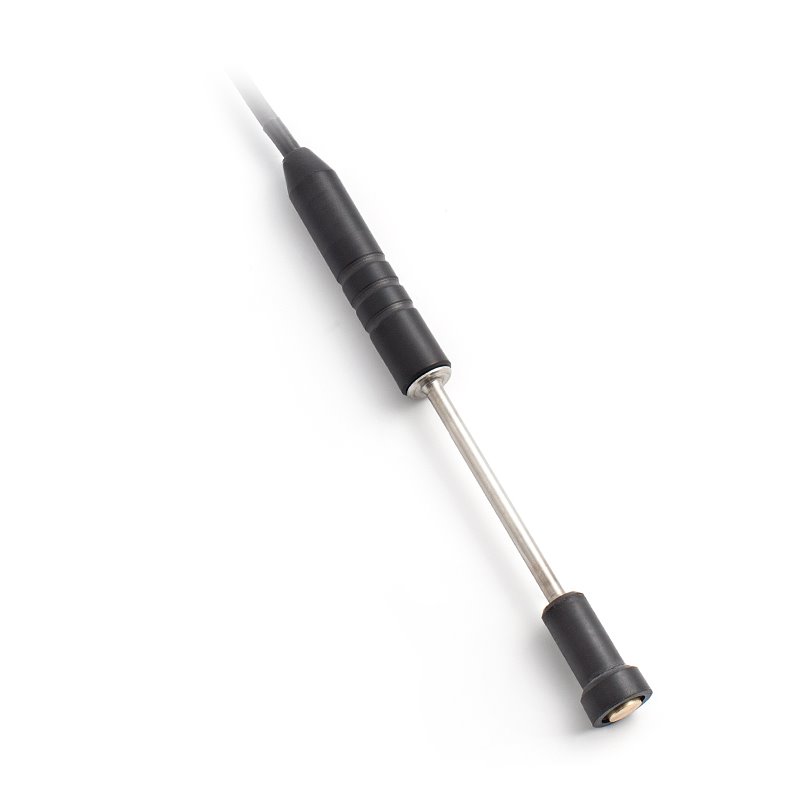

These resistance temperature probes S 34/150 are designed for contact measurement of solid sustances with flat and smooth surface. The temperature range for the use of the probe is -30 to 150 °C. The probes consist of a metal case terminated by a special cup to contract the measured surface, a handle and a lead-in cable. The resistance sensing element is located in a brass (duralumin) sup, which is firmly placed in a special rubber case reducing the influence of the surrounding environment on the measurement.

The temperature probes are intended for operation in chemically non-aggressive environment.

DECLARATION, CERTIFICATION, CALIBRATION

  • Manufacturer provides EU Declaration of Conformity.
  • Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard, as amended) or in an Accredited laboratory.



Technické parametry

Probe type S 34/150
Measuring range -30 to 150 °C
Type of sensing element* all types
(Pt 100, Pt 1000, Ni 1000, Ni 10000,Ni 2226=T1, NTC, PTC, KTY, TSiC, DALLAS, TC K, TC J, TC T and so on)
Ingress protection IP 43 in accordance with EN 60 529, as amended
Material of the case
stainless steel DIN 1.4301

Material of the contact cup

brass
Length of the case
70 mm
Material of the handle
teflon Ø 11 mm
Temperature resistance of the handle - 30 to 150 °C
Lead-in cable silicone shielded

*) Certain technical specifications of thermocouple sensors (lead wires, IP rating, etc.) may differ with different types.
Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

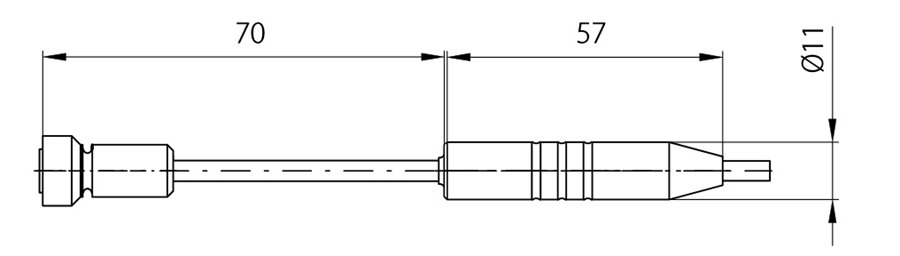

Rozměrový náčrt

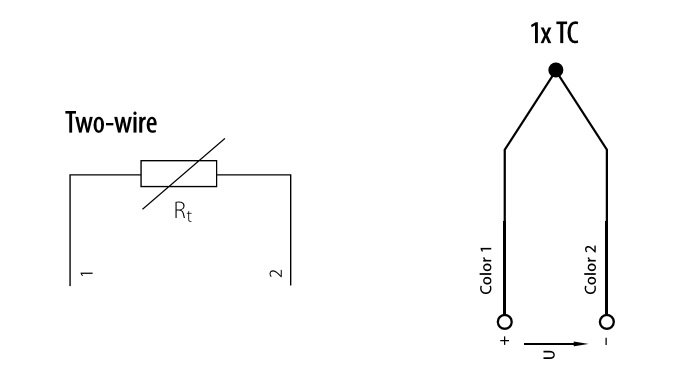

Schéma zapojení

Modifikace

Soubory ke stažení

S06.04en.pdf S06.04en.pdf
