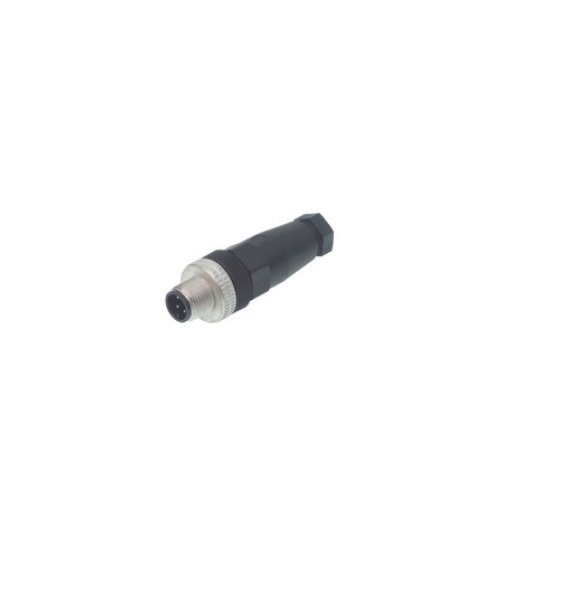

Connector ELST 4012
to the cable MALE

Connector ELST 4012
to the cable MALE

Connector ELST 4012
to the cable MALE
On request

BBB

--%>

Connector ELST 4012 is using by cable temperature sensors. Connector ELST 4012 is compatible with connector:

  •  connector on the cable is suittable for ease changing broken or mechanical destroyed temperature sensor.

Technické parametry

Type ELST 4012 PG7
Type of contact male
Number of contacts 4
Cable gland PG 7
Standard IEC 61076-2-101 (Ed. 1)/ IEC 60947-5-2
Housing Color black
Rated voltage AC/DC 250 V
Rated current 4 A
Type of termination screw
Suitable cables diameter 4 mm to 6 mm, max. 0.75 mm2
Contact material Cu Zn
Housing material PA
Protection class IP67
Temperature range -25 °C to 90 °C



Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

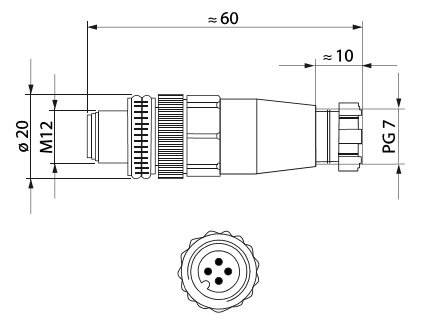

Rozměrový náčrt

Schéma zapojení

Modifikace

Soubory ke stažení

040.11en.pdf 040.11en.pdf
