Connector ELST 3008V
to the cable MALE

Documentation (PDF) Ask Question
Nacházíte se:
Connector ELST 3008V
to the cable MALE
On request

BBB

--%>

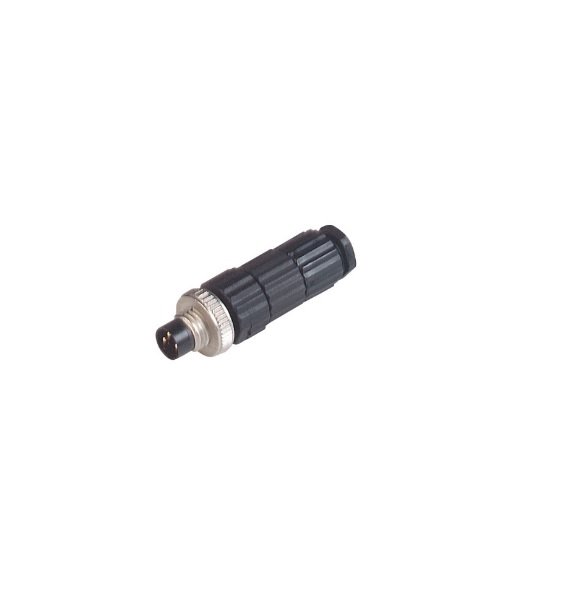

Connector ELST 3008V is using by cable temperature sensors. Connector ELST 3008V is compatible with connector ELKA 3008V. Connector on the cable is suittable for ease changing broken or mechanical destroyed temperature sensor.

Technické parametry

Type ELST 3008V
Type of contact male
Number of contacts 4
Cable gland M 9.5 x 1, diameter max. 5.5 mm
Standard IEC 61076-2-101 (Ed. 1)/ IEC 60947-5-2
Housing Color black
Rated voltage AC/DC 60 V
Rated current 4 A (2 A at 0.14 mm2)
Type of termination screw
Suitable cables diameter 4 mm to 5 mm / 0.14 mm2 to 0.34 mm2
Contact material Cu Zn
Housing material PA
Protection class IP67
Temperature range -25 °C to 75 °C



Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

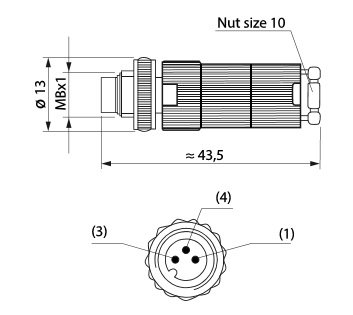

Rozměrový náčrt

Schéma zapojení

Modifikace

Soubory ke stažení

040.11en.pdf 040.11en.pdf
Otevřít   Stáhnout
