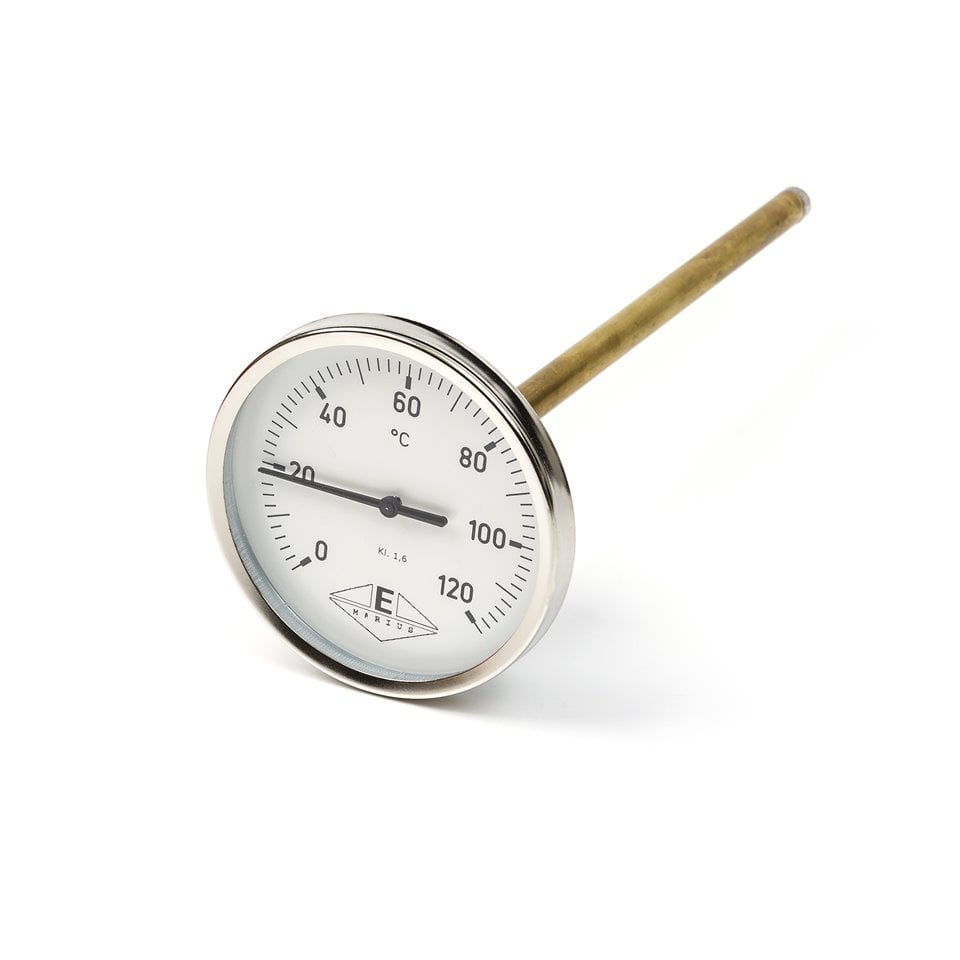

Bimetallic temperature sensors TBi series with thermowell

Bimetallic temperature sensors TBi series with thermowell

Bimetallic temperature sensors TBi series with thermowell
On request

BBB

--%>

Bimetallic temperature sensors of series TBi (TBi63,TBi80 and TBi100) are designed for the measurement of gaseous or liquid substances that are not corrosive to copper alloys.

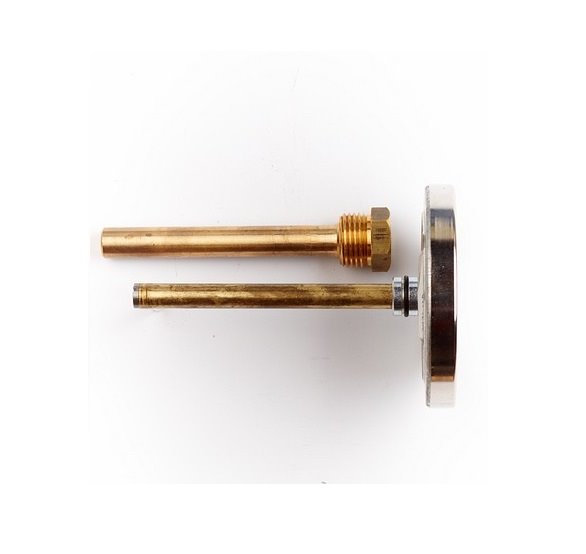

The combination of a bimetallic temperature sensor and a thermowell is suitable for the measurement of temperature in pipelines (the thermowell is part of the bimetallic temperature sensor). It is a cheap solution for indicative measurement of temperature in heating and industrial pipelines. The thermowell is part of the bimetallic temperature sensor.

Bimetallic temperature sensors can also be used for temperature measurement in smokehouses and other applications that require displaying of the current temperature without system processing.

Technické parametry

Sensor type TBi63 TBi80 TBi100
Measuring system bimetallic
Accuracy accuracy class 2 acc. to EN 13190, as amended
Scale range -30 to 50 °C
0 to 60 °C
0 to 120 °C
0 to 200 °C
Graduation 1 °C for ranges -30 to 50 °C, 0 to 50 °C, 0 to 60 °C,
0 až 120 °C
2 °C for range 0 to 200 °C
Standard length of the measuring stem 50, 63, 100, 160 and 250 mm
Dial material: aluminium
colour: white
scale: black
Průměr číselníku 63 mm 80 mm 100 mm
Case aluminium
Face cover glass / plastic
Thermowell connecting thread G 1/2" - The thermowell is part of the bimetallic temperature sensor
Thermowell material copper alloy - nominal pressure PN 6


Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

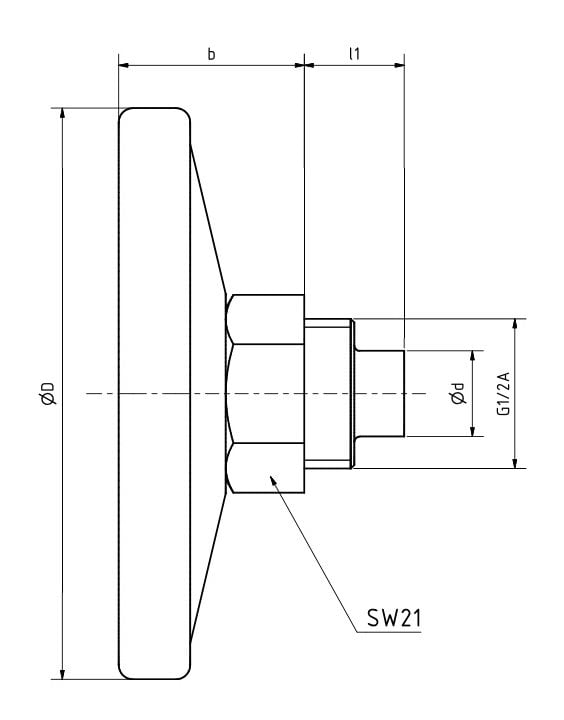

Rozměrový náčrt

Schéma zapojení

Modifikace

Soubory ke stažení

Related Products

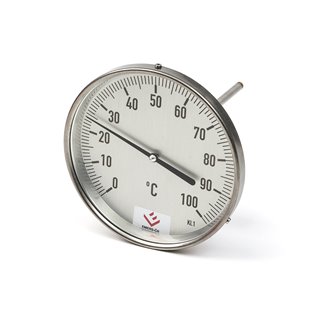

TEMPERATURE SENSORS WITH A STEM AND DISPLAY

Detail Detail

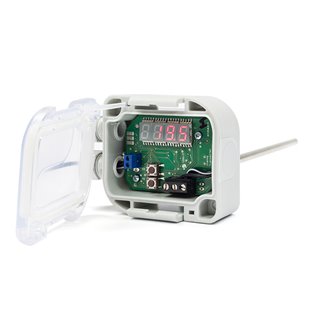

FAST RESPONSE TEMPERATURE SENSORS WITH DISPLAY
