BIMETAL SWITCHES WITH CABLE TSB 087

BIMETAL SWITCHES WITH CABLE TSB 087

Regulace ON/ OFF

BIMETAL SWITCHES WITH CABLE TSB 087

CONFIGURATOR

CONFIGURE AND REQUEST

22763
__KOUPIT__
__NABIDKA__
__JINY DOTAZ__

BBB

--%>

Series TSB 087  bimetal temperature switches are designed as two-state controllers (ON/OFF control) that compare the preset and instantaneous temperature and immediately disconnect the contact when a defined temperature is reached. The required temperature of switching is defined according to the customer’s needs by the selection of a bimetal thermal cutoff and cannot be changed.

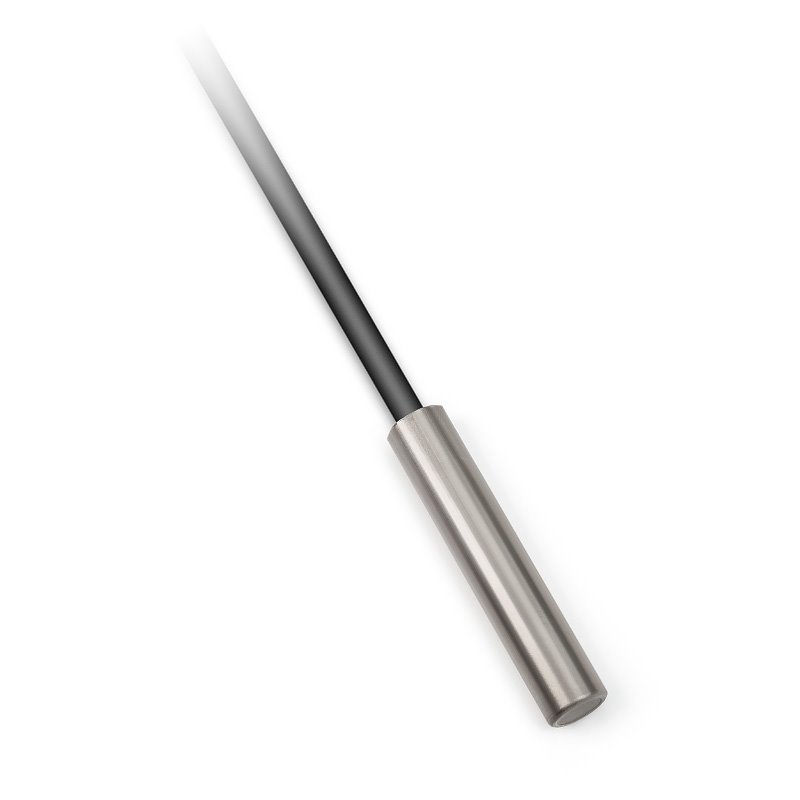

Bimetal switches TSB 087 series consist of a stainless steel housing containing a bimetal switch (thermal cutoff) and supply cable.

Bimetal switches TSB 087 series are used to signal exceeded temperature in various industrial applications, e.g. to protect transformers, power semiconductor stages, motors and powerful batteries. The bimetal switches TSB 087 series are intended for operation in chemically non-aggressive environments.

ACCESSORIES

  • screw with collet or cutting rings – if different lengths of stem immersion of the temperature sensor are set

DECLARATION, CERTIFICATION, CALIBRATION

  • Manufacturer provides EU Declaration of Conformity.
  • Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard, as amended) or in an Accredited laboratory.



Technické parametry

Temperature switch type TSB 087
Temperature switch sensing element Bimetal TMC – C1B
Temperature range (selection of the tripping temperature) 70 to 180 °C (in 10 °C steps)*
Switching tolerance ± 5°C

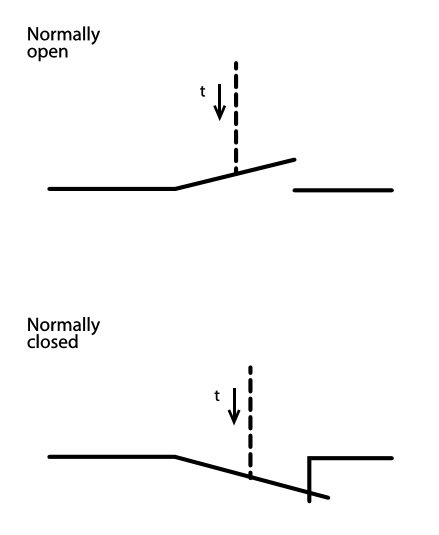

Contact design normally closed (snap action)
Maximum switching voltage/current 10.000 cycles 250 V AC / 2,5 A
3.000 cycles 250 V AC / 6,3 A
Case material stainless steel DIN 1.4301
Case diameter 10 mm
Case length 60 mm
Working range -25 to 180 °C
Ingress protection IP 67 in according with EN 60529, as amended
Insulation resistance in normal environment min. 20 MΩ
Dielectric strength of insulation 2 kVAC/1 min.
Contact connection 2wire
Supply cable silicone shielded 2 x 0.34 mm2
Weight
min. 0,2 kg acc. to design

*) in 5 steps on request

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

Rozměrový náčrt

Schéma zapojení

Modifikace

Soubory ke stažení

127.01en.pdf 127.01en.pdf

Related Products

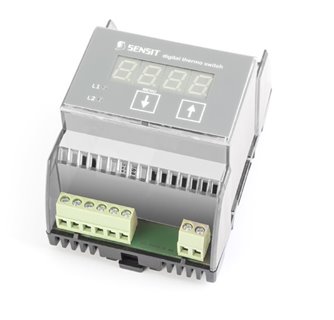

TEMPERATURE SWITCHES TSDD

Detail Detail

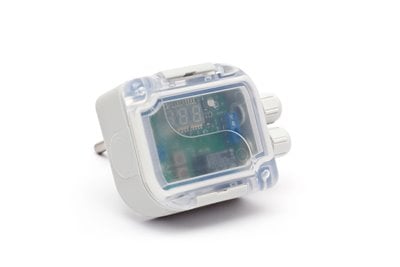

TEMPERATURE SWITCHES TSZ4H
