Bayonet adapter - BAH
Bayonet adapter - BAH
On request

BBB

--%>

 Bayonet adapter BAH is an accessory designed for temperature sensors with bayonet. Bayonet adapter is made of stainless steel 1.4301. These bayonet adapters are applied to the measured element or application by using thread (according to table of technical parameters) and are tightened by hole on bayonet adapter.

Bayonet adapter can be modified according to customer requirements.

Technické parametry

Technical parameters of bayonet adapter - BAH
Thread M/G Hole diameter d Length of adapter L Diameter of adapter D
M10 x 1 7 mm 25 - 100 mm 12 / 14
M12 x 1
M12
M14 x 1.5 7 / 9 mm
G 1/4
G 1/2

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

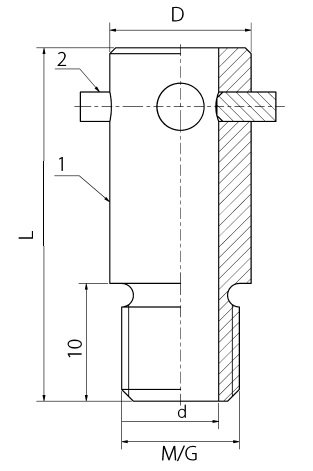

Rozměrový náčrt

Schéma zapojení

Modifikace

Soubory ke stažení

EN:Datasheet - Bayonet adapter - BAH EN:Datasheet - Bayonet adapter - BAH
