Technické parametry

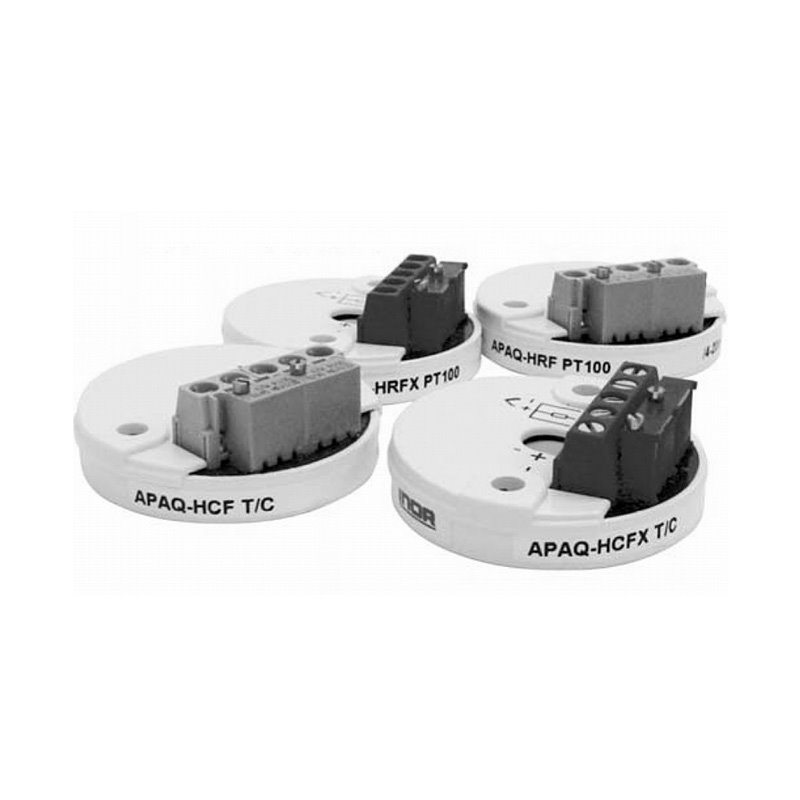

Corverter type | APAQ-H |
Use | APAQ-H is a series of multi-range two-wire temperature converters for thermometer heads |
Input | Pt100 (-HRF, -HRFX), thermocouple J, L, T, K, N (-HCF, -HCFX) |
Output | 4 to 20 mA |
Measuring range | Adjustable; -HRF, -HRFX: 50/100/150/200/300/400/500 °C |
-HCF, -HCFX: 10 to 50 mV continuously
|
Accuracy | -HRF, -HRFX: ± 0.15 % of the temperature range -HCF, -HCFX: ± 0.5 % to ± 1.0 % of the temperature range |
Maximum operating temperature range | -40 to 85 °C |
Power supply | 6.5 to 32 VDC (-HRF, -HCF), 8.5 to 30 VDC (-HRFX, -HCFX) |
-HRFX, -HCFX: designed for explosive environments
Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.
Rozměrový náčrt
Schéma zapojení
Soubory ke stažení
201.04en.pdf
