AMBIENT TEMPERATURE PROBE S 42/150

AMBIENT TEMPERATURE PROBE S 42/150

AMBIENT TEMPERATURE PROBE S 42/150

CONFIGURATOR

CONFIGURE AND REQUEST

21557
__KOUPIT__
__NABIDKA__
__JINY DOTAZ__

BBB

--%>

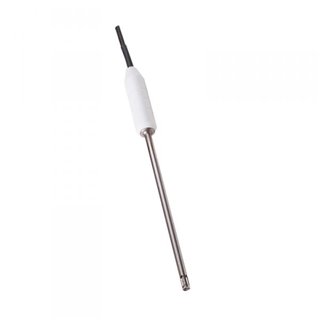

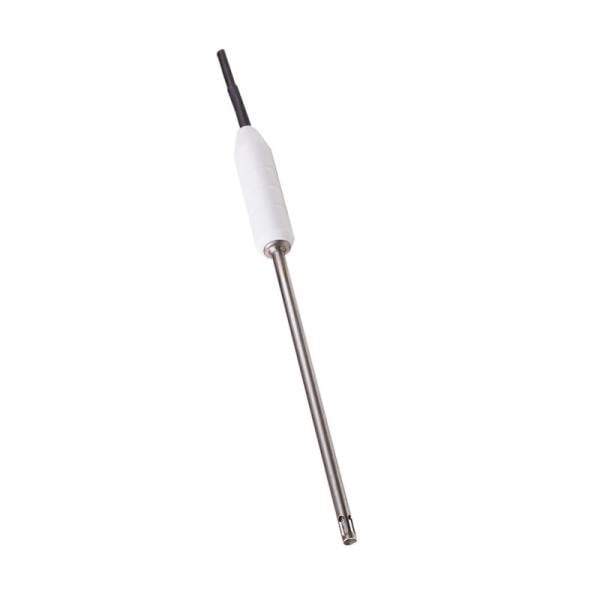

These resistance temperature probes S 42/150 are designed for contact measurement of gaseous substances. The temperature range for the use of the probe is 0 to 150 °C. The sensor consists of a metal open case (stainless steel DIN 1.4301), a handle and a lead-in cable. Material composition of the probe conforms to the requirements of Decree 38/2001 Coll. as amended. The design allows easy cleaning, thanks to which the temperature sensors can be used id the food industry. The resistance sensing element is located in the open case and it's providing the direct contact with gaseous substance to be measured and the quick response to change in temperature.

The sensors are intended for operation in chemically non-aggressive environment.

DECLARATION, CERTIFICATION, CALIBRATION

  • Manufacturer provides EU Declaration of Conformity.
  • Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard, as amended) or in an Accredited laboratory.



Technické parametry

Probe typeS 42/150
Measuring range0 to 150 °C
Type of sensing element*all types
(Pt 100, Pt 1000, Ni 1000, Ni 10000,Ni 2226=T1, NTC, PTC, KTY, TSiC, DALLAS, TC K, TC J, TC T and so on)
Ingress protectionIP 20 in accordance with EN 60529, as amended
Material of case
stainless steel DIN 1.4301
Diameter of case
5 mm
Length of case
120 mm
Material of the handle
teflon
Temperature resistance of the handleup to 250 °C
Lead-in cablesilicone shielded

*) Certain technical specifications of thermocouple sensors (lead wires, IP rating, etc.) may differ with different types.
Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

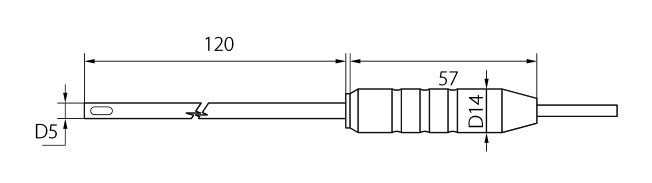

Rozměrový náčrt

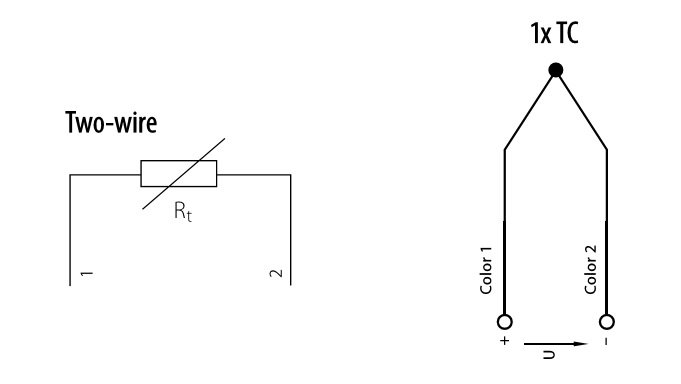

Schéma zapojení

Modifikace

Soubory ke stažení

S08.04en.pdf S08.04en.pdf
