PORTABLE DISPLAY UNITS SENSITEST 204C AND 2004C

PORTABLE DISPLAY UNITS SENSITEST 204C AND 2004C

PORTABLE DISPLAY UNITS SENSITEST 204C AND 2004C

BBB

--%>

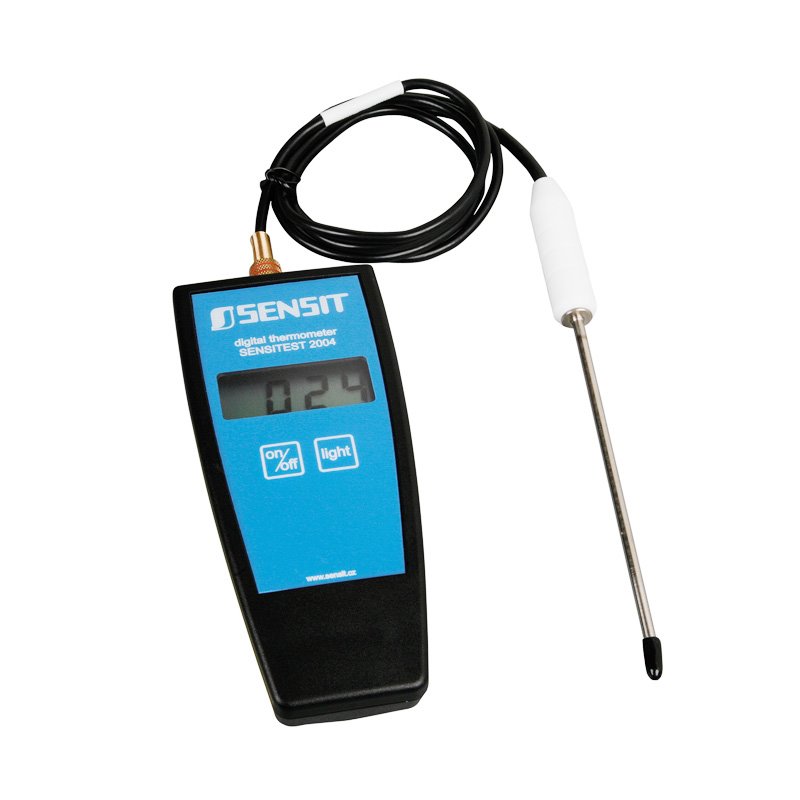

The sensItest 204c and 2004c digital thermometers are intended in connection with temperature probes to measure temperature of solid, liquid and gaseous substances. the corresponding temperature probes are connected to the device by means of a cIncH type connector. the probes using the ni 1000/6180 sensing element of accuracy class A can be connected to the one device. the sensItest 204c version is able to measure temperature with the resolution of 0,1 °c, whereas the sensItest 2004c is able to perform this function with the resolution of 1 °c.

Possible battery voltage drop is indicated by the warning notice “lo BAt”. Under reduced visibility conditions the display brightness can be enhanced by pushing the “light” pushbutton. the standard operating temperature range is determined by the type of the temperature probe used, the maximum operating temperature range is -30 to 250 °c. Using the sensItes 204c the maximum temperature of 199,9 °c can be displayed.

These digital thermometers are meant for operation in a chemically non-aggressive environment.

ACCESSORIES

  • wall clamping

DECLARATION, CERTIFICATION, CALIBRATION

  • EU Declaration of Conformity – in accordance with Act 22/1997 Coll. on technical requirements on products as amended.
  • Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard) or in an Accredited laboratory.



Technické parametry

Type of device SENSITEST 204C SENSITEST 2004C
Resolution 0.1 °C 1 °C
Type of sensing element Ni 1000/6180
Measurement speed 3 measurements per second
Maximum operating temperature range -30 °C to 199.9 °C -30 °C to 250 °C
Power supply (U)
9 V battery 6F22 or NiCd cell
Battery operation service hours 100 hours
Measurement accuracy of the
thermomether uncluding a probe
0 °C to 100 °C ± (0.3 % of measure temperature + 1 digit)
-30 °C to 250 °C ± (0.4 % of measure temperature+ 1 digit)
Display 3 and 1/2 digits - LCD, character height 13 mm
Ambitient temperature 0 °C to 50 °C
Connector CINCH
Material of the case ABS (UL94HB)
Color of the case black or white
Case dimensions 62.7 x 140 x 30.5 mm
Ingress protection IP 40 in accordance with EN 60 529
Weight 0.11 kg (without battery)



Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

Rozměrový náčrt

Schéma zapojení

Modifikace

Soubory ke stažení

090.11en.pdf 090.11en.pdf
