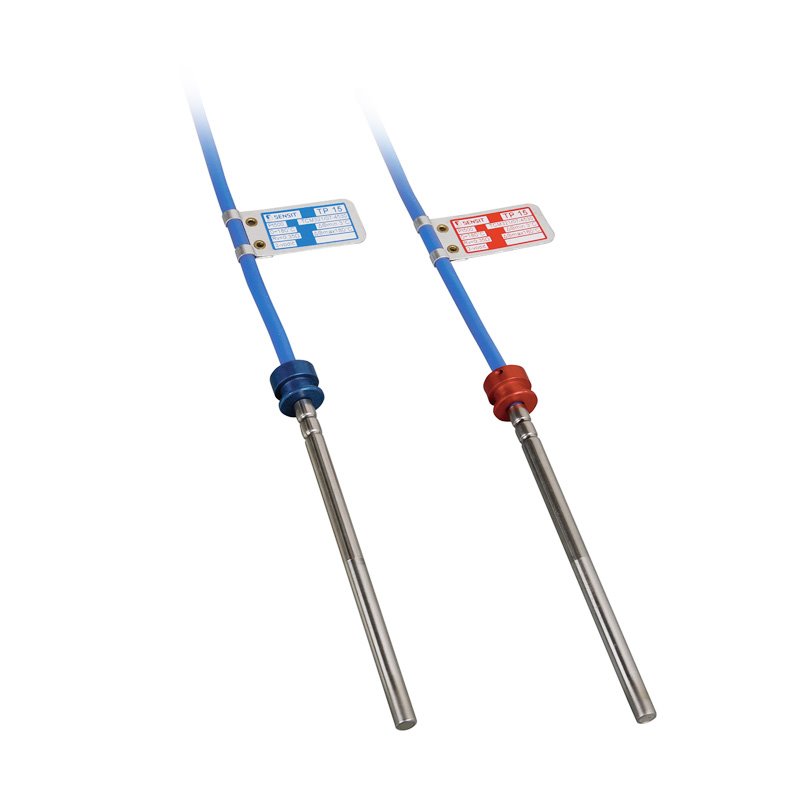

PAIRED TEMPERATURE SENSORS TP 15, TP 15A, TP 15B

PAIRED TEMPERATURE SENSORS TP 15, TP 15A, TP 15B

PAIRED TEMPERATURE SENSORS TP 15, TP 15A, TP 15B

CONFIGURATOR

CONFIGURE AND REQUEST

20952
__KOUPIT__
__NABIDKA__
__JINY DOTAZ__

BBB

--%>

These paired temperature sensors are used as component parts of the electrical heat-quantity meters. They are produced with the Pt 100, Pt 500 and Pt 1000 temperature sensing elements. The sensors are compatible with heat-quantity meters manufactured by SIEMENS, LANDIS+GYR, KAMSTRUP, ITRON, CODEA, COMAC CAL, SENSUS METERING and others. The sensors are intended for installation in thermowells. The standard operating temperature range is 0 to 180 °C.

The sensors are designed to operate in a chemically non-aggressive environment.

ACCESSORIES

DECLARATION, CERTIFICATES

  • The sensors are compliant with the requirements of the EN 60 751 and EN 1434 standards and have an EU-type examination certificate no. TCM 321/17 - 5471.
  • EU Declaration of Conformity – he sensors are manufactured in conformity with the Directive of the european Parliament and of the council 2014/32/EC on Measuring Instruments (so-called MID). All sensor dimensions and tolerances comply with the requirements of EN 1434, as amended.

Technické parametry

BASIC DATA
Type of sensing elementP1 100, Pt 500, Pt 1000
Maximum measuring DC current3 mA (Pt 100); 1.5 mA (Pt 500); 1 mA (Pt 1000)
Recommended measuring DC current1 mA (Pt 100); 0.5 mA (Pt 500); 0.3 mA (Pt 1000)
Measuring range0 to 180 °C
min.3 °C
max.180 °C
Accuracy class of individual sensorsB according to EN 60 751, as amended
Sensor connectionaccording to the wiring diagram


OTHER PARAMETERS
The standard length of the caseTP 15: 65*, 105, 140, 230 mm
TP 15A: 120/91; 175/146 mm
TP 15B: 120/91; 175/146 mm
Diameter of the case5,9 ± 0,3 mm
Material of the case and of the thernowellstainless steel DIN 1.4301
Lead-in cable2-wire non-shielded silicone 2 x 0.5 mm2
4-wire non-shielded silicone 4 x 0.25 mm2
Cable lenghtsaccording to EN 1434-2, art. 4.3.4, chart 2, as amended
Wire resistance0.07 Ω per 1 m of the 2-wire cable
Temperature resistance of the cable-25 to 180 °C
Ingress protectionIP 67 in accordance with EN 60 529, as amended
Insulation resistance> 100 MΩ at 100 V DC, 15 to 35 °C, relative humidity < 80%
Time responset0.5 < 8 s (in flowing water at 0.4 m.s-1)
t0.5 < 12 s in thermowell
Lengths of the thermowells65*, 105, 140, 230 mm (TP 15);
91, 146 mm (TP 15 A)
Thermowell threadG1/2", M 20 x 1.5
Maximum overpressure of the thermowell6.3 MPa

*) Producer does not recommend to use this length due to insufficient immersion of the sensor and inaccurate measurement.

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

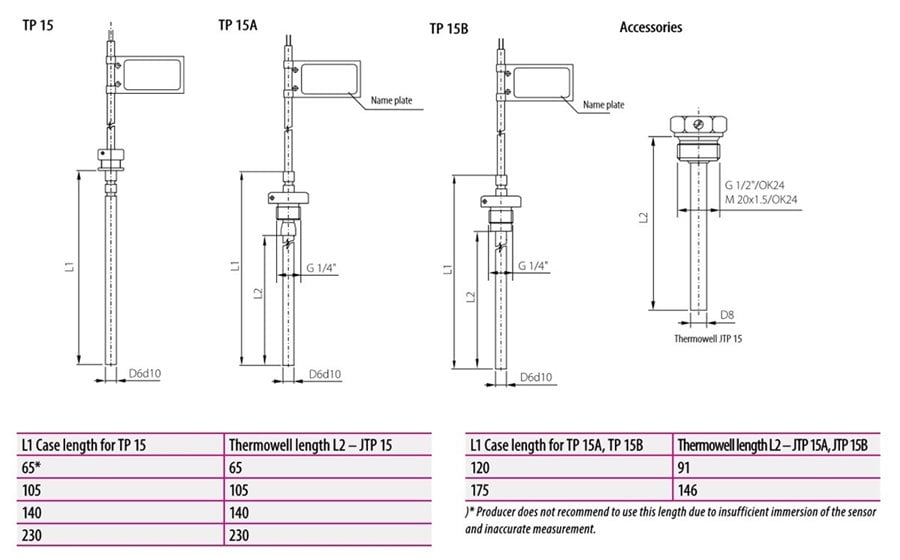

Rozměrový náčrt

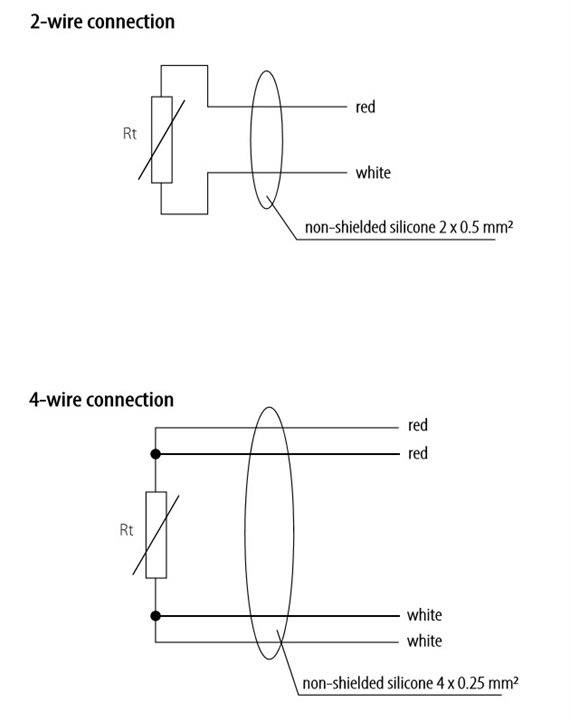

Schéma zapojení
