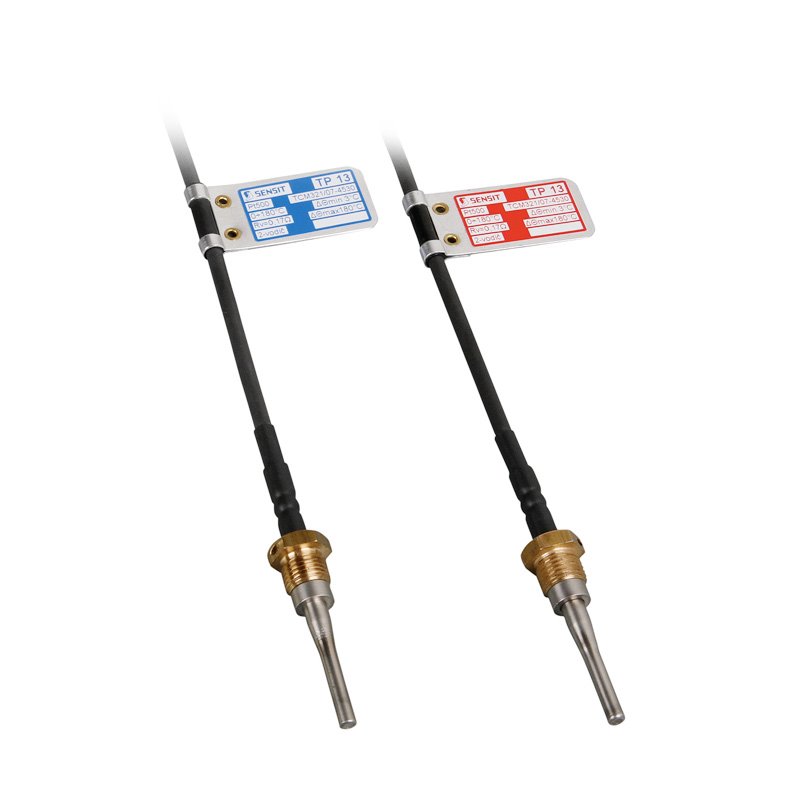

These paired temperature sensors are used as component parts of the electrical heat-quantity meters. They are produced with the Pt 100, Pt 500 and Pt 1000 temperature sensing elements. The structure of the case allows for direct installation of sensors into pipes without the need for a thermowell, thus ensuring a quick response to changes in temperature. The sensors are compatible with heat-quantity meters manufactured by SIEMENS, LANDIS+GYR, KAMSTRUP, ITRON, CODEA, COMAC CAL, SENSUS METERING and others. The standard operating temperature range is 0 to 180 °C or 0 to 150 °C.

The sensors are designed to operate in a chemically non-aggressive environment.

ACCESSORIES

  • sealing from TEMASIL material

DECLARATION, CERTIFICATES

  • The sensors are compliant with the requirements of the EN 60 751 and EN 1434 standards and have an EU-type examination certificate no. TCM 321/17 - 5471.
  • EU Declaration of Conformity – the sensors are manufactured in conformity with the Directive of the European Parliament and of the council 2014/32/EC on Measuring Instruments (so-called MID). All sensor dimensions and tolerances comply with the reqirements of EN 1434, as amended.

Technické parametry

BASIC DATA
Type of sensing elementPt 100, Pt 500, Pt 1000
Maximum measuring DC current3 mA (Pt 100); 1,5 mA (Pt 500); 1 mA (Pt 100)
Recommended measuring DC current1 mA (Pt 100); 0,5 mA (Pt 500); 0,3 mA (Pt 1000)
Measuring range0 to 180 °C
min.3 °C
max.180 °C
Accuracy class of individual sensorsB in accordance with EN 60 751, as amended
Sensor connectionaccording to the wiring diagram


OTHER PARAMETERS
Length of case27.5 mm
Diameter of case3.6 mm (TP 13); 5 mm (TP 13A)
Material of casestainless steel DIN 1.4301
Material of the fastening nutbrass
Lead-in cable2-wire shielded silicone 2 x 0.22 mm2
4-wire shielded silicone 4 x 0.15 mm2
Lengths of the cableaccording to EN 1434-2, art. 4.3.4, chart 2, as amended
Wire resistance0.16 Ω per 1 m of the 2-wire cable
Temperature resistance of the cable-25 to 180 °C
Ingress protectionIP 67 in accordance with EN 60 529, as amended
Insulation resistance> 100 MΩ at 100 V DC, 15 to 35 °C, relaitive humidity < 80 %
Time responseTP 13: t0.5 < 3 s (in flowing water at 0.4 m.s-1)
TP 13A: t0.5 < 8 s (in flowing water at 0.4 m.s-1)

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

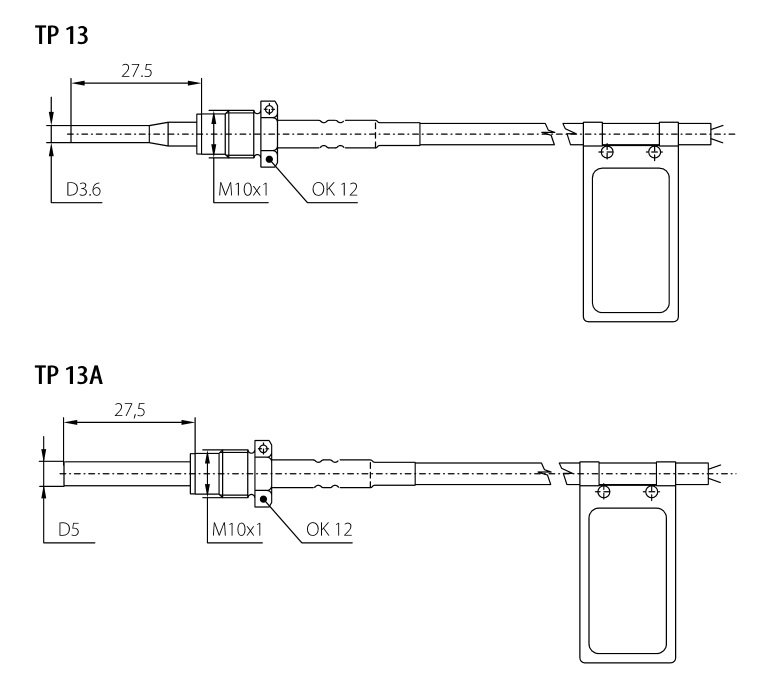

Rozměrový náčrt

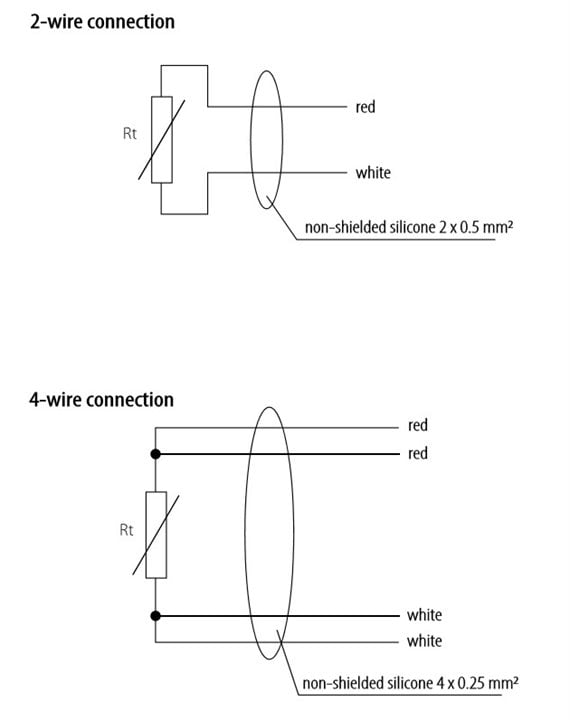

Schéma zapojení
