Optical temperature sensors OTG3 0E, OTR 148Z 1E, OTR 141R 1E

Optical temperature sensors OTG3 0E, OTR 148Z 1E, OTR 141R 1E

Optical temperature sensors OTG3 0E, OTR 148Z 1E, OTR 141R 1E

BBB

--%>

Point temperature sensors based on FBG (Fiber Bragg Grating) structures. They are designed to measure the temperature of gaseous, liquid and solid substances. The maximum temperature range is -50 to 200 °C. These fully dielectric sensors are designed for specialized measurements in highly electromagnetically disturbed environments.

APPLICATION

  • Advanced industrial applications.
  • Power industry (temperature measurement of transformer windings, electric motors, etc.).
  • Automotive (temperature measurement of charging stations, batteries).
  • Avionics, aerospace.

KEY FEATURES

  • Long-term stability, accuracy and repeatability of measurements.
  • Measurement accuracy linear over the entire range of measured temperatures.
  • Large dynamic range, sensors can be located up to several kilometers from the evaluation unit.
  • Completely dielectric sensor – galvanic isolation of the measuring point with the evaluation electronics.
  • Immune to electromagnetic radiation.

ACCESSORIES

  • Interconnecting fibre optic cable between evaluation electronics and sensors.
  • Fibre optic switch.
  • Converter to RS485.


Technické parametry

SYSTEM SPECIFICATIONS

Measuring range  -50 °C až 200 °C
Sensor type FBG (Fiber Bragg Grating)
Number of measuring channels* 4, 7, 10, 13, 16
Measuring period* 3,5 s
Accuracy class
Measurement resolution 0,1 °C
Absolute accuracy over the entire range ± 0,5 °C
Fibre optic interface LC/APC
Power supply 230 VAC / 50 Hz
Input power Up to 42 W
Communication interface** Ethernet (RJ-45), RS-485 (Modbus)
Operating temperature of the evaluation unit 0 °C – 40 °C
Weight of the evaluation unit 1,5 kg
Dimensions230 × 115 × 80 mm
Warranty 1 year

* Depending on the fibre optic switch used and the number of measurement channels.
** Depending on the specific configuration.

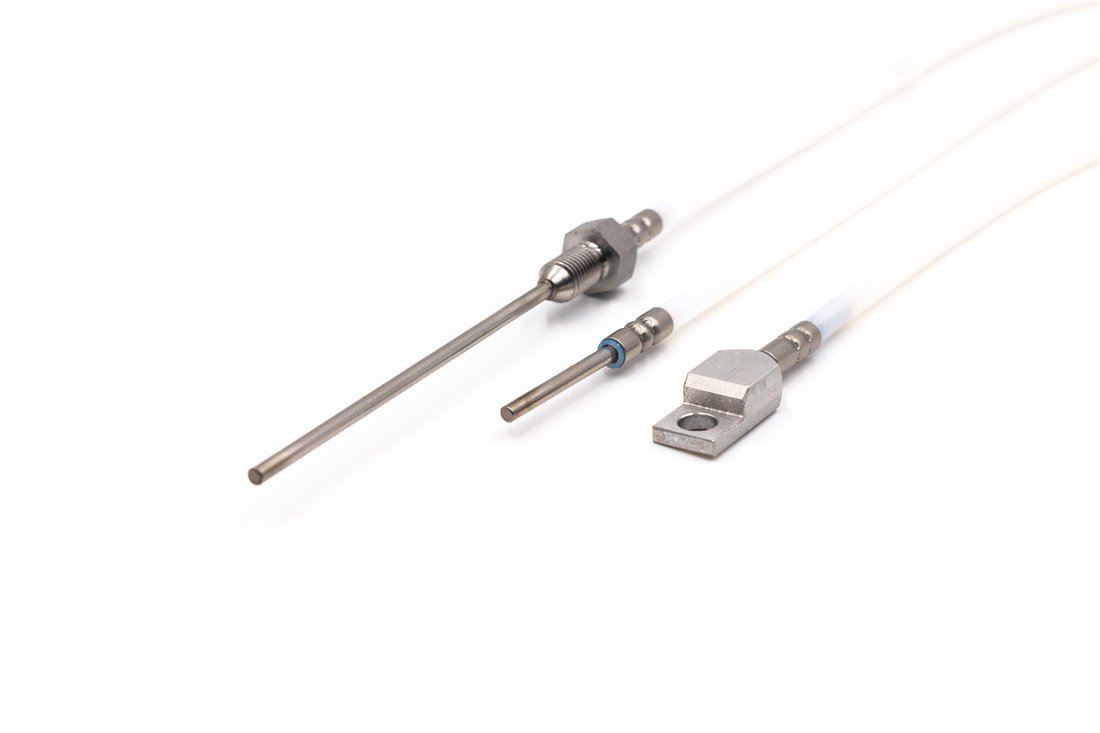

OTG3 0E

Ingress protection IIP 67 according to EN 60529, as amended
Housing material DIN 1.4571, DIN 1.4301 stainless steel
Sensor design Smooth stem
Diametr3 mm
Lengthfrom 30 mm
Lead-in cable length
3 m
Fibre optic connectors FC/APC


OTR 148Z 1E

Ingress protection IIP 67 according to EN 60529, as amended
Housing material DIN 1.4571, DIN 1.4301 stainless steel
Sensor designThreaded
Diametr3 mm
Lengthfrom 40 mm
Thread typeM8
Lead-in cable length
3 m
Fibre optic connectors FC/APC


OTR 141R 1E

Ingress protection IIP 67 according to EN 60529, as amended
Housing material DIN 1.4571, DIN 1.4301 stainless steel
Sensor design Contact sensor
Length55 mm
Lead-in cable length
3 m
Fibre optic connectors FC/APC

The manufacturer issues an EU Declaration of Conformity.
Calibration is performed in the calibration laboratory of SENSIT s.r.o. (according to the requirements of EN ISO/IEC 17025, as amended). It is performed by comparison with calibration standards. Continuity of the standards and working measuring instruments is ensured within the meaning of Section 5 of Act No. 505/1990 on Metrology.
