TR 151
diameter 6 mm, -20 °C to 105 °C

TR 151
diameter 6 mm, -20 °C to 105 °C

TR 151
diameter 6 mm, -20 °C to 105 °C

CONFIGURATOR

CONFIGURE AND REQUEST

21502
__KOUPIT__
__NABIDKA__
__JINY DOTAZ__

BBB

--%>

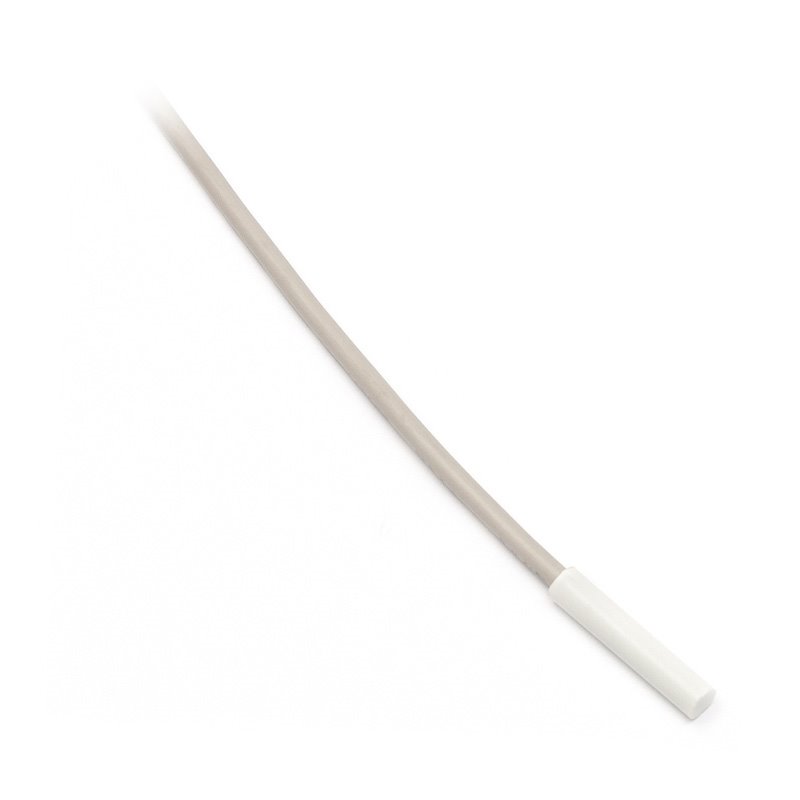

Temperature sensors TR 151 in the plastic case are intended for temperature measurements of gaseous, eventually liquid materials. For long-lasting temperature measurements (especially at the temperatures over 90 °c) there is better to use the sensor with thermowell-combination. The sensors have always plastic polyamid case in which the temperature sensing element is located.

The case diameter of  TR 151 is 6 mm. All types of resistence sensing elements used by company SENSIT s.r.o. can be used. The wiring of the sensors is always 2-wire.

Material of the case has medium resistivity to atmospheric aging, it resists oils, fuels, hydraulic liquids, alifatic and aromatic hydrocarbons, esters, ketons and slight alcalis. Material is not resistant to acids, strong alcalis and chlorinated hydrocarbons.

ACCESSORIES

DECLARATION, CERTIFICATION, CALIBRATION

  • Manufacturer provides  EU Declaration of Conformity.
  • Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard, as amended) or in an Accredited laboratory.



Technické parametry

Sensor typeTR 151
Measuring range
-20 to 105 °C (can be limited by the type of cable, determine in documentation)
Type of sensing element*all types
(Pt 100, Pt 1000, Ni 1000, Ni 10000,Ni 2226=T1, NTC, PTC, KTY,
TSiC, DALLAS, TC K, TC J, TC T and so un)
Ingress protectionIP 67 in accordance with EN 60529, as amended
Case materialon the base of POLYAMIDE
Diameter of the case6 mm
Length of case L30 mm
Lead-in cablePVC unshielded 2 x 0.35 mm2 up to 105 °C
PVC shielded 2 x 0.25 mm2 up to 80 °C
Wire resistance0.105 Ω for 1 m of cable for 2-wire connection PVC up to 105 °C
0.159 Ω for 1 m of cable for 2-wire connection PVC up to 80 °C
Time responseτ0.9 ≤ 75 s (in flowing water > 0.2 m.s-1)
Weight0.03 kg for 1 m length

*) Certain technical specifications of thermocouple sensors (lead wires, IP rating, etc.) may differ with different types.
Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

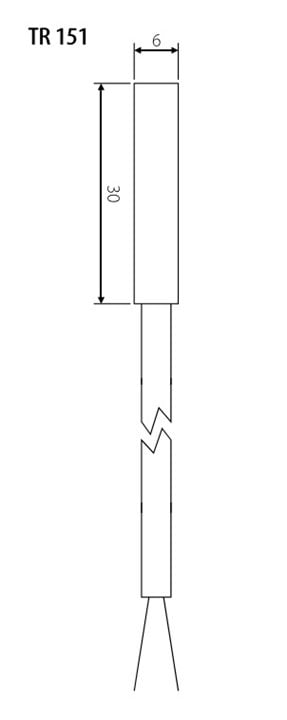

Rozměrový náčrt

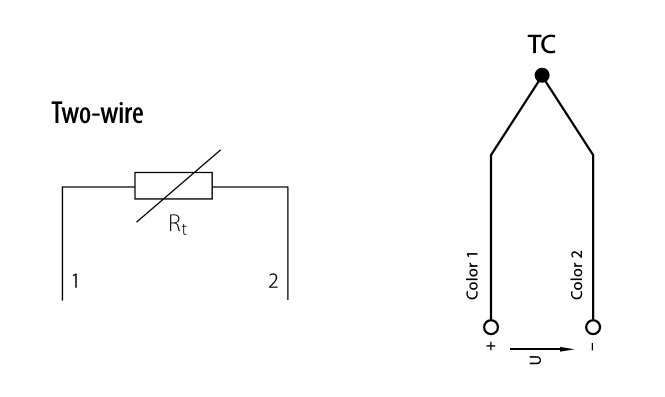

Schéma zapojení

Modifikace

  • posibility of encasing non-standard temperature sensing elements (DALLA, TSic, KTY, SMT, etc.)
  • accuracy class A (with the exception sensors Ni 10000/5000, Ni 10000/6180, T1 = Ni 2226, thermistor NTC 20 kΩ)

Soubory ke stažení

K31.04en.pdf K31.04en.pdf
