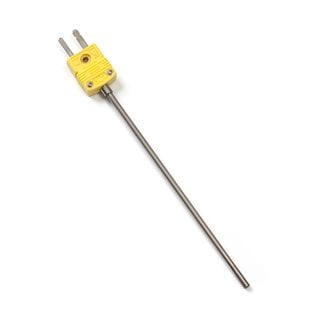

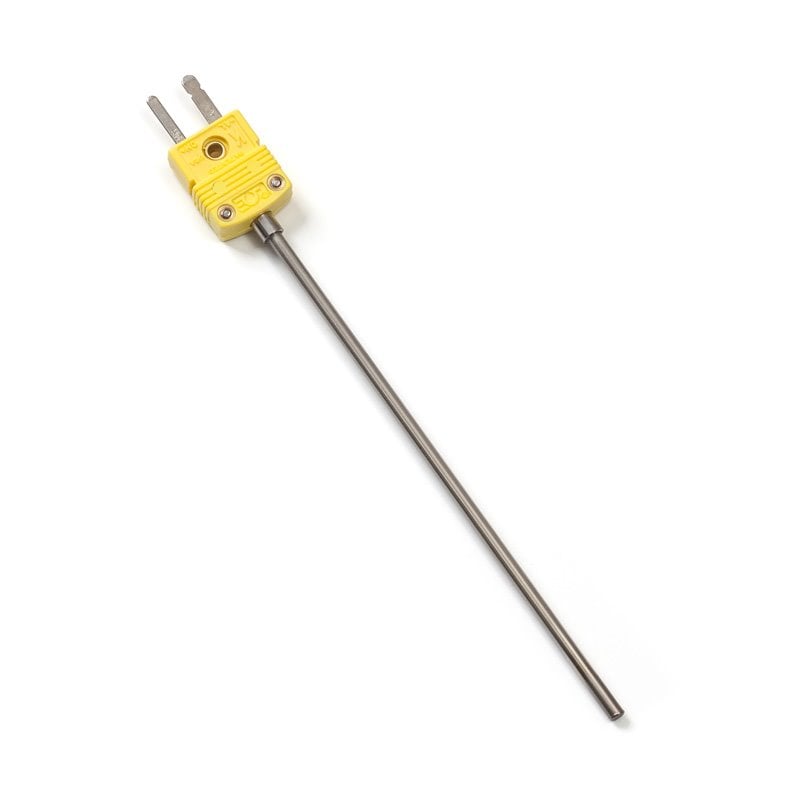

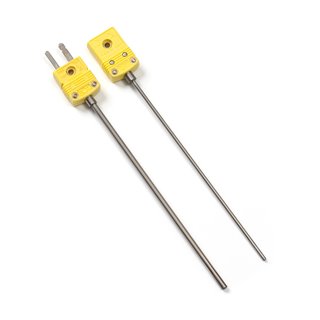

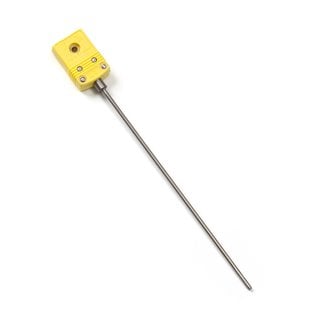

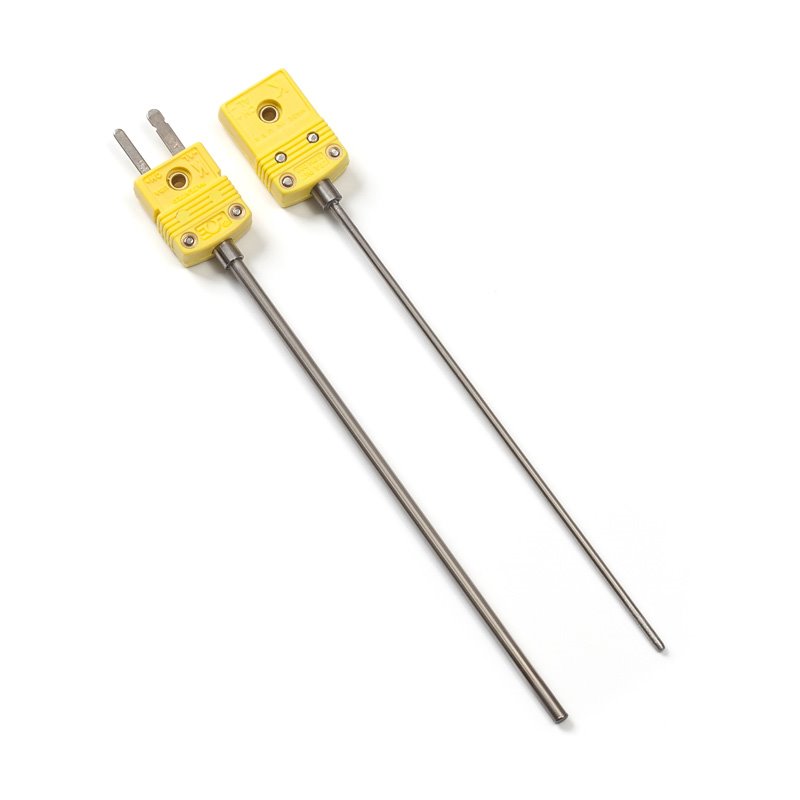

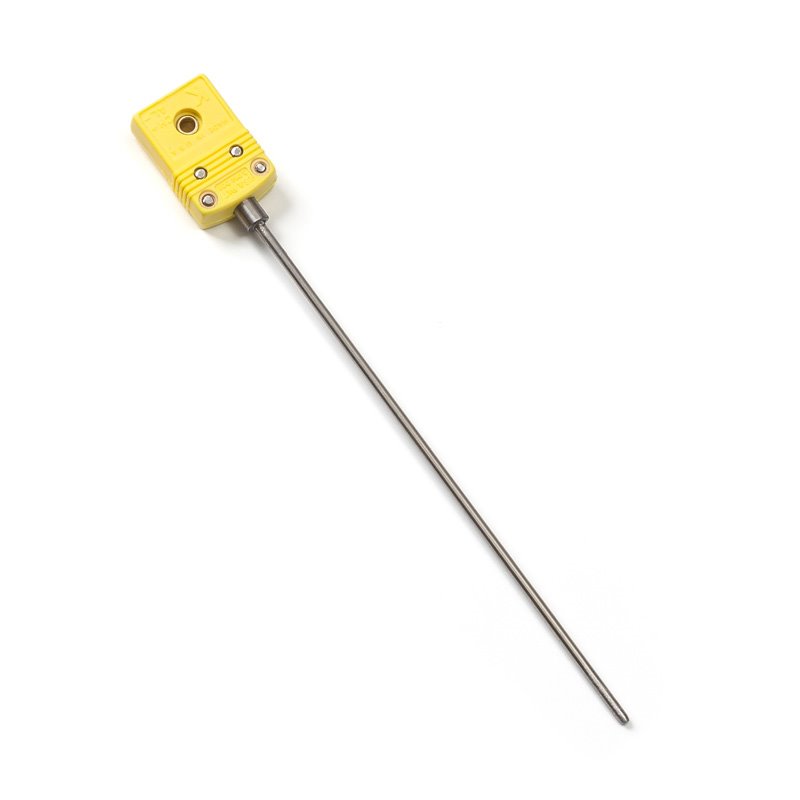

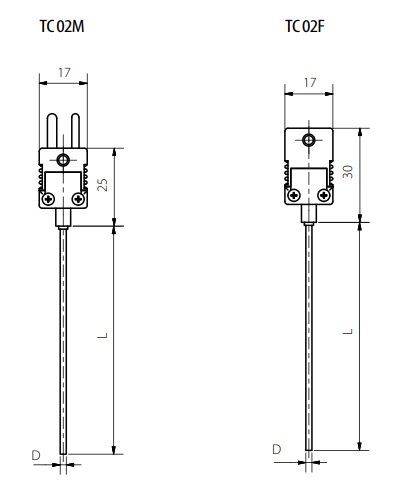

These thermocouple temperature sensors with a connector MINI TC 02F and TC 02M are designed for temperature measurements of gaseous or liquid substances. Temperature range is up to 1 100 °C depending to the thermocouple type and to the production technology used. The temperature sensors with a connector consist of a thermocouple and connector, which is an integral part of the case. The temperature sensors with a connector meet ingress protection IP 50 in accordance with EN 60529, as amended.
The thermocouple temperature sensors with a connector are intended to be used in operation in chemically non-aggressive environment.
ACCESSORIES
- connectors
- screw with collet or cutting rings – if different lengths of stem immersion of the temperature sensor are set
DECLARATION, CERTIFICATION, CALIBRATION
- Manufacturer provides EU Declaration of Conformity.
- Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard, as amended) or in an Accredited laboratory.
